Danfoss iC7 Series Design Guide

e30bh470.10
AFE
INU
INU
INU
AFE
2
2
3
3
2
3
32
3
3
3
3
3
2 2
3
3
3
3
3
M
M
G
M
A
B
C
D
C
D

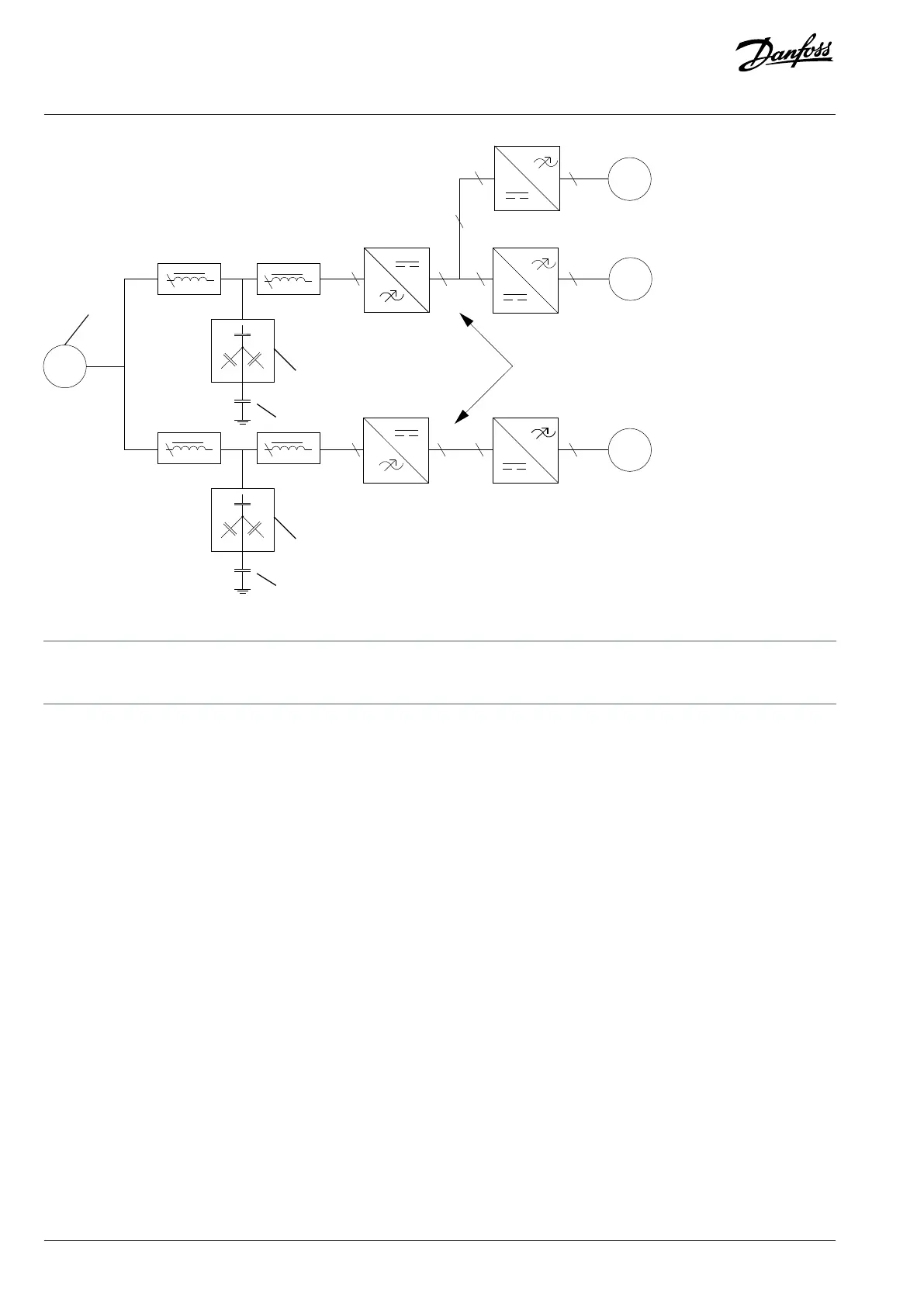

Figure 70: AFE Modules in IT System
A Generator, floating B Separate DC links
C Filter capacitors D Ground capacitor/capacitors on the LC Filter side
76 | Danfoss Drives Oy © 2024.03 AJ475942178716en-000101 / 172K2848A
Design Guide | iC7 Series Liquid-cooled System Modules
