Design Guide | iC7 Series Liquid-cooled System Modules
1
2
3
e30bi008.10

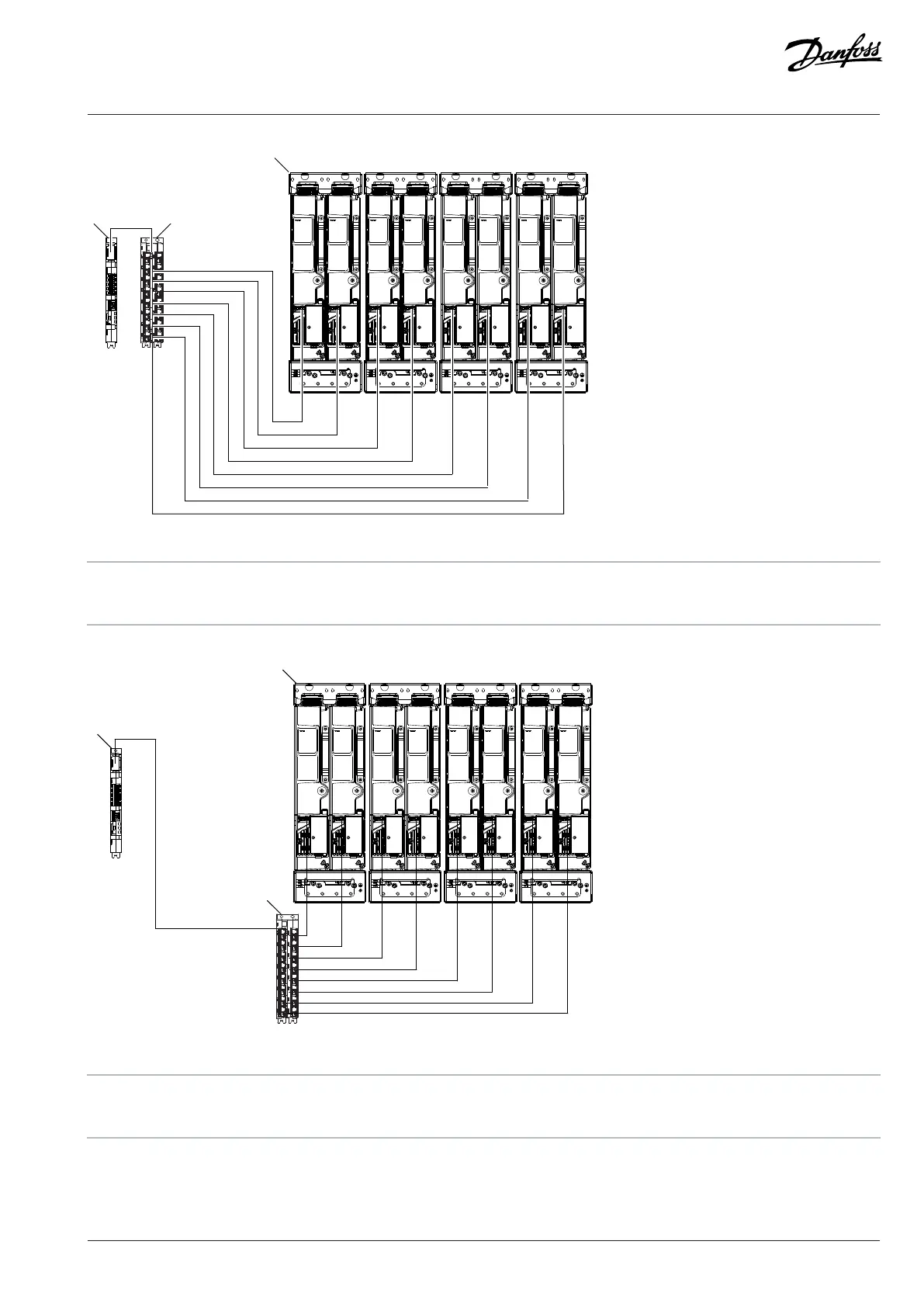

Figure 101: Example Control Connection with a Star Coupler Board: 8 Power Units in Parallel
1 Control board 2 Star coupler board
3 Maximum 16 power units
1
2
3
e30bi153.10
Figure 102: Example Control Connection with a Star Coupler Board: 8 Power Units in Parallel, Star Coupler Board near the Power Units
1 Control board 2 Star coupler board
3 Maximum 16 power units
