Ethernet | User Sockets
Reference Manual 113
Failure Bitmap Size
Select the size of the Failure Bitmap from the drop-down; options are Variable, or
1-32.

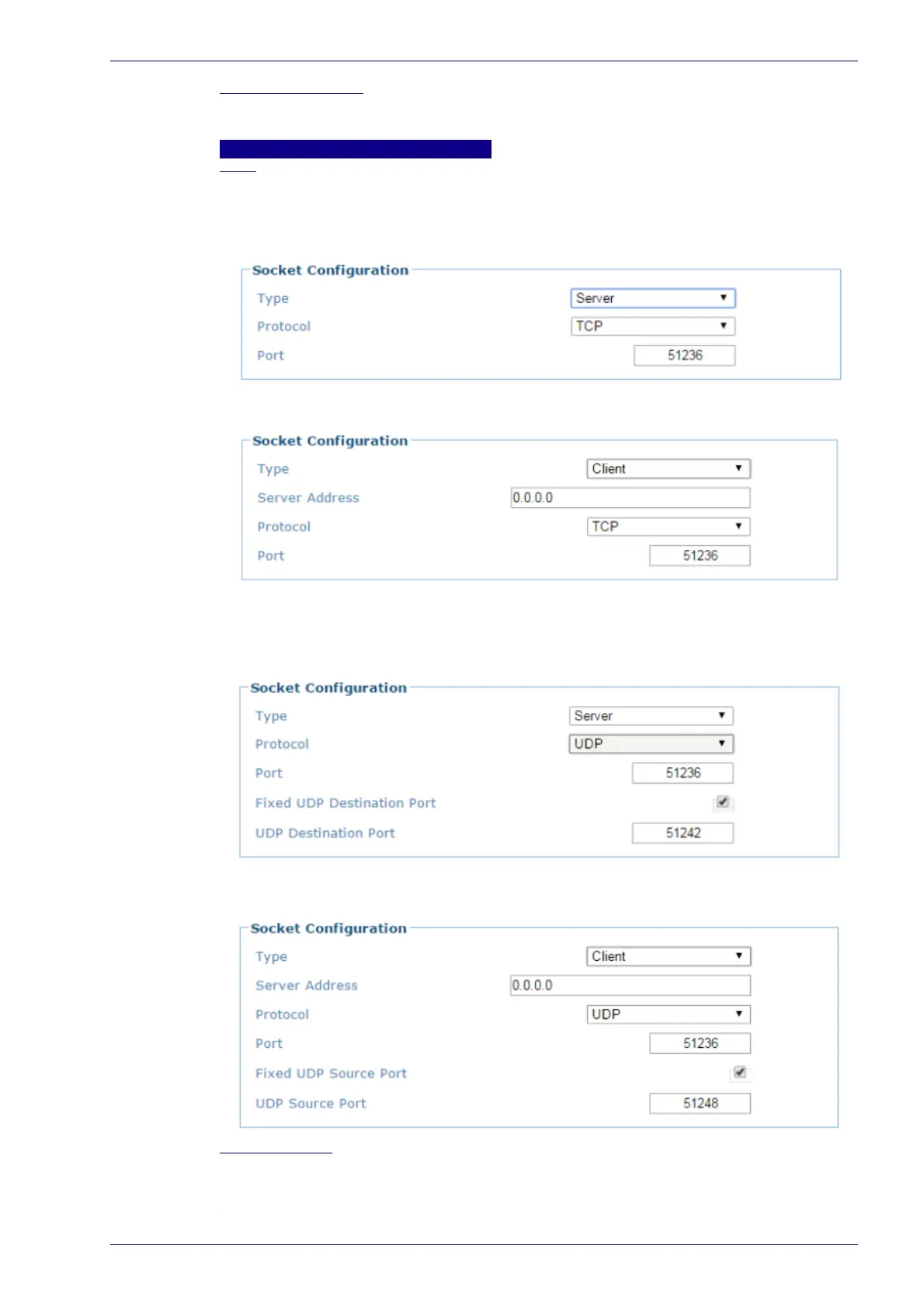

Socket Configuration
Type
Select Server or Client from the drop-down list to define the type of the socket:
When the Protocol selected is TCP (see below):
Server: The station waits for connections and can communicate with a maximum of
3 clients simultaneously.
Client: The station tries a connection towards the server.
When the Protocol selected is UDP (see below):
Server: Special Datalogic mode in which the station waits to receive a message
(content of message does not matter), then responds with UDP host messages to
that client. You must enter a port number, and if using a fixed UDP destination
port, you must enter the number for that port as well.
Client: Choose this option for standard UDP protocol. You must define the Server
Address that will be receiving the UDP messages and port. If using a fixed UDP
source port, you must enter the UDP source port number.
Server Address
Enter the IP address of the server to which the client tries to connect. This
parameter is available only when the socket is configured as a Client.
