Barcode Scanning Features

200

DS8110 Barcode Scanner

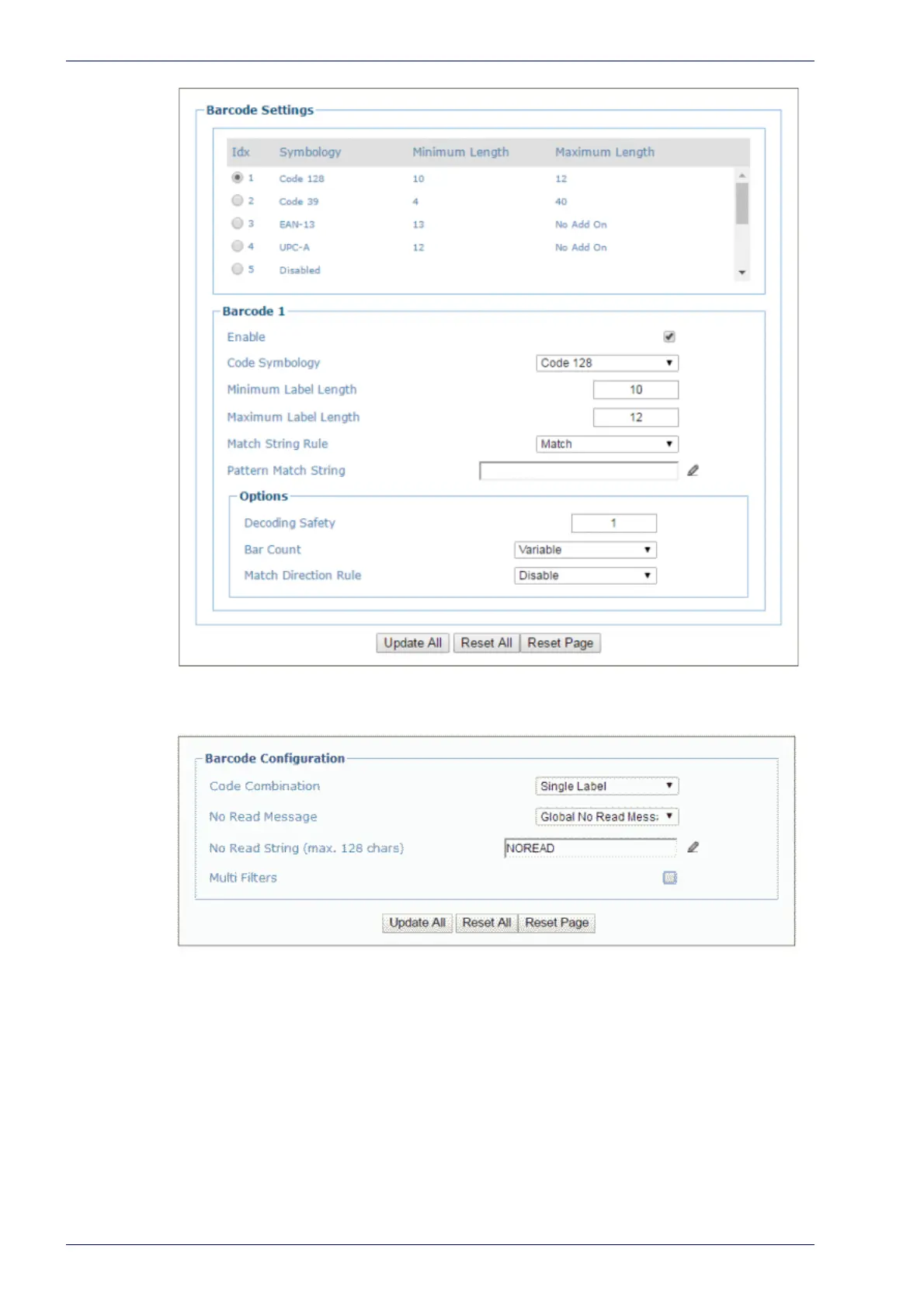

15. in Modify Settings | Global Settings | Barcode Configuration select single,

multiple, or logical combination of labels, based on your application.

16. Move through the menu tree to configure Serial Ports, Ethernet, and Mes-

saging settings based on your a

pplication requirements.

17. In Global Settings | Messaging | Message Format cha

nge the Message Tx

Selection to After Reading Phase OFF.
