5. Measure the distance for Z from the conveyor bed to the barcode, and
enter that distance in the first box under
Z-Coord (mm). Since the bar-
code is laying on the conveyor bed, the value should be "0."
6. Click Calibrate 1. PackTrack data is displayed for the first code.

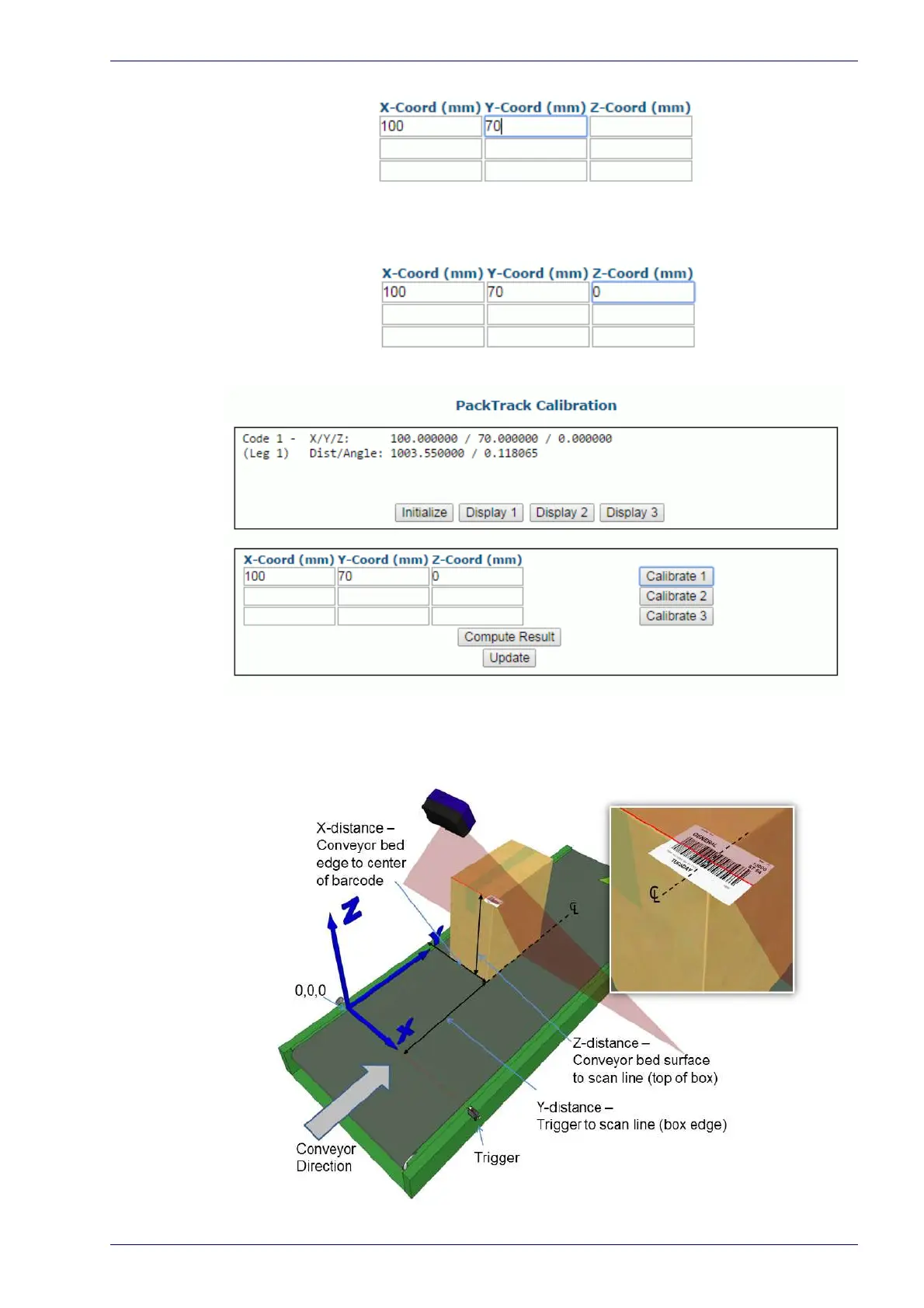

7. Next, place a barcode overhanging the top corner of the tallest box speci-
fied for your scanning system as shown in the illustration below. Center one
edge of th
e box on the conveyor and align the other edge with the laser line
as shown.
