Barcode Scanning Features
214
DS8110 Barcode Scanner

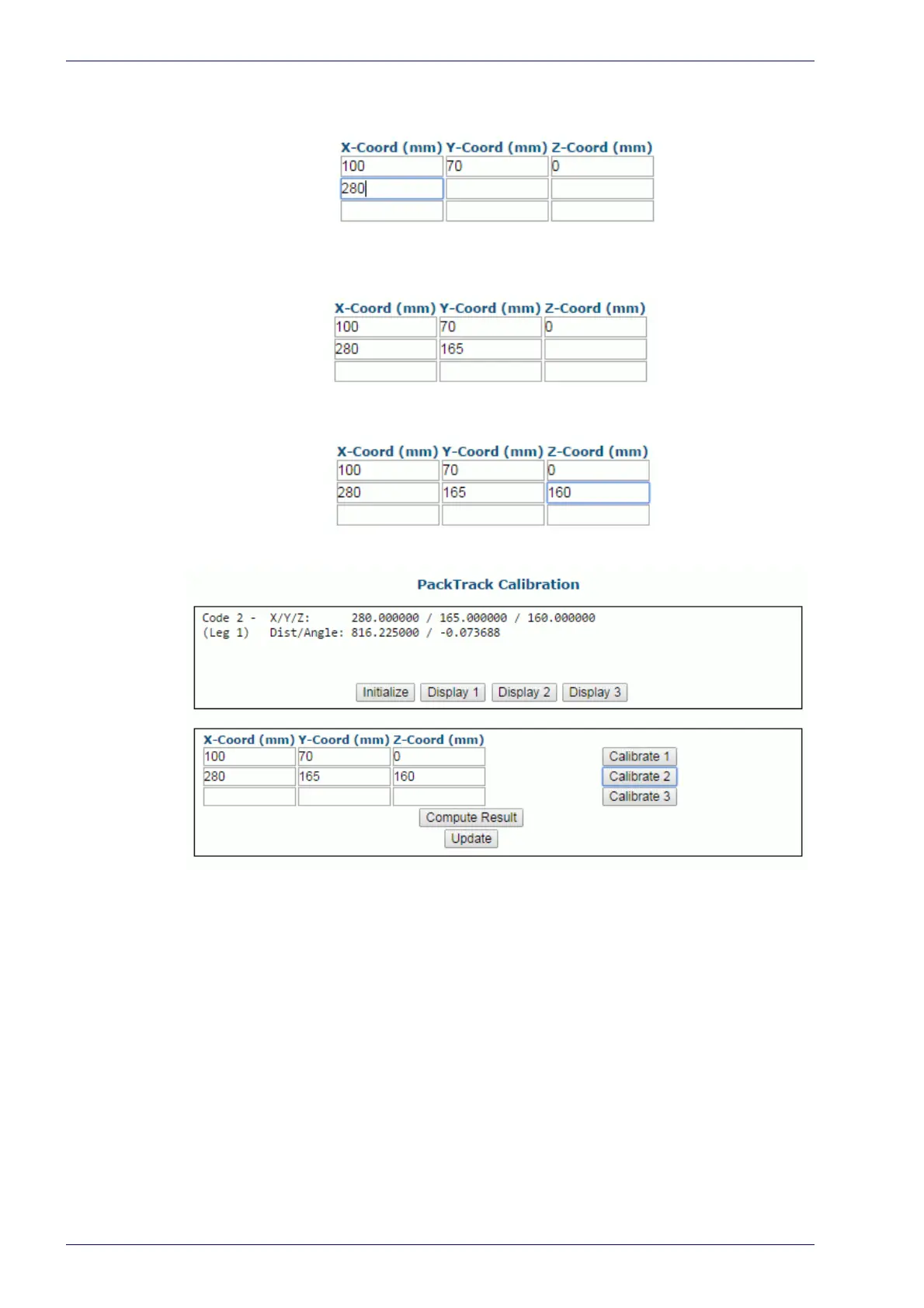

8. Measure the distance for X from the left edge of the conveyor bed to the
center of the barcode (centered side edge of box), and enter that distance in
the first box under X-Coord (mm).
9. Measure the distance for Y from the trigger (PS line) to the barcode scan-
ner's laser line on the barcode (back edge of box), and enter that distance in
the first box under Y-Coord (mm)
.
10. Measure the distance for Z from the conveyor bed to the barcode (top of
box), and enter that distance in the first box under
Z-Coord (mm).
11. Click Calibrate 2. PackTrack data is displayed for the second code.
