User Interface
58 DX8210 Barcode Scanner
Wrong String Tx
Select the check box to enable the transmission of the Wrong String (Non-Valid
String) message. This message will be sent if code data does not match verified
code entered.
Wrong String
Click to activate the Text Entry Tool and enter the string text to be used when
the wrong code is detected.

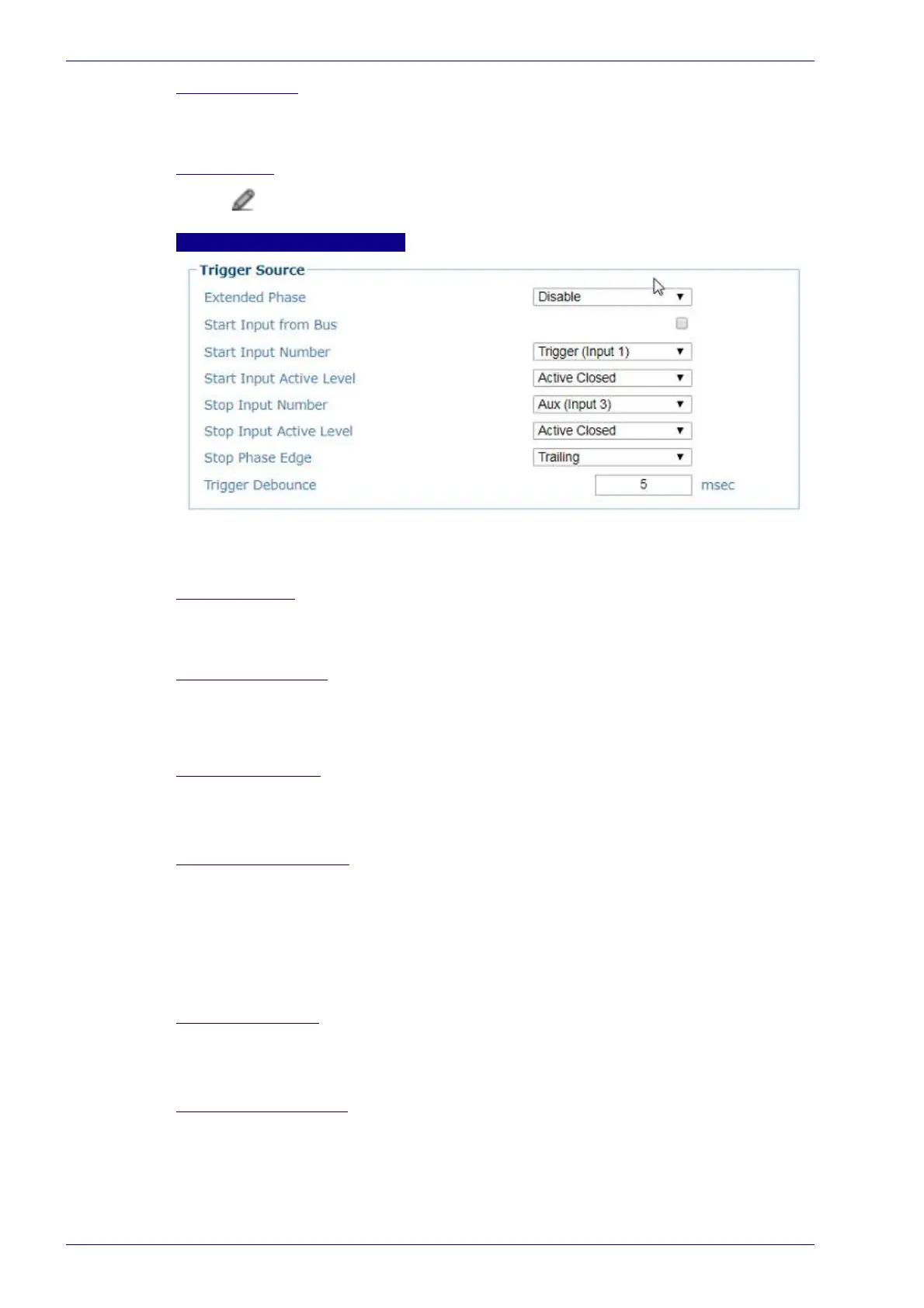

Trigger Source: 2 Inputs Used
The reading phase is defined by 2 inputs. It starts when the Start Input is activated
and stops when the Stop Input is deactivated (unless the Extended Phase is
enabled).
Extended Phase
Available only for the On Line/2 Inputs option. It allows the Stop Input to end the
reading phase only if the Start Input is also deactivated. Select Disable or Enable
from the drop-down.
Start Input from Bus
if checked, allows the Fieldbus Master to drive the Reading Phase. For Profinet or
Profibus interfaces, it allows the Fieldbus Master to drive the reading phase via bit 7
in Byte 0 (LSB) of the Output Area. For EtherNet/IP, it allows the EtherNet/IP Client
to drive the reading phase via bit 7 in Byte OutputBits of the DL_OutputStruct.
Start Input Number
Select the Input Number from the selections available in the drop-down list.
Options are; Trigger (Input 1), Aux (Input 3), or I/O 4 (Input 4)
This option defines the numbered input that will start the trigger cycle.
Start Input Active Level
Select Active Open or Active Closed from the drop-down list.
Active Open: The input is active when there is no current flowing through IN pins.
The input from the trigger source is normally closed. The scanner goes into trigger
mode when the input source is opened.
Active Closed: The input is active when current flows through IN pins. The input
from the trigger source is normally opened. The scanner goes into trigger mode
when the input source is closed.
Stop Input Number
Select the Input Number from the selections available in the drop-down list.
Options are; Trigger (Input 1), Aux (Input 3), or I/O 4 (Input 4)
This option defines the numbered input that will stop the trigger cycle.
Stop Input Active Level
Select Active Open or Active Closed from the drop-down list to define the active
state of the input.
Active Open: The input is active when there is no current flowing through IN pins.
The input from the trigger source is normally closed. The scanner goes into trigger
mode when the input source is opened.
