Operating Mode
Reference Manual 63
In addition to the inherent content and code length comparison, this parameter
compares the Z coordinate code position. If the current code being read is identical
to any code contained in the list by: content, length and Z coordinate code position,
the current code is discarded. If not, the current code is accepted and added to the
list in the first position; the remaining codes in the list are shifted. If the list is full
the oldest code in the list will be flushed.
Continuous Threshold (number of scans)
Enter an N number of scans without a code allowed in order to assure code
identification in the reading zone. Enter a value from 10 to 32665.
See “Encoder Settings” on page 66

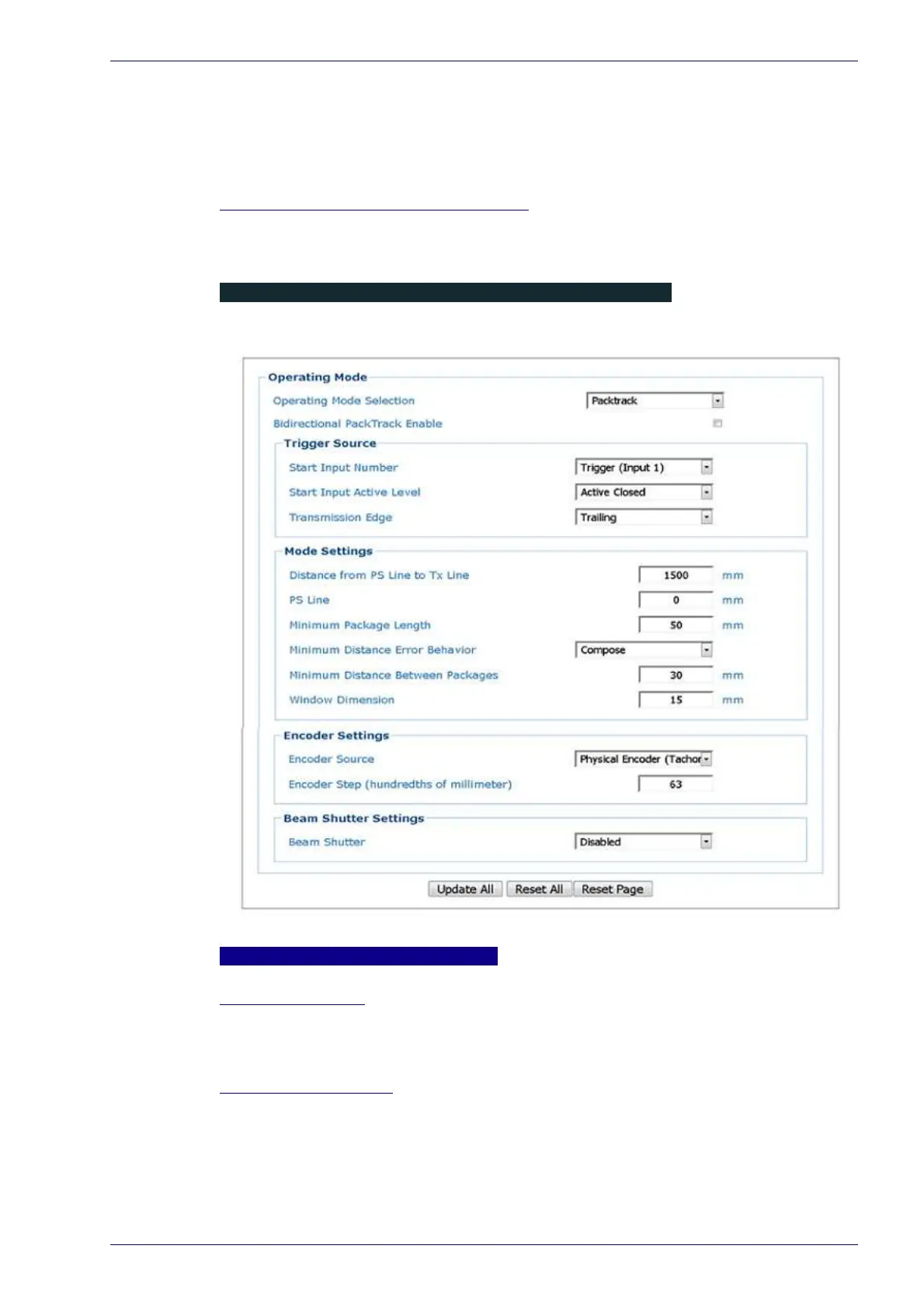

OPERATING MODEL: PACKTRACK
Refer to PackTrack in the DS8110 and DX8210 Reference Manuals for physical
PackTrack installation procedures.
Trigger Source
Select the source of the trigger from the drop-down list.
Start Input Number
Select the Input Number from the selections available in the drop-down list.
Options are; Trigger (Input 1), Aux (Input 3), or I/O 4 (Input 4)
This option defines the numbered input that will start the trigger cycle.
Start Input Active Level
Select Active Open or Active Closed from the drop-down list.
Active Open: The input is active when there is no current flowing through IN pins.
The input from the trigger source is normally closed. The scanner goes into trigger
mode when the input source is opened.
Active Closed: The input is active when current flows through IN pins. The input
from the trigger source is normally opened. The scanner goes into trigger mode
