Transmission Edge
Select Trailing or Leading from the drop-down list to define the signal edge of the
stop input used by the scanner as reference for ending the reading phase:
Trailing: The reading phase ends when the pack has completely passed by
the stop input.
Leading: The reading phase ends as soon as the stop input detects the front
edge of the pack.
Mode Settings

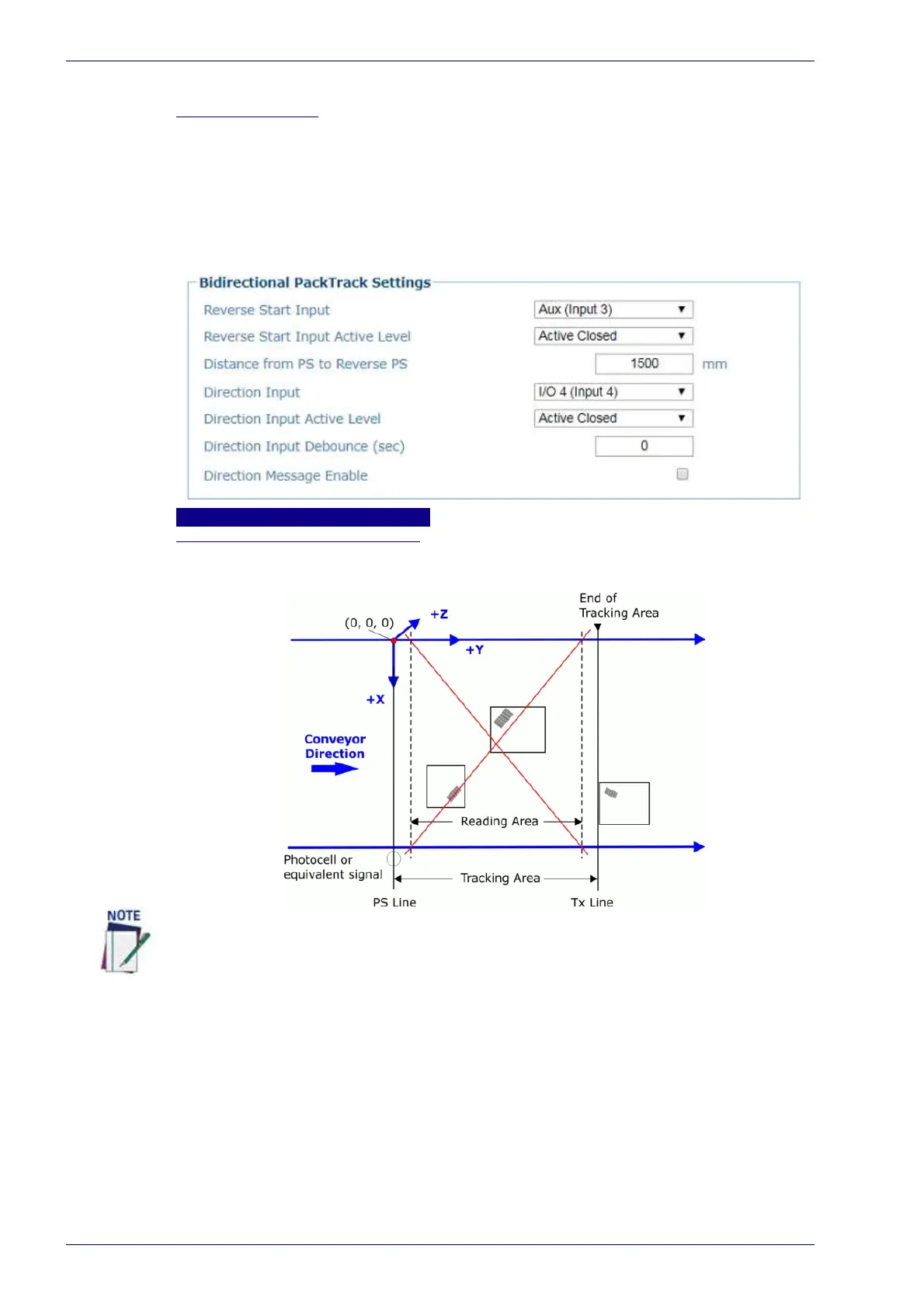

Distance from PS Line to Tx Line
Enter the distance along the Y axis from the PS (photoelectric sensor) to the TX
Line (transmit).
Tracking starts 10 cm [4 inches] before and stops 10 cm [4 inches] after the Reading
Area in order to ensure the barcode is assigned to the correct package.
