DS8110 Barcode Scanner
Standard Multi Label Global No Read Message

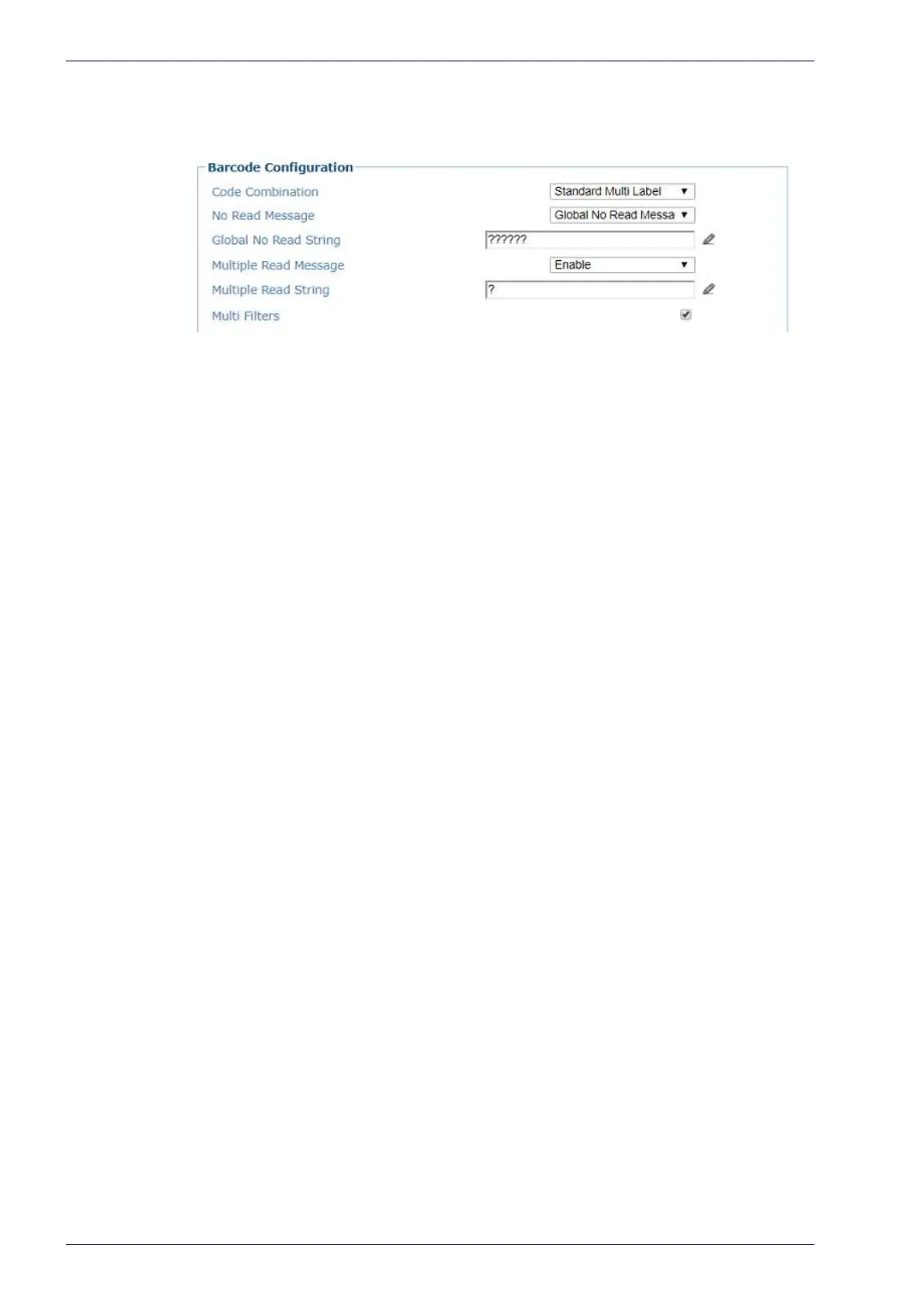

Again the same four bar codes have been enabled in the Barcode Settings Table,
and the Standard Multi Label Code Combination has been selected. However this
time we select a Global No Read Message.
All 4 codes must be read during the trigger cycle.
STX0027110002054872550918034976966,1234567890123,0467,675898767566#CR#LF
If all four codes are not read a single No Read message is transmitted:
#STX???????#CR#LF
Logical Combination Local No Read
As before four codes have been enabled. Four code groups have been defined
and a logical combination rule states that code 1 and 2 and 3 and 4 must be
read. Each one of the four codes is assigned to its own group. Local No Read
Message is selected and a no read string is defined for each code. In this exam-
ple the second code has not been read. Each group contains 1 poss
ible code.
The transmitted message might look like this:
STX0027110002054872550918
034976966,?,0467,675898767566#CR#LF
Th
is identifies that a no read message for the 2nd group, 2nd code has occurred.
Code Collection Global No Read
3 of the 4 codes enabled are read. Any number of codes read is transmitted.
Only if all of the codes are not read is there a no read and it must be a Global No
Read. The transmitted message might look like this:
#STX0027110002054872550918034976966,1234567890123,675898767566
#CR#LF
To Next Page
