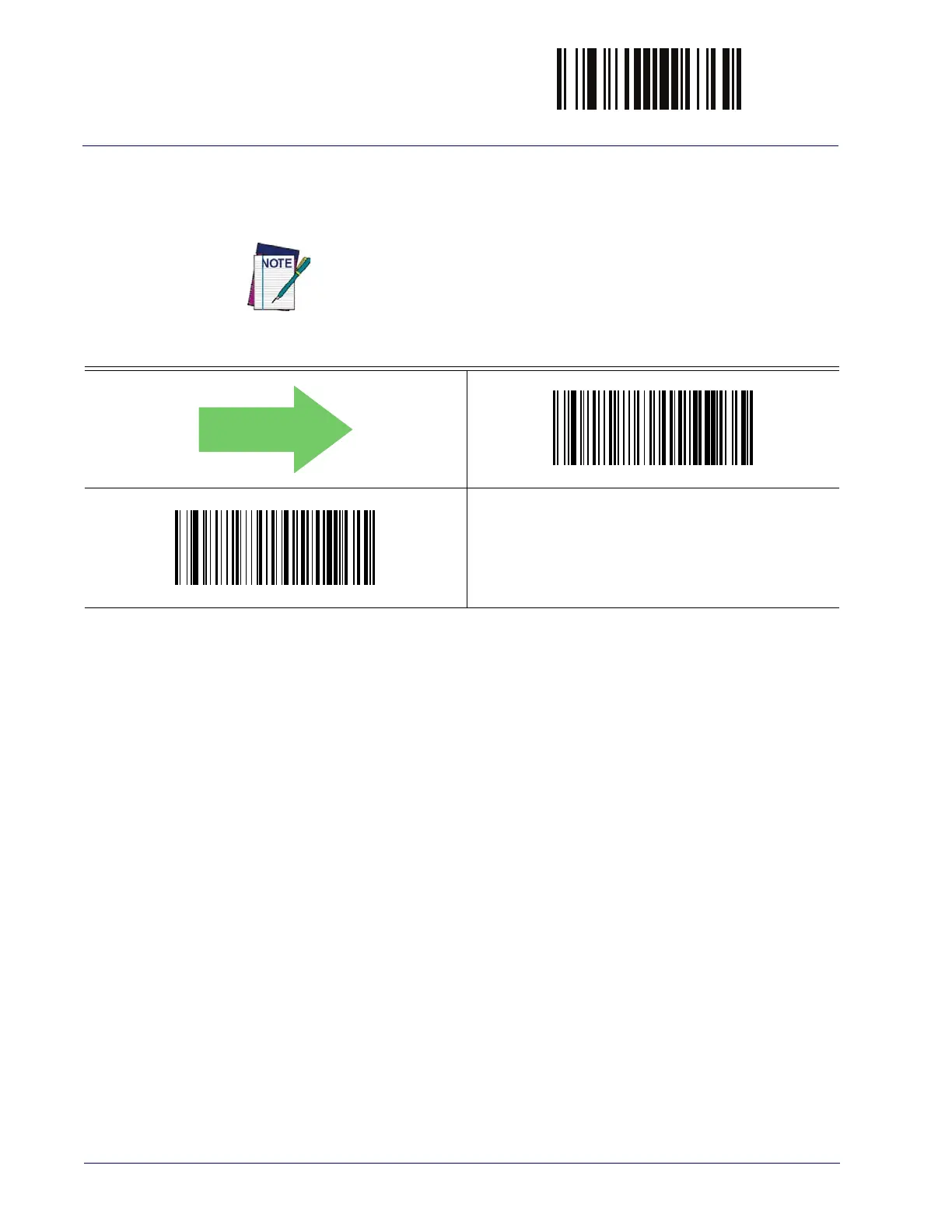

GTIN Formatting ENTER/EXIT PROGRAMMING MODE

116

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

GTIN FORMATTING

This feature enables/disables the ability to convert UPC-E, UPC-A, EAN 8, and EAN 13 labels

into the GTIN 14-character format.

DEFAULT

GTIN Formatting = Disable

GTIN Formatting = Enable

If add-on information is present on the base label prior to the con-

version taking place, the add-on information will be appended to

the con

verted GTIN label.

Default Chapter3
