Configuring the Base Station
Product Reference Guide
21
Changing the Base Station Position
The base station is configured by installing one of two sets of mechanical parts that come with
the cordless kit. The default mounts (shown below) provide three options: vertical (wall)
mounting, standing (45°), or horizontal mounting with a higher mechanical retention of the
scanner. Use the other mounts only for horizontal mounting, with lower retention of the
scanner. The different parts may be interchanged to customize retention preferences.
A tool such as a rigid pen or a flat screwdriver can be used to change the
mounts. Do not allow it to touch the contacts.

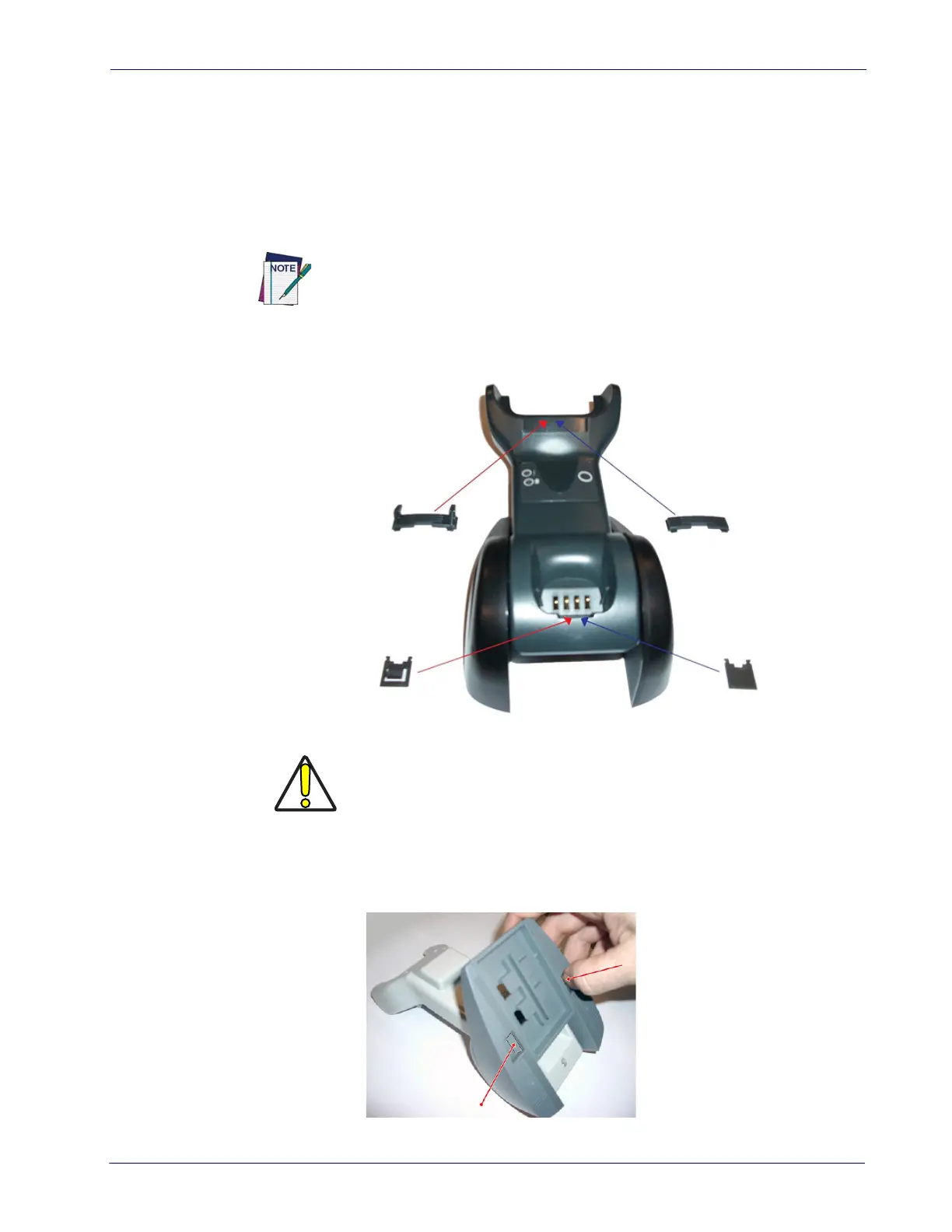

1. Insert the appropriate parts for the desired base station position, as shown below.
Horizontal
Only
Standing,
or Vertical
Horizontal
CAUTION
To ensure best contact and performance, do not intermix the
parts of the two different mount sets.
2. Using your thumbs, push open the plastic tabs on the bottom of the base to free the wing
holders.
