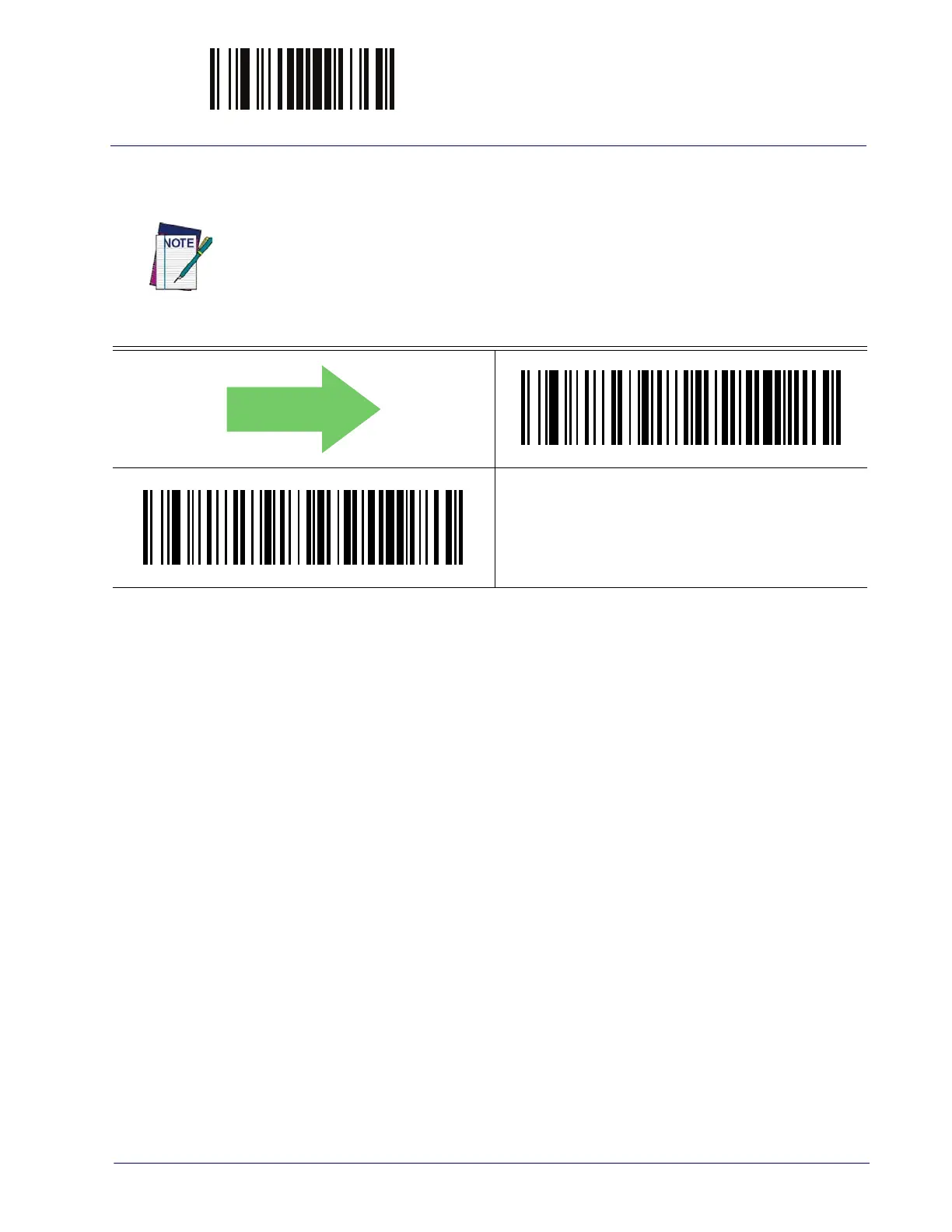

ENTER/EXIT PROGRAMMING MODE ISBT 128 Concatenation Mode

Product Reference Guide 163

ISBT 128 Concatenation Mode

Specifies the concatenation mode between Static and Dynamic.

DEFAULT

ISBT 128 Concatenation Mode = Static

ISBT 128 Concatenation Mode = Dynamic

This option is only valid when

ISBT 128 Concatenation

is enabled (see page 162).
