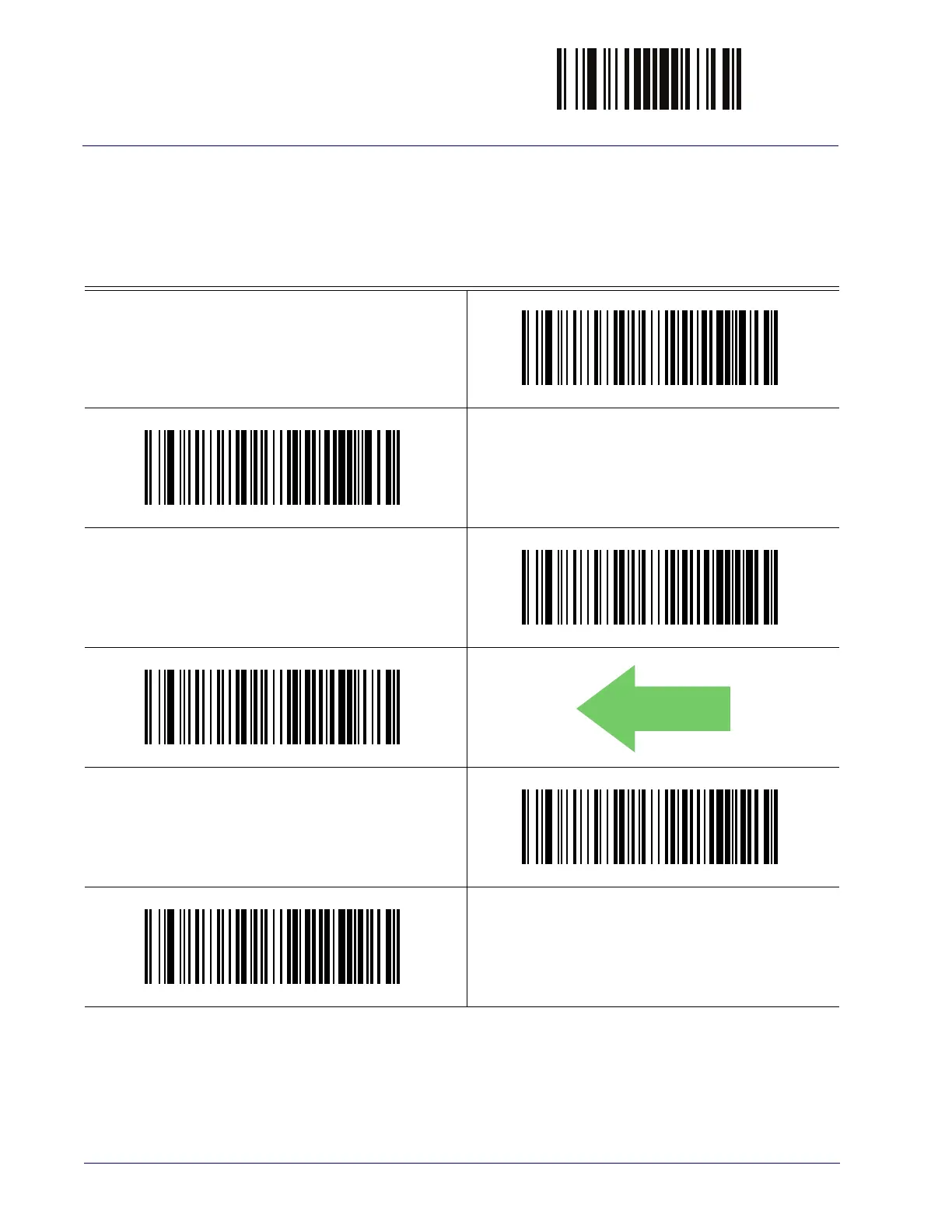

Code 93 ENTER/EXIT PROGRAMMING MODE

234

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

Code 93 Decoding Level

Specifies the decoding level for Code 93. Decoding Levels are used to configure a barcode

symbology decoder to be very aggressive to very conservative depending on a particular

customer’s needs. See page 302 for more information on this feature.

Code 93 Decoding Level = Disable

Code 93 Decoding Level = 1 (Conservative)

Code 93 Decoding Level = 2

Code 93 Decoding Level = 3

DEFAULT

Code 93 Decoding Level = 4

Code 93 Decoding Level = 5 (Aggressive)
