Datalogic 2 of 5 ENTER/EXIT PROGRAMMING MODE
194 Gryphon™ I GD4100/GM4100/GBT4100/L GD4300
Datalogic 2 of 5 Set Length 1
This feature specifies one of the barcode lengths for Datalogic 2 of 5 Length Control. Length 1 is
the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length
Mode. The length includes the barcode’s check and data c
haracters. The length can be set from
2 to 50 characters in increments of two.
Table 14 provides some examples for setting Length 1. See page 302 for detailed instructions on
setting this feature.

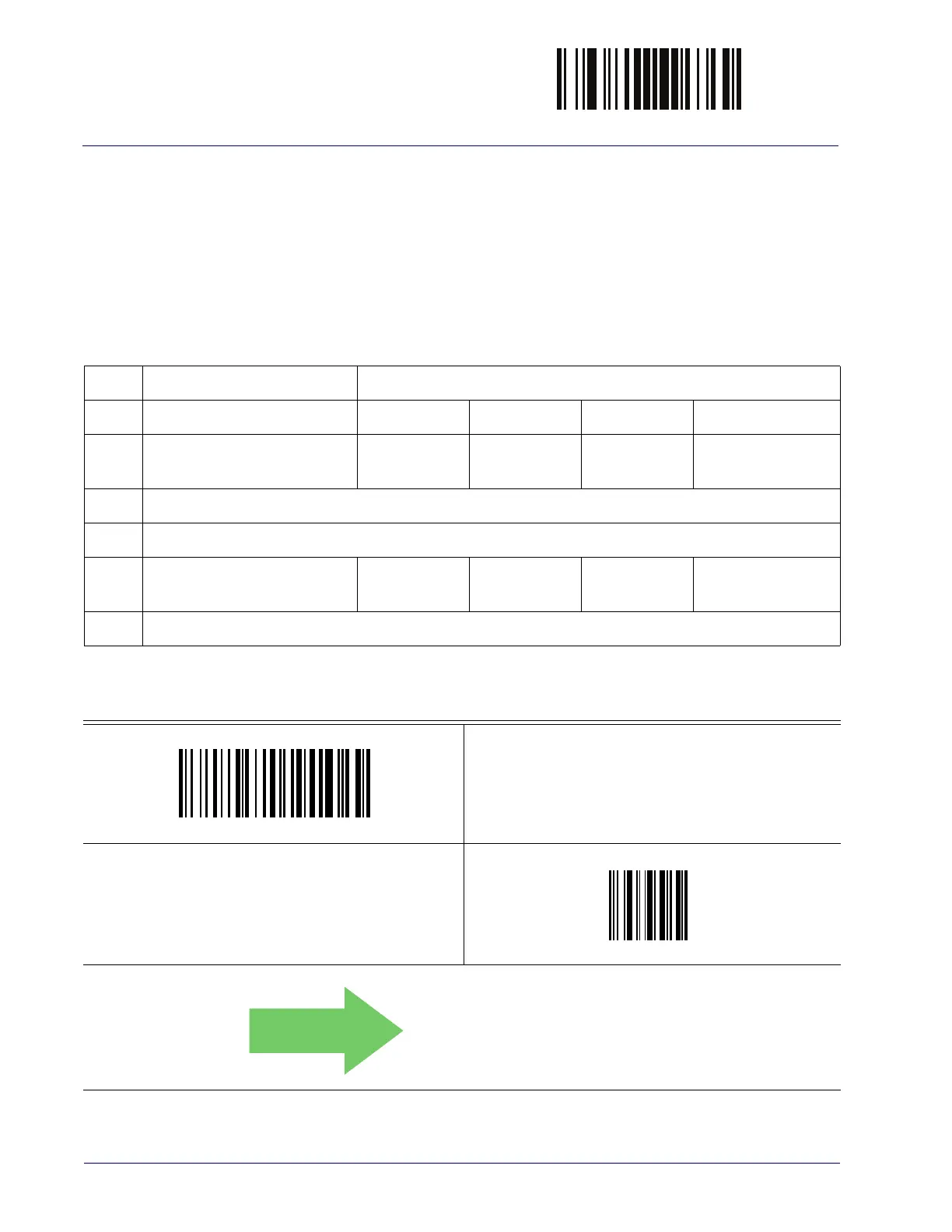

Table 14. Datalogic 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
2 Characters 6 Characters 14 Characters 50 Characters
2
Pad with leading zeroes to
yield two digit
s
02 06 14 50
3 Scan ENTER/EXIT PROGRAMMING MODE
4 Scan SELECT Datalogic 2 of 5 LENGTH 1 SETTING
5
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘2’ ‘0’ and ‘6’ ‘1’ and ‘4’ ‘5’ AND ‘0’
6 Scan ENTER/EXIT PROGRAMMING MODE
Select Datalogic 2 of 5 Length 1 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
save the en
try string. You can then start again at the begin-
ning.
CANCEL
DEFAULT
06 = Length 1 is 6 Characters
