Codablock F ENTER/EXIT PROGRAMMING MODE
168 Gryphon™ I GD4100/GM4100/GBT4100/L GD4300
Codablock F Set Length 2
This feature specifies one of the barcode lengths for Codablock F Length Control. Length 2 is the
maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length
Mode. Length includes the barcode’s check, data, and ful
l-ASCII shift characters. The length
does not include start/stop characters.
Table 7 provides examples for setting Length 2. See page 303 for detailed instructions on setting
this feature.

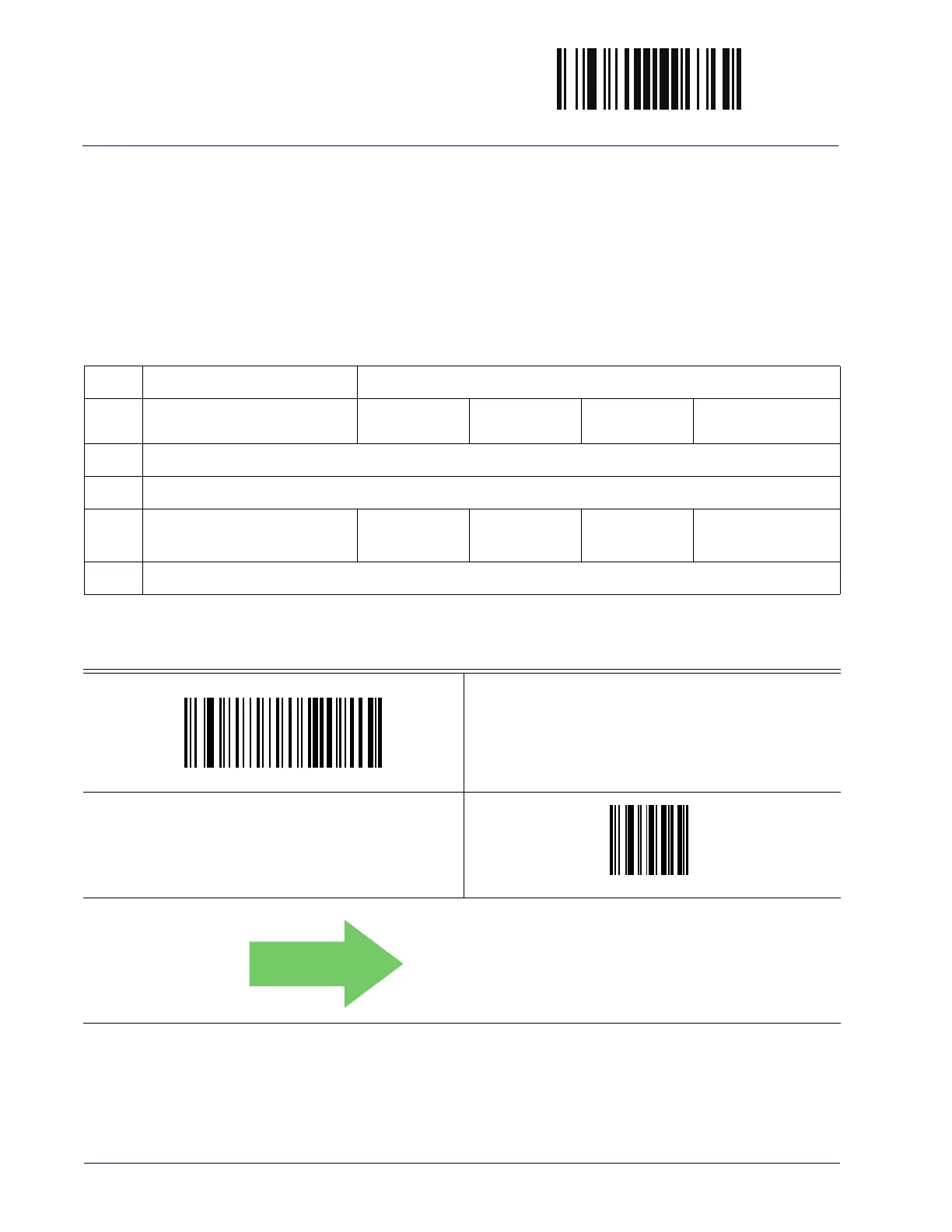

Table 7. CODABLOCK F Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABLOCK F LENGTH 2 SETTING
4
Scan Three Characters From
Appendix D, Keypad
‘0’, ‘0’ and ‘0’ ‘0’, ‘0’ and ‘7’ ‘0’,‘1’ and ‘5’ ‘0’,‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codablock F Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort and not save the
entry string. You can then start again at the beginning.
CANCEL
DEFAULT
100 = Length 2 is 100 Characters
