To Next Page

To Previous Page

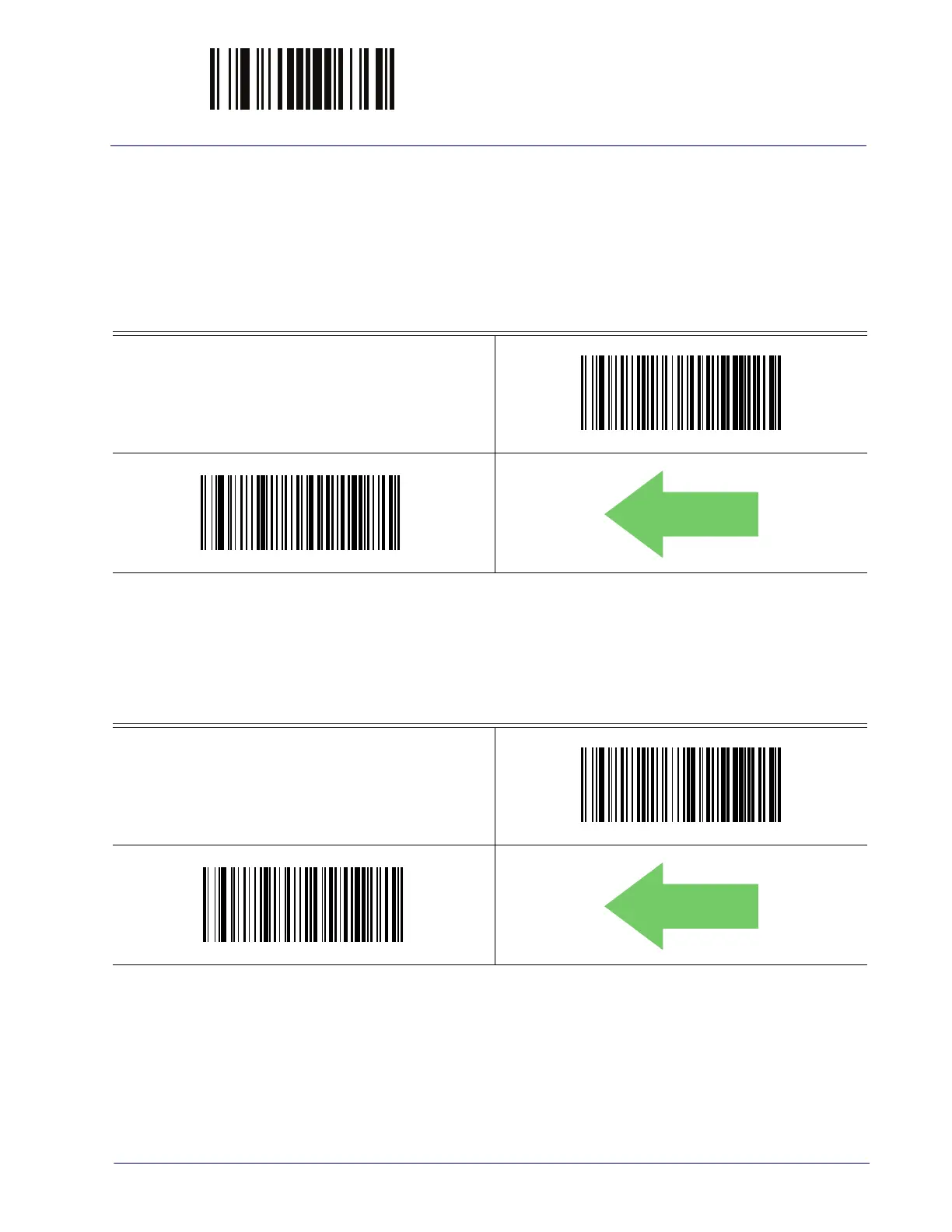

ENTER/EXIT PROGRAMMING MODE EAN 8 Enable/Disable

Product Reference Guide 121

EAN 8 (JAN 8)

The following options apply to the EAN 8 (Jan 8) symbology.

EAN 8 Enable/Disable

When disabled, the reader will not read EAN 8/JAN 8 barcodes.

EAN 8 = Disable

EAN 8 = Enable

DEFAULT

EAN 8 Check Character Transmission

Enable this option to transmit the check character along with EAN 8 barcode data.

EAN 8 Check Character Transmission = Don’t Send

EAN 8 Check Character Transmission = Send

DEFAULT
