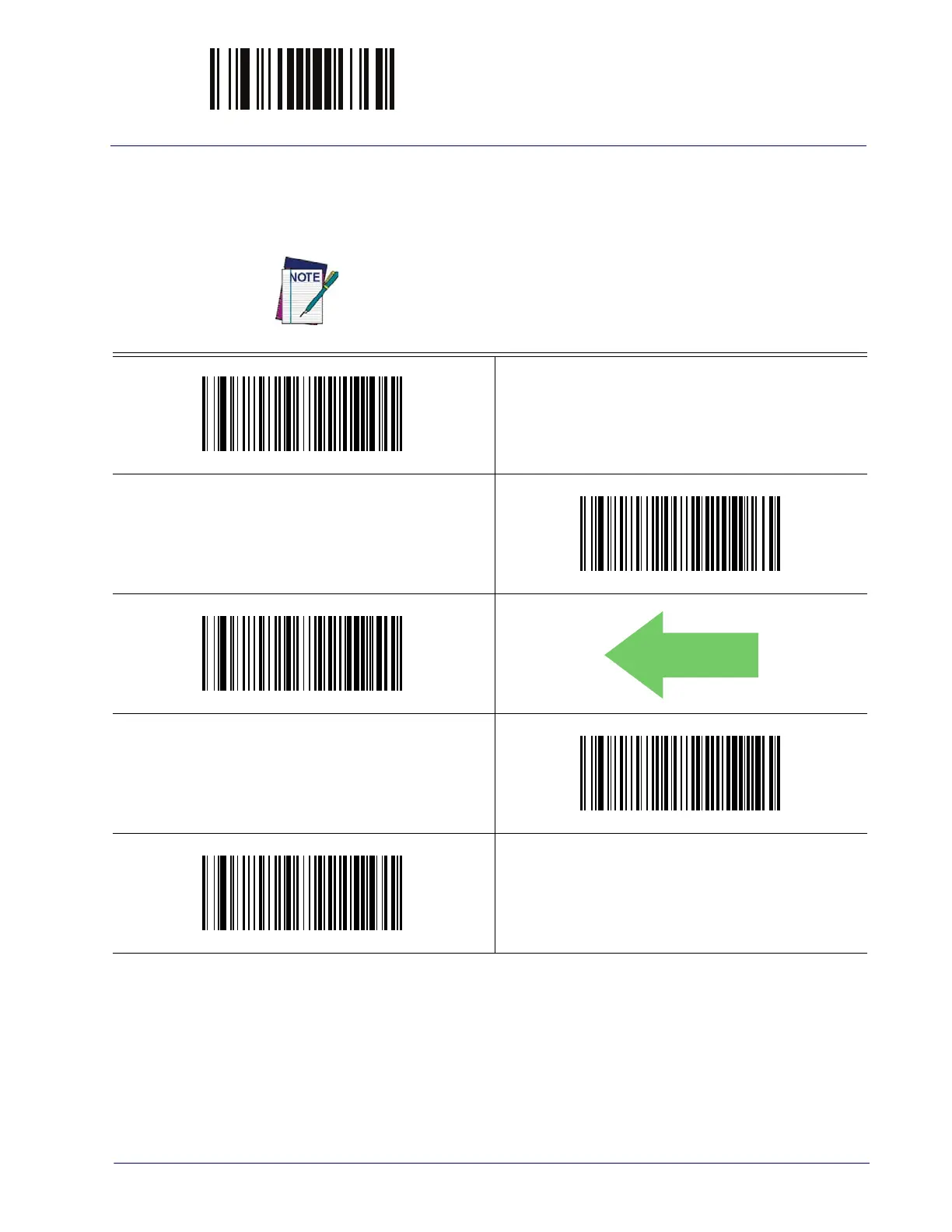

ENTER/EXIT PROGRAMMING MODE Code 39 Decoding Level

Product Reference Guide 141

Code 39 Decoding Level

Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to

very conservative depending on a particular customer’s needs. See page 302 for more

information on this feature.

Code 39 Decoding Level = 1 (Conservative)

Code 39 Decoding Level = 2

Code 39 Decoding Level = 3

DEFAULT

Code 39 Decoding Level = 4

Code 39 Decoding Level = 5 (Aggressive)

This configuration item applies to Code 39 and Code 32.

Default Chapter3
