Codabar ENTER/EXIT PROGRAMMING MODE

200

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

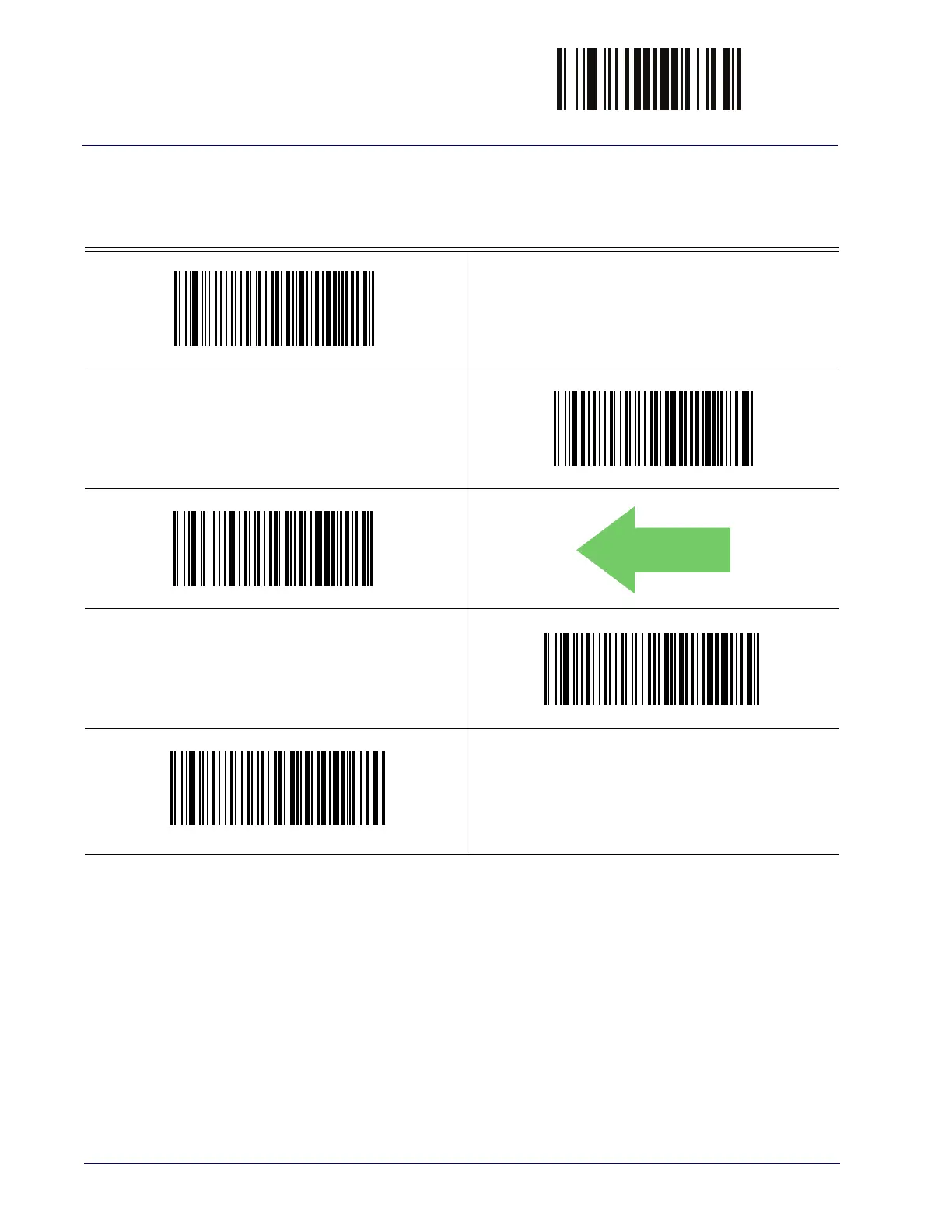

Codabar Quiet Zones

Specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends

of a barcode and are typically 10 times the width of the narrowest bar or space in the label.

Codabar Quiet Zones = Quiet Zone on one side

Codabar Quiet Zones = Quiet Zones on two sides

Codabar Quiet Zones = Auto

DEFAULT

Codabar Quiet Zones = Virtual Quiet Zones on two sides

Codabar Quiet Zones = Small Quiet Zones on two sides
