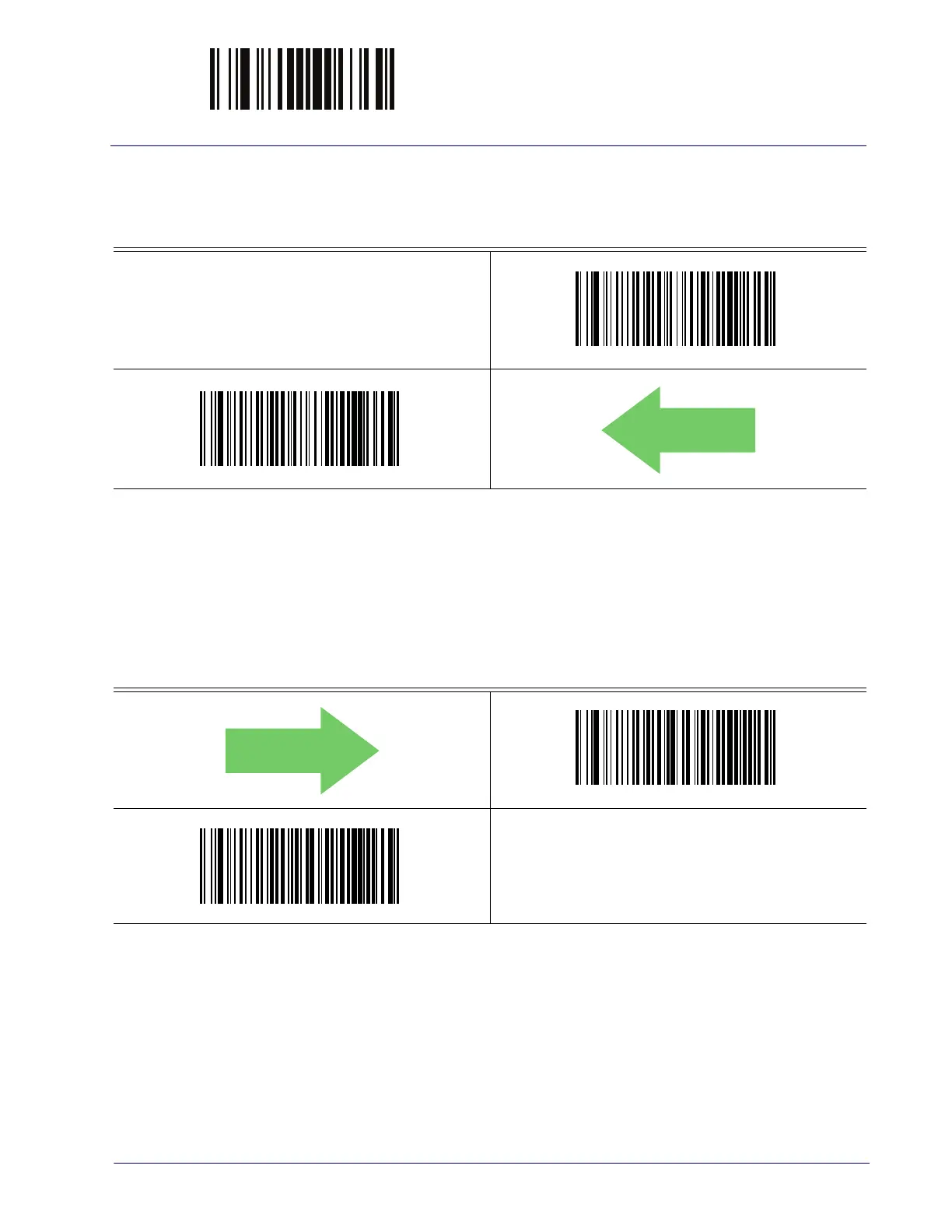

ENTER/EXIT PROGRAMMING MODE Data Bits

Product Reference Guide 43

Data Bits

This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII

protocol for sending and receiving data.

7 Data Bits

8 Data Bits

DEFAULT

Stop Bits

Set the number of stop bits to match host device requirements. See page 291 for more

information on this feature.

DEFAULT

1 Stop Bit

2 Stop Bits
