GS1 DataBar™ Expanded ENTER/EXIT PROGRAMMING MODE

226

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

GS1 DataBar™ Expanded Set Length 2

This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control.

Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if

in Fixed Length Mode. Length includes the barcode’s data characters only. The length can be set

from 1 to 74 characters. A setting of 0 specifies to ignore this length (only one fixed length).

Table 21 provides

examples for setting Length 2. See page 303 for detailed instructions on

setting this feature.

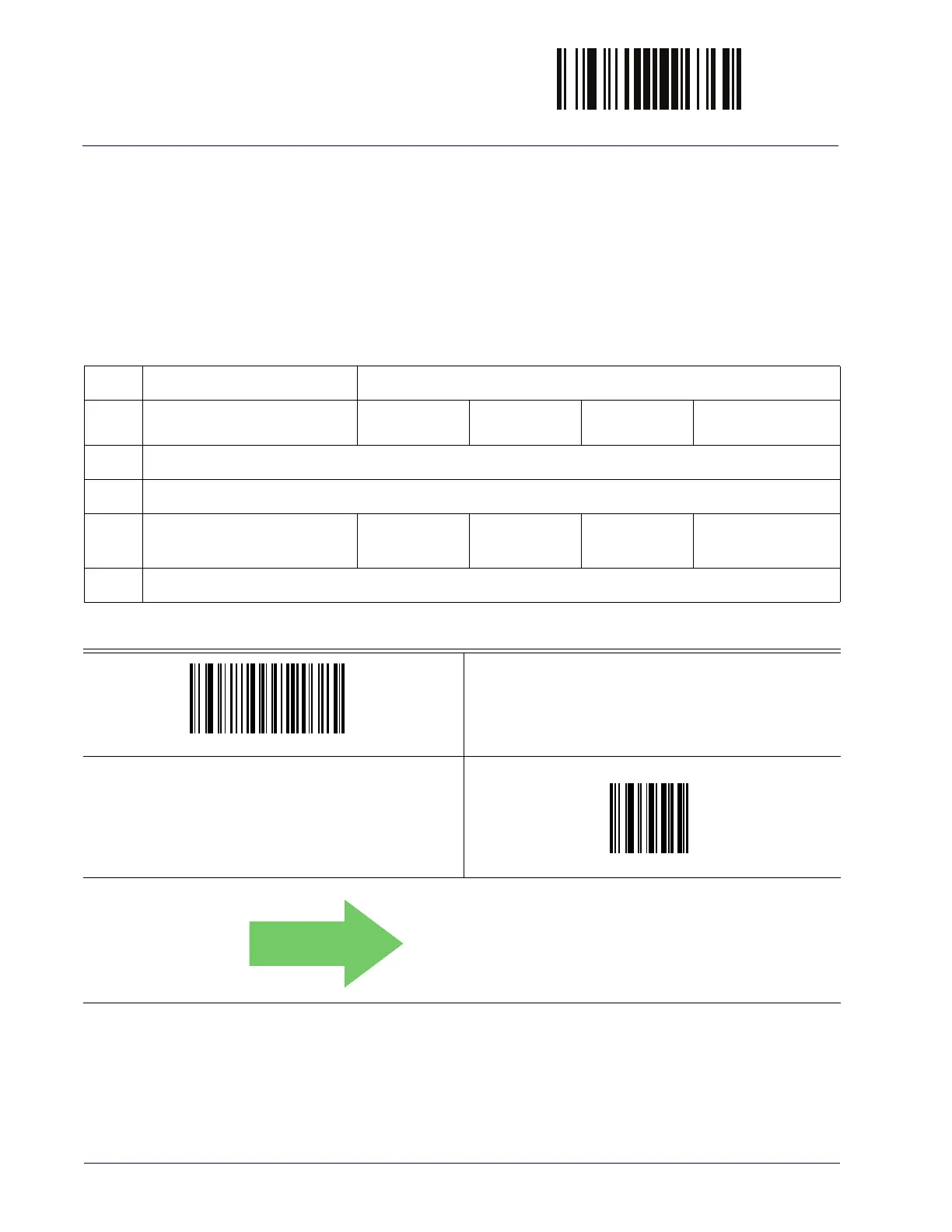

Table 21. GS1 DataBar™ Expanded Length 2 Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting

00 (ignore second

length)

07 Characters 52 Characters 74 Characters

2 Scan ENTER/EXIT PROGRAMMING MODE

3 Scan SELECT GS1 DataBar™ EXPANDED LENGTH 2 SETTING

Scan Two Characters From

Appendix D, Keypad

‘0’ and ‘0’ ‘0’ and ‘7’ ‘5’ and ‘2’ ‘7’ and ‘4’

5 Scan ENTER/EXIT PROGRAMMING MODE

Select GS1 DataBar™ Expanded Set Length 2 Setting

Make a mistake? Scan the CANCEL barcode to abort and not

save the en

try string. You can then start again at the begin-

ning.

CANCEL

DEFAULT

74 = Length 2 is 74 Characters
