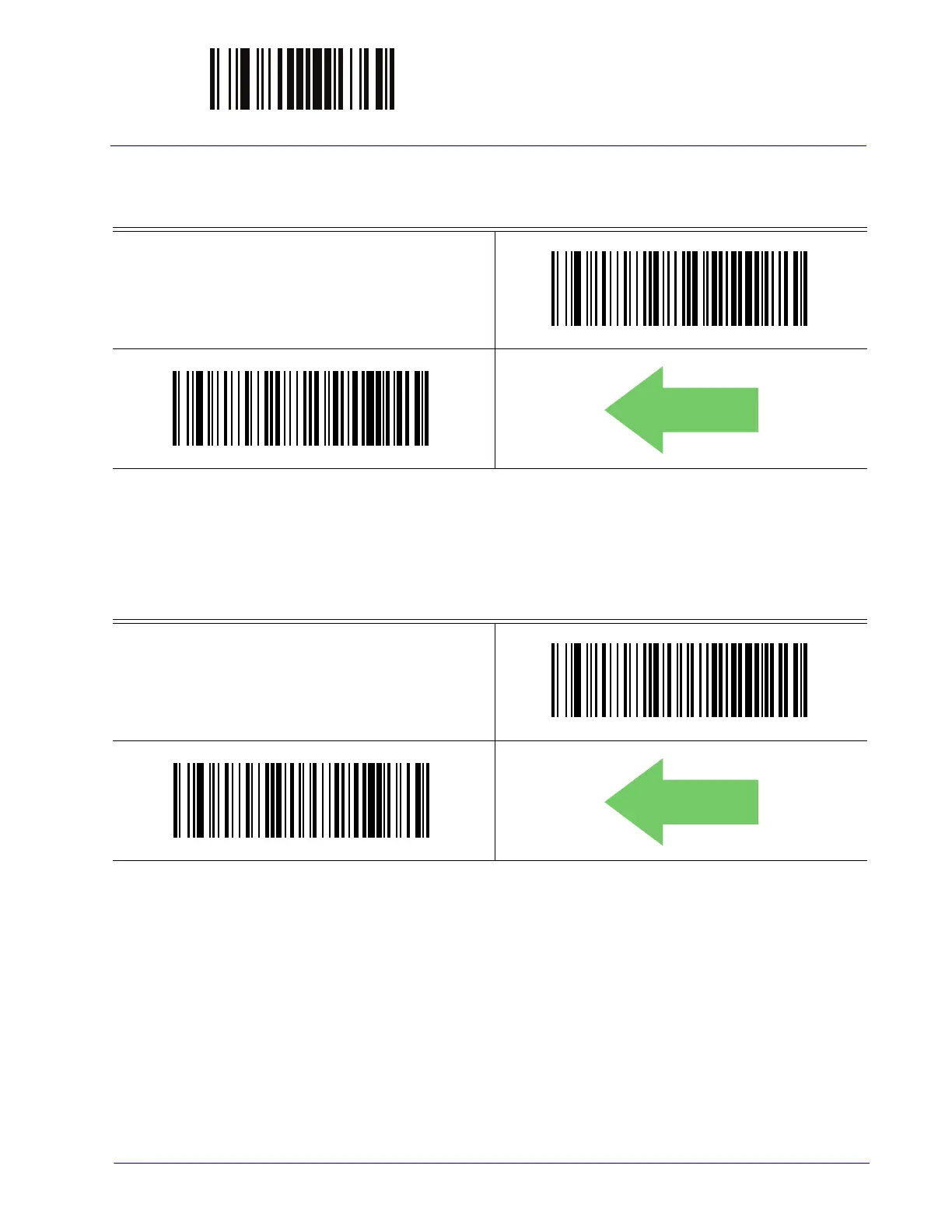

ENTER/EXIT PROGRAMMING MODE Code 5 Check Character Transmission

Product Reference Guide 253

Code 5 Check Character Transmission

This feature enables/disables transmission of an optional Code 5 check character.

Code 5 Check Character Transmission = Don’t Send

Code 5 Check Character Transmission = Send

DEFAULT

Code 5 Hex to Decimal Conversion

This feature enables/disables the conversion of hexidecimal label data to decimal label data.

Code 5 Hex to Decimal Conversion = Disable

Code 5 Hex to Decimal Conversion = Enable

DEFAULT

Default Chapter3
- Table of Contents3
