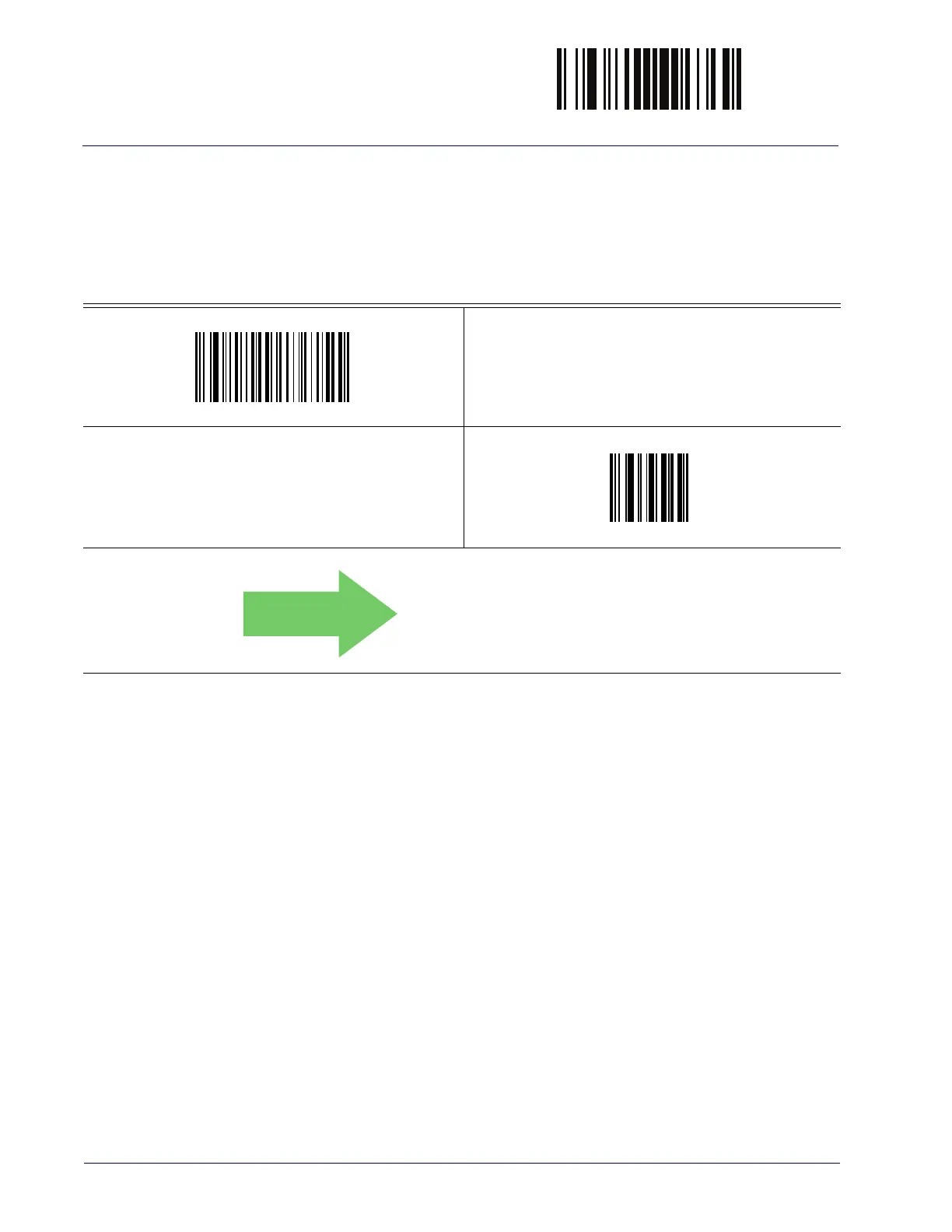

ENTER/EXIT PROGRAMMING MODE

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

Intercode Delay

Specifies the delay between labels transmitted to the host for this interface. The selectable range

for this feature is from 0 to 99 seconds.

See page 301 in “References” for detailed information and examples for setting this feature.

Set Intercode Delay

Make a mistake? Scan the CANCEL barcode to abort and not

save the en

try string. You can then start again at the begin-

ning.

CANCEL

DEFAULT

00 = No Wedge Intercode Delay

Default Chapter3
