Code 11 ENTER/EXIT PROGRAMMING MODE

212

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

CODE 11

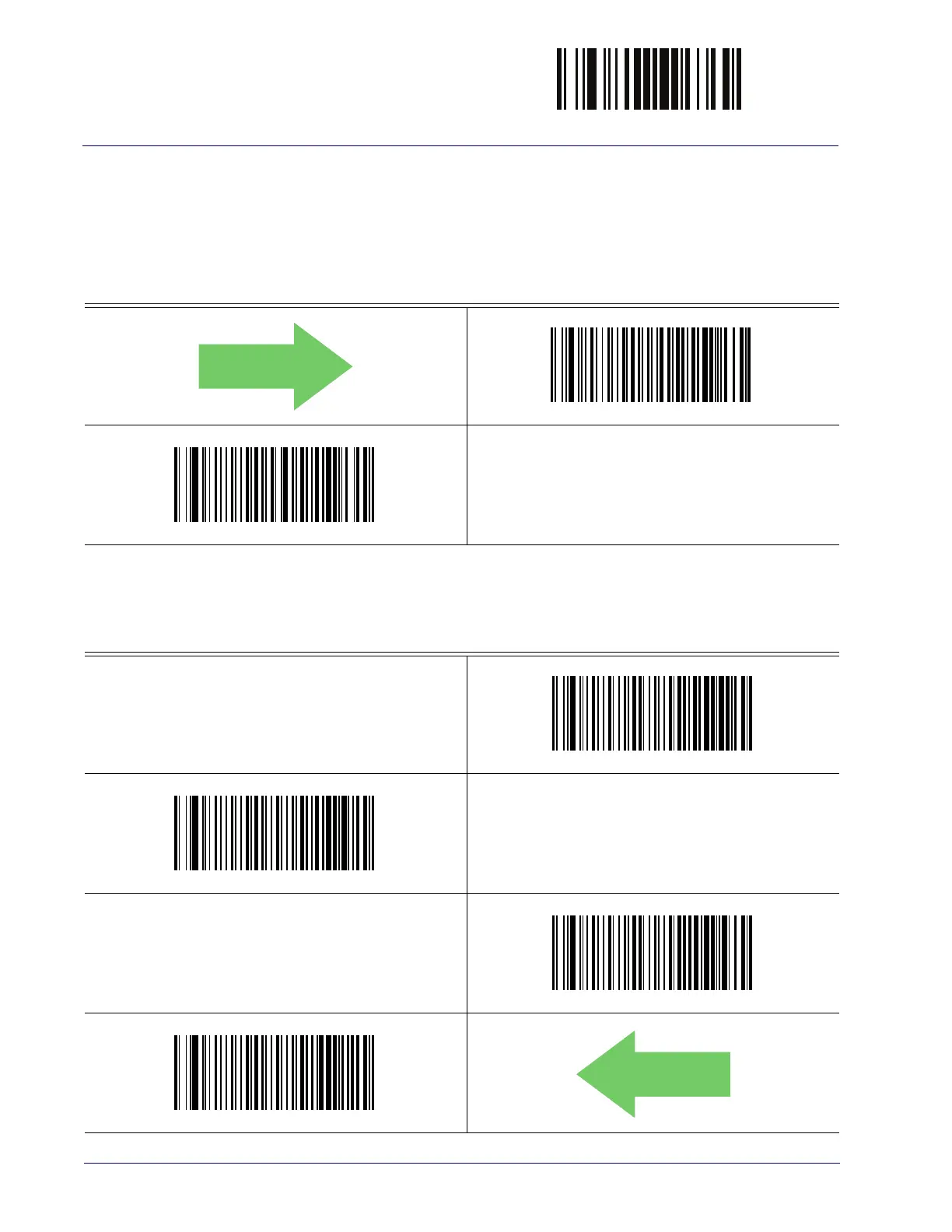

The following options apply to the Code 11 symbology.

Code 11 Enable/Disable

When disabled, the reader will not read Code 11 barcodes.

DEFAULT

Code 11 = Disable

Code 11 = Enable

Code 11 Check Character Calculation

This option enables/disables calculation and verification of optional Code 11 check character.

Code 11 Check Character Calculation = Disable

Code 11 Check Character Calculation = Check C

Code 11 Check Character Calculation = Check K

Code 11 Check Character Calculation = Check C and K

DEFAULT
