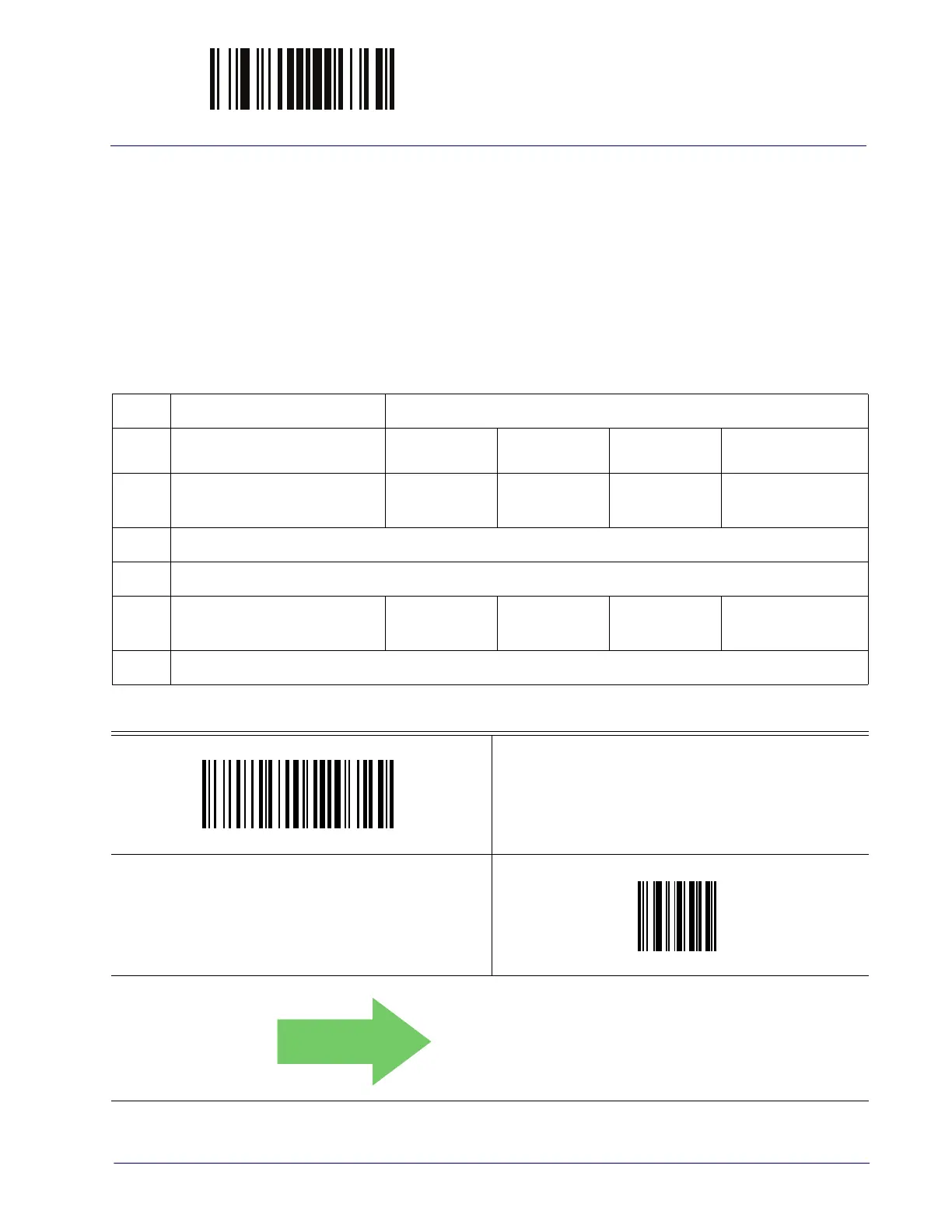

ENTER/EXIT PROGRAMMING MODE Datalogic 2 of 5 Set Length 2
Product Reference Guide 195
Datalogic 2 of 5 Set Length 2
This feature specifies one of the barcode lengths for Datalogic 2 of 5 Length Control. Length 2 is
the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed
Length Mode. The length includes the barcode’s check and data characters.
The length can be set from 2 to 50 characters. A setting of 0 sp
ecifies to ignore this length (only
one fixed length).
Table 15 provides examples for setting Length 2. See page 303 for detailed instructions on
setting this feature.
Table 15. Datalogic 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
Ignore This
Length
4 Characters 14 Characters 50 Characters
2
Pad with leading zeroes to
yield two digit
s
00 04 14 50
3 Scan ENTER/EXIT PROGRAMMING MODE
4 Scan SELECT DATALOGIC 2 OF 5 LENGTH 2 SETTING
5
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘4’ ‘1’ and ‘4’ ‘5’ AND ‘0’
6 Scan ENTER/EXIT PROGRAMMING MODE
Select Datalogic 2 of 5 Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
save the en
try string. You can then start again at the begin-
ning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
