Codabar ENTER/EXIT PROGRAMMING MODE

202

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

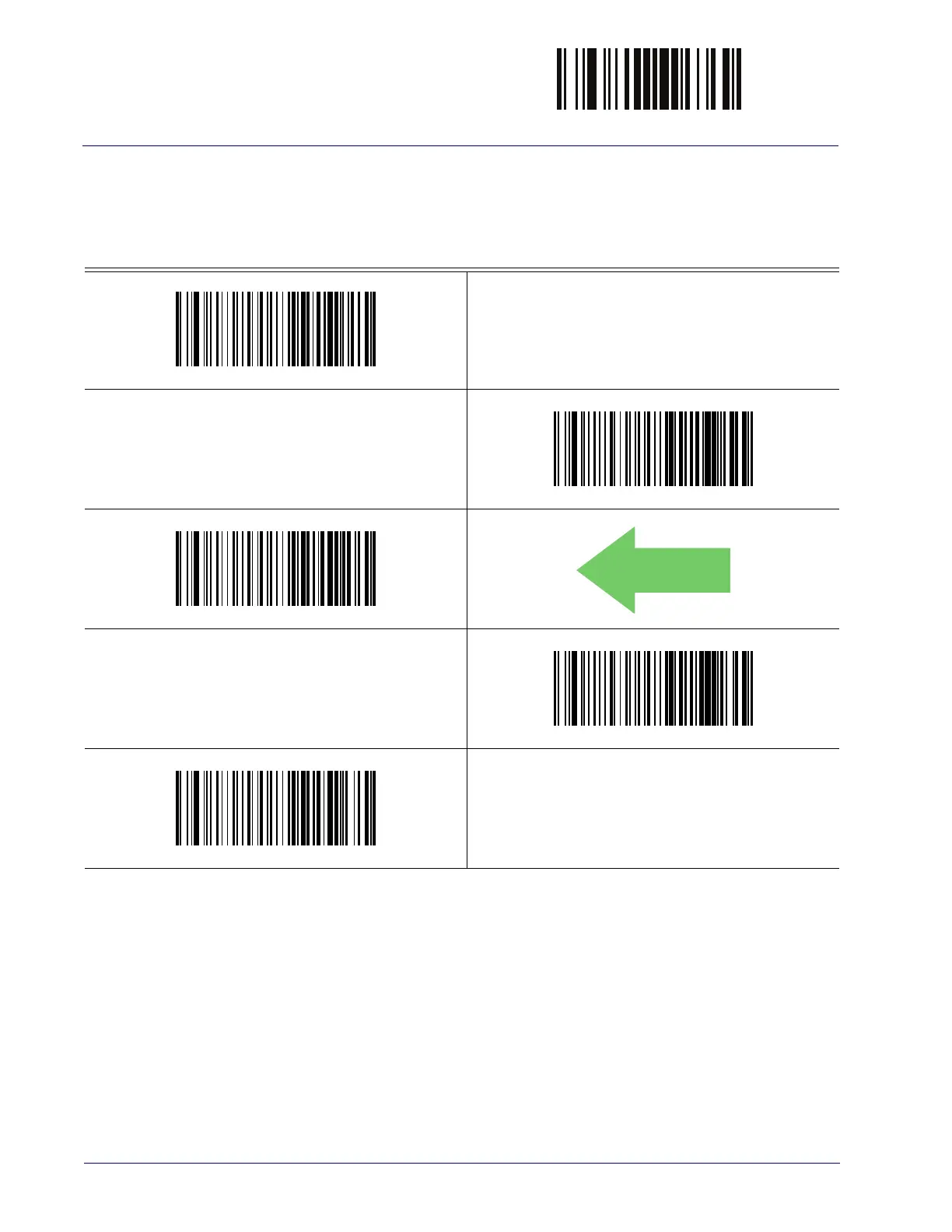

Codabar Decoding Level

Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to

very conservative, depending on a particular customer’s needs. See page 302 for more

information on this feature.

Codabar Decoding Level = 1 (Conservative)

Codabar Decoding Level = 2

Codabar Decoding Level = 3

DEFAULT

Codabar Decoding Level = 4

Codabar Decoding Level = 5

Default Chapter3
