Codabar ENTER/EXIT PROGRAMMING MODE
204 Gryphon™ I GD4100/GM4100/GBT4100/L GD4300
Codabar Set Length 1
This feature specifies one of the barcode lengths for Codabar Length Control. Length 1 is the
minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length
Mode. Length includes the barcode’s start, stop, check and data
characters. The length must
include at least one data character. The length can be set from 3 to 50 characters.
Table 16 provides some examples for setting Length 1. See page 302 for detailed instructions on
setting this feature.

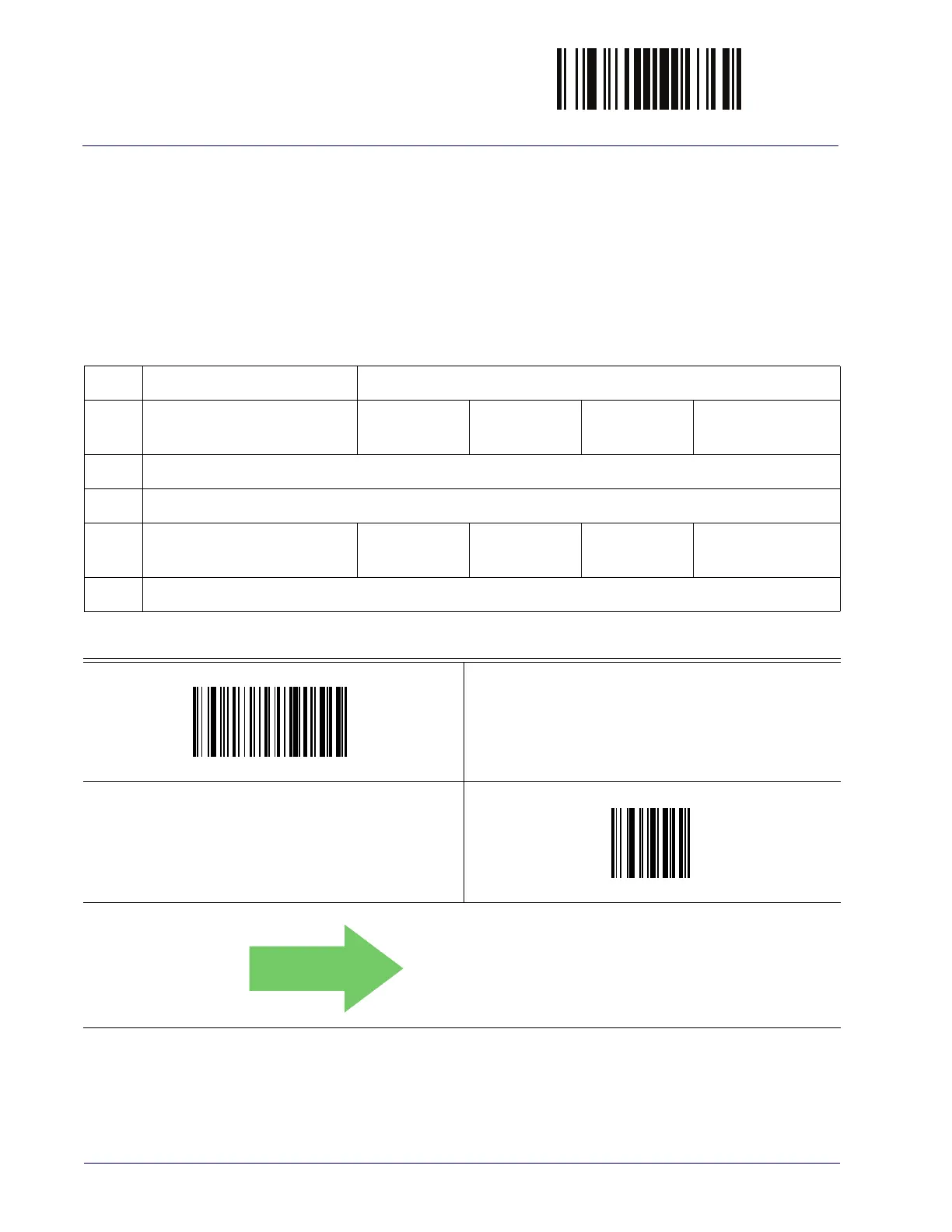

Table 16. Codabar Length 1 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (and pad with
leading zer
oes)
03 Characters 09 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABAR LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘3’ ‘0’ and ‘9’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codabar Length 1 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
save the en
try string. You can then start again at the begin-
ning.
CANCEL
DEFAULT
03 = Length 1 is 3 Characters
