ENTER/EXIT PROGRAMMING MODE

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

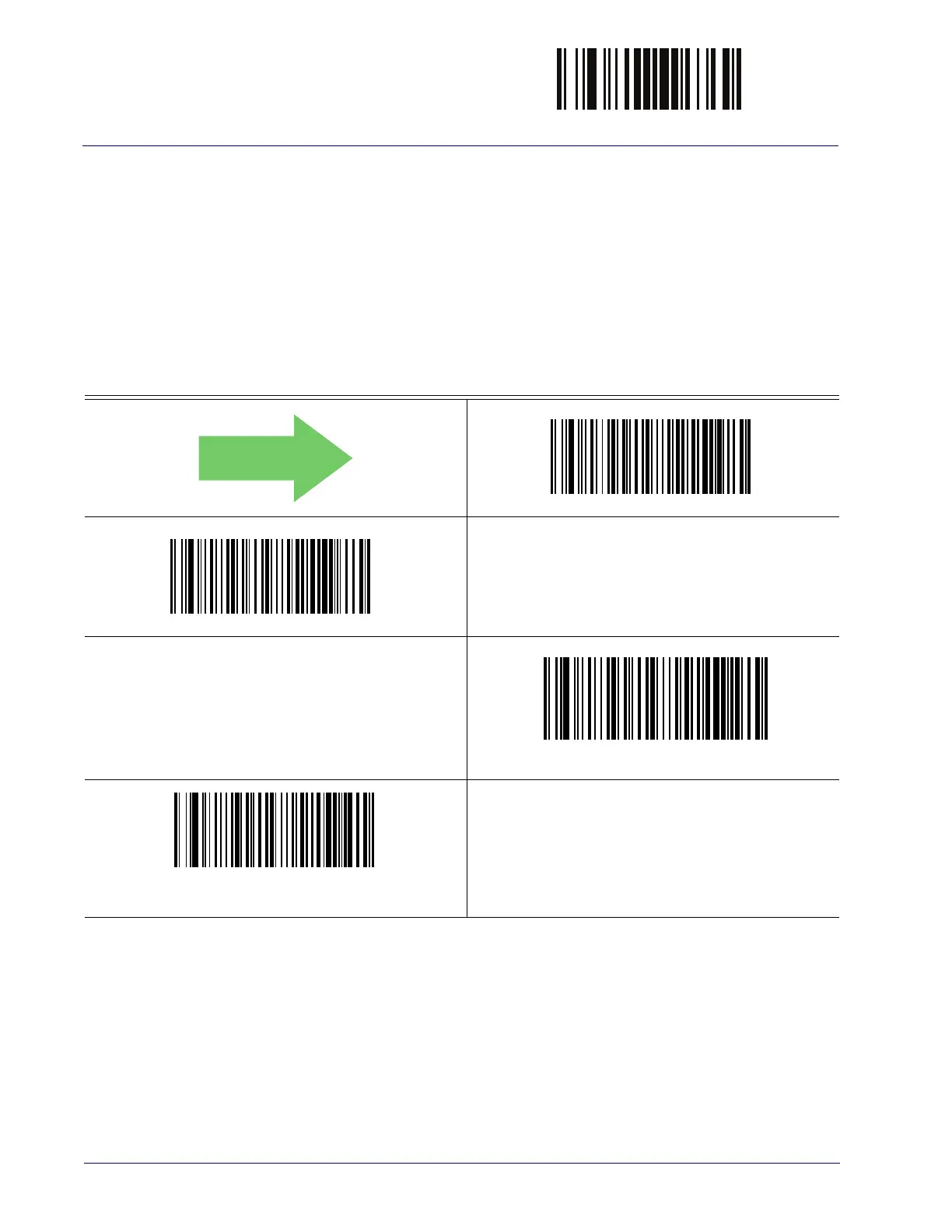

Label Symbology Conversion

When this feature is enabled for the Wand Emulation interface, all barcode labels are converted

to a single symbology.

Options are:

• No conversion

• Convert to Code 39 symbology

• Convert to Code 39 Full ASCII

• Convert to Code 128 symbology

DEFAULT

Label Symbology Conversion = No conversion

Label Symbology Conversion = Convert to Code 39

Label Symbology Conversion =

Convert to Code 39 Full ASCII

Label Symbology Conversion = Convert to Code 128

Default Chapter3
