ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Set Length 2
Product Reference Guide 187
Industrial 2 of 5 Set Length 2
This feature specifies one of the barcode lengths for Industrial 2 of 5 Length Control. Length 2 is
the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed
Length Mode. Length includes the barcode’s check, data, and full-ASCII sh
ift characters. The
length does not include start/stop characters.
The length can be set from 1 to 50 characters. A setting of
0 sp
ecifies to ignore this length (only
one fixed length).
Table 13 provides examples for setting Length 2. See page 303 for detailed instructions on
setting this feature.

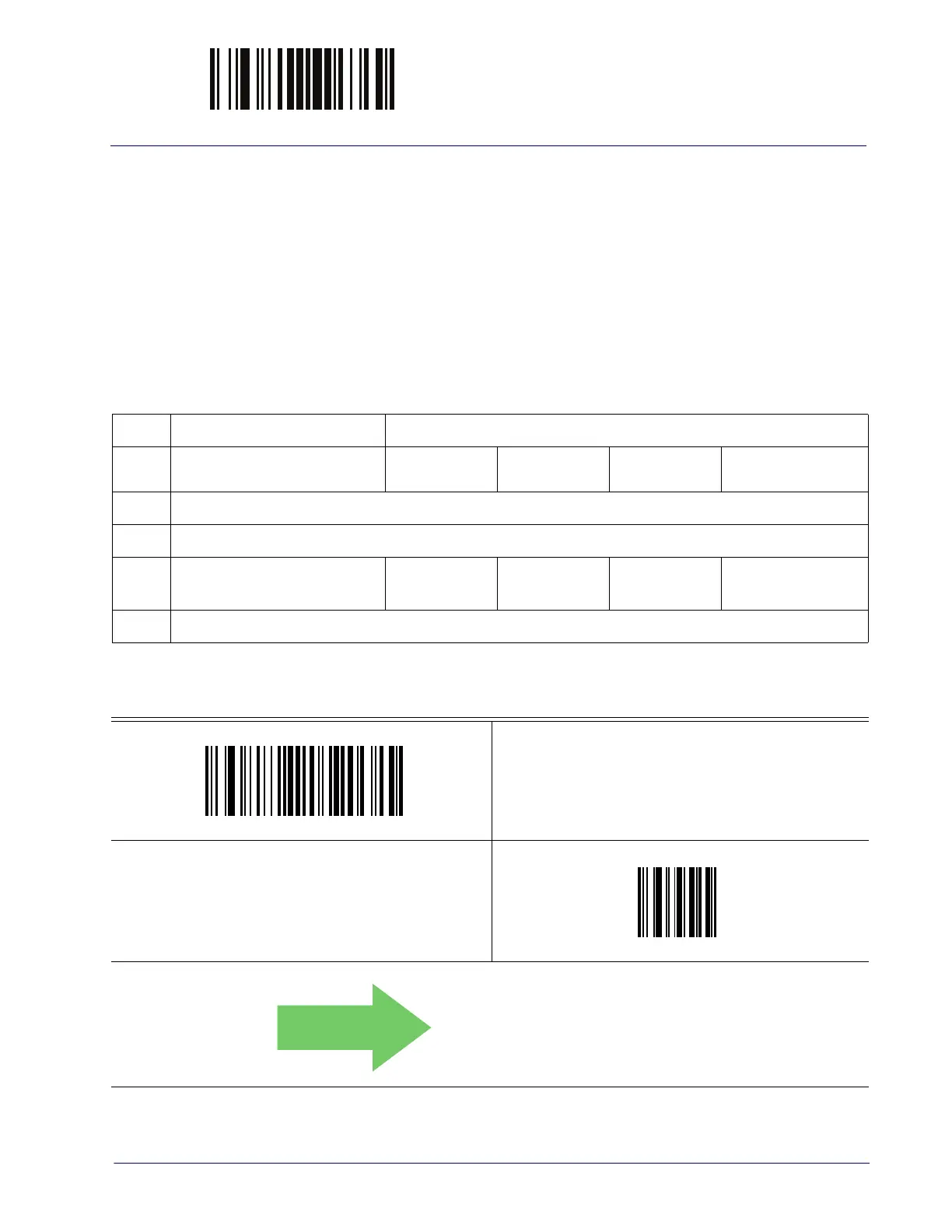

Table 13. Industrial 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT INDUSTRIAL 2 OF 5 LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Industrial 2 of5 Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort and not save the
entry string. You can then start again at the beginning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
To Next Page
