Technical Specifications
330
Gryphon™ I GD4100/GM4100/GBT4100/L GD4300
Standard Cable Pinouts
Figure 20 and Table 49 provide standard pinout information for the Base Station’s interface
cable.

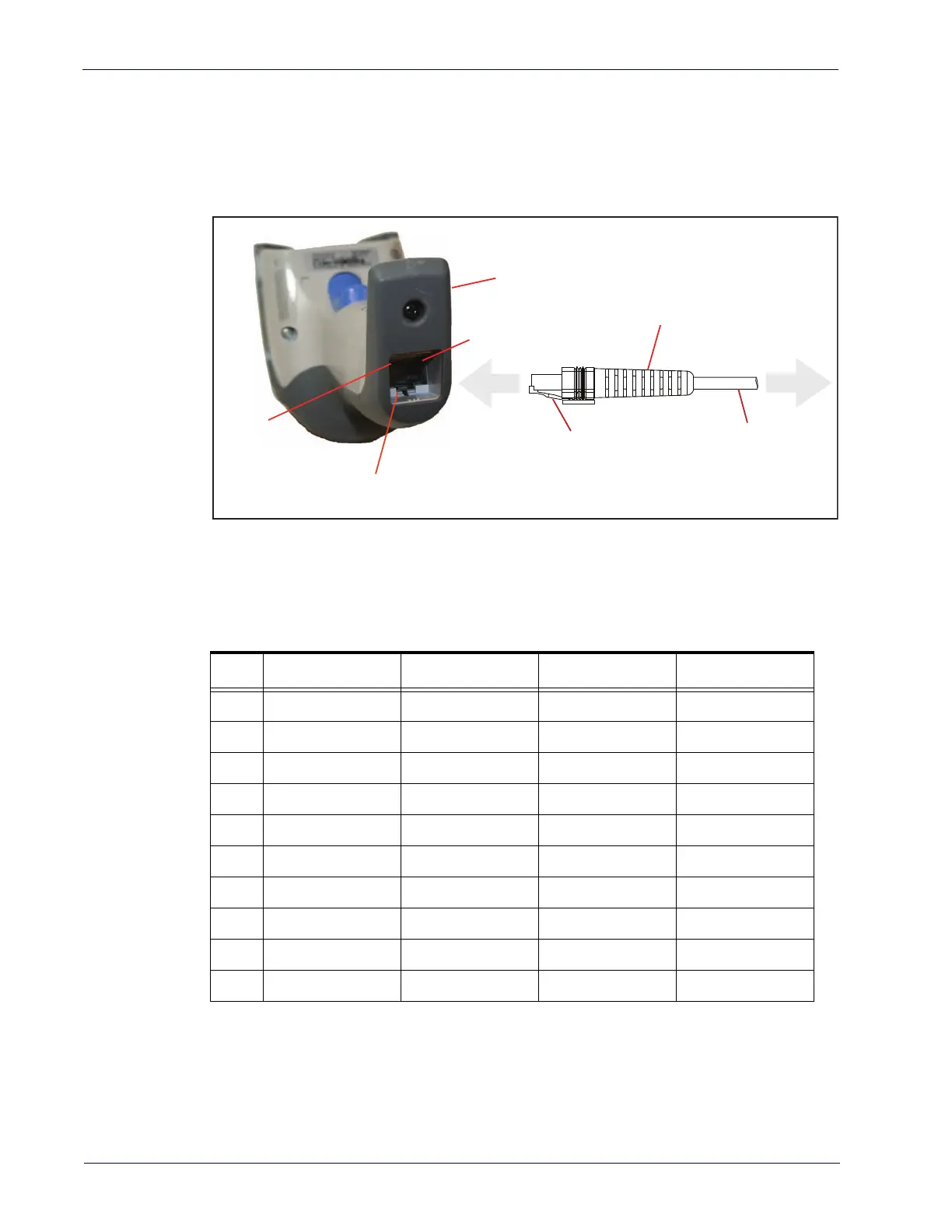

Figure 20. Standard Cable Pinouts
Pin 10
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Bottom of Scanner
Interface Cable Port
Pin 1
The signal descriptions in Table 49 apply to the connector on the reader and are for reference
only.
Table 49.
Standard Cable Pinouts — Reader Side
Pin RS-232 OEM USB Keyboard Wedge
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND GND
5 RX
6 TX
7 VCC VCC VCC VCC
8 IBM_B CLKOUT (PC side)
9 IBM_A DATAOUT (PC side)
10 CTS (in)
