ENTER/EXIT PROGRAMMING MODE Code 93 Quiet Zones

Product Reference Guide 235

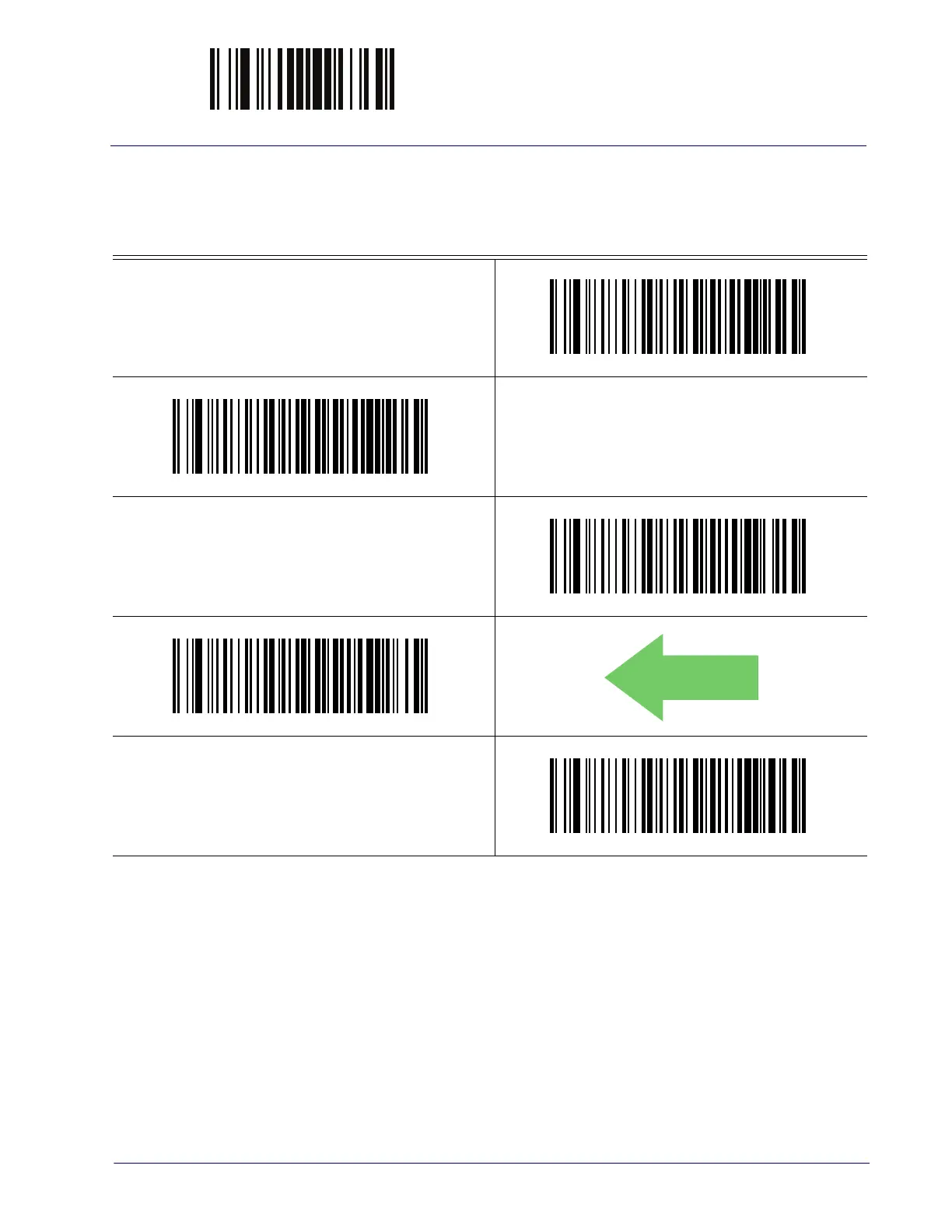

Code 93 Quiet Zones

Enables/disables quiet zones for Code 93.

Code 93 Quiet Zones = No Quiet Zones

Code 93 Quiet Zones = Quiet Zone on one side

Code 93 Quiet Zones = Quiet Zones on two sides

Code 93 Quiet Zones = Auto

DEFAULT

Code 93 Quiet Zones = Virtual Quiet Zones on two sides

Default Chapter3
