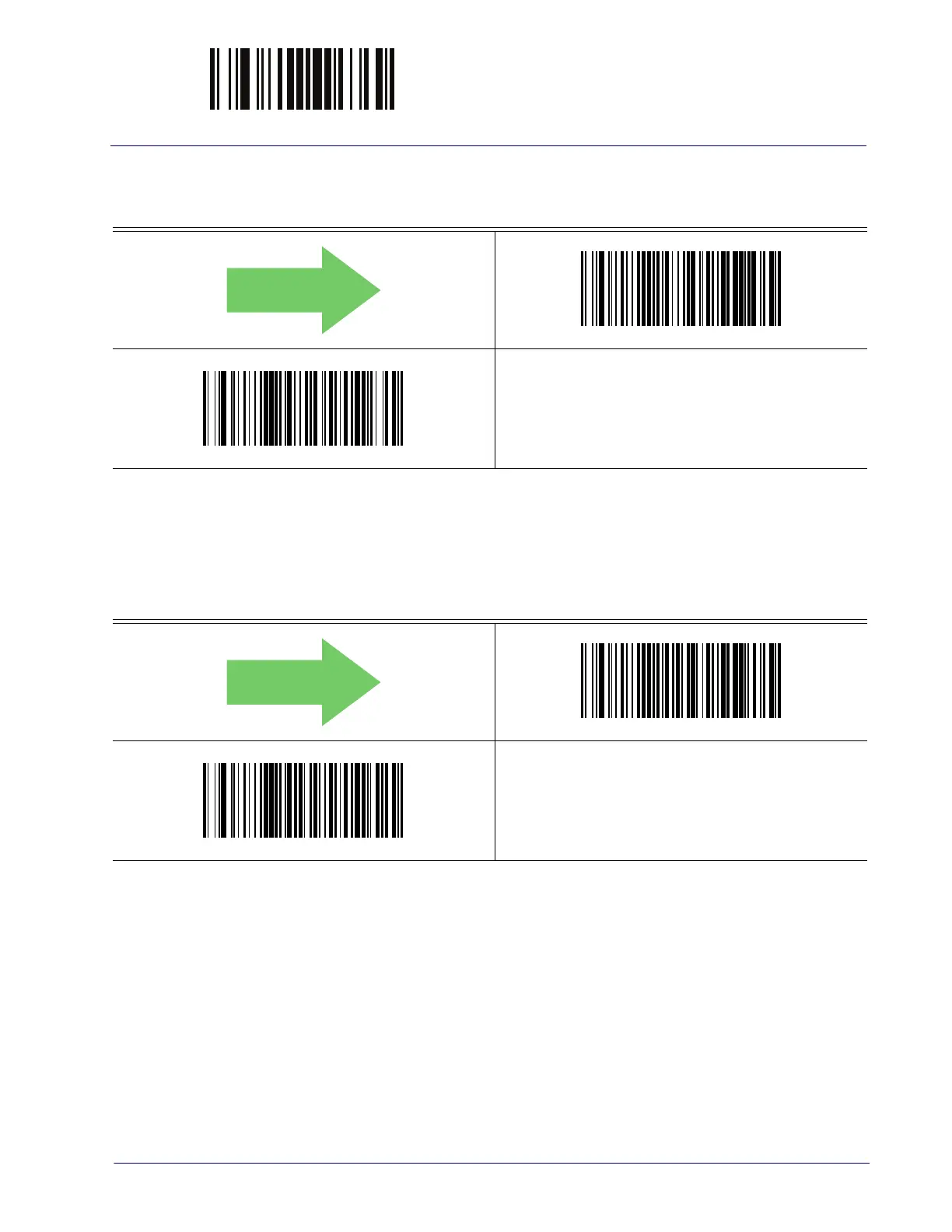

ENTER/EXIT PROGRAMMING MODE Code 32 Check Char Transmission

Product Reference Guide 149

Code 32 Check Char Transmission

Enable this option to transmit the check character along with Code 32 barcode data.

DEFAULT

Code 32 Check Character Transmission = Don’t Send

Code 32 Check Character Transmission = Send

Code 32 Start/Stop Character Transmission

This option enables/disables transmission of Code 32 start and stop characters

DEFAULT

Code 32 Start/Stop Character Transmission = Don’t Transmit

Code 32 Start/Stop Character Transmission = Transmit
