Codabar ENTER/EXIT PROGRAMMING MODE

206

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

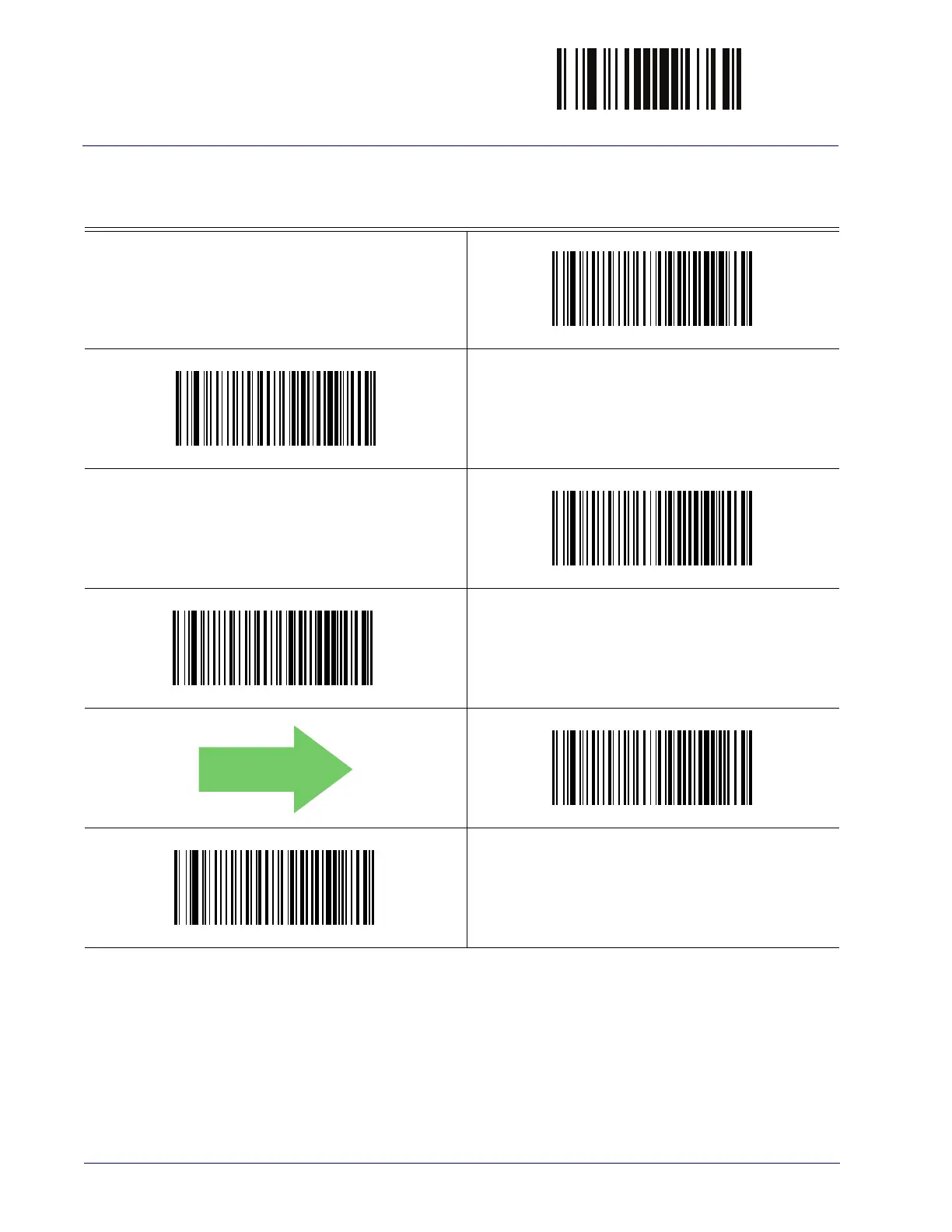

Codabar Interdigit Ratio

This feature specifies the ratio between an intercharacter space and module for Codabar labels.

Codabar Interdigit Ratio = Disable

Codabar Interdigit Ratio = 1

Codabar Interdigit Ratio = 2

Codabar Interdigit Ratio = 3

DEFAULT

Codabar Interdigit Ratio = 4

Codabar Interdigit Ratio = 5

Default Chapter3
