Code 128 ENTER/EXIT PROGRAMMING MODE

156

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

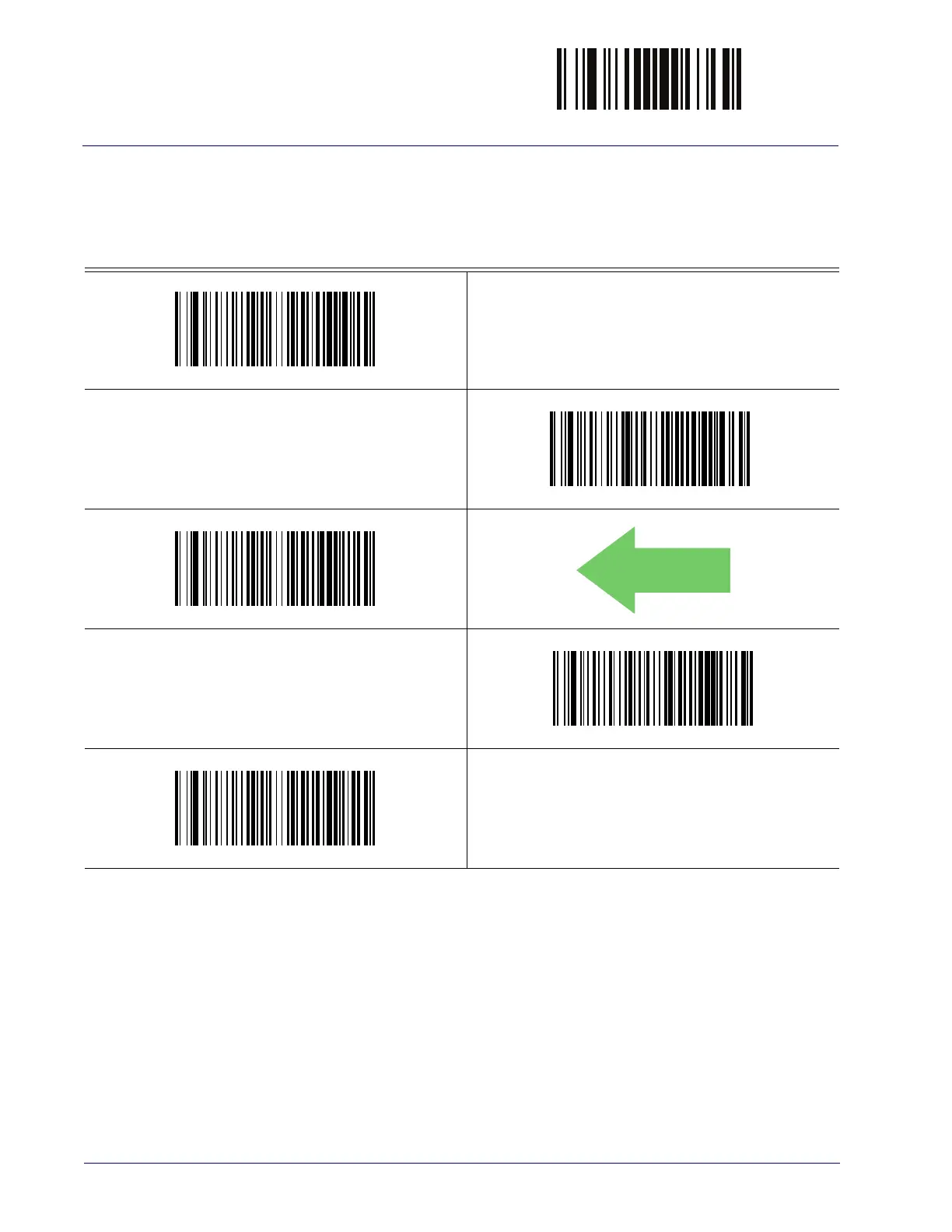

Code 128 Decoding Level

Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to

very conservative depending on a particular customer’s needs. See page 302 for more

information on this feature.

Code 128 Decoding Level = 1 (Conservative)

Code 128 Decoding Level = 2

Code 128 Decoding Level = 3

DEFAULT

Code 128 Decoding Level = 4

Code 128 Decoding Level = 5 (Aggressive)

Default Chapter3
