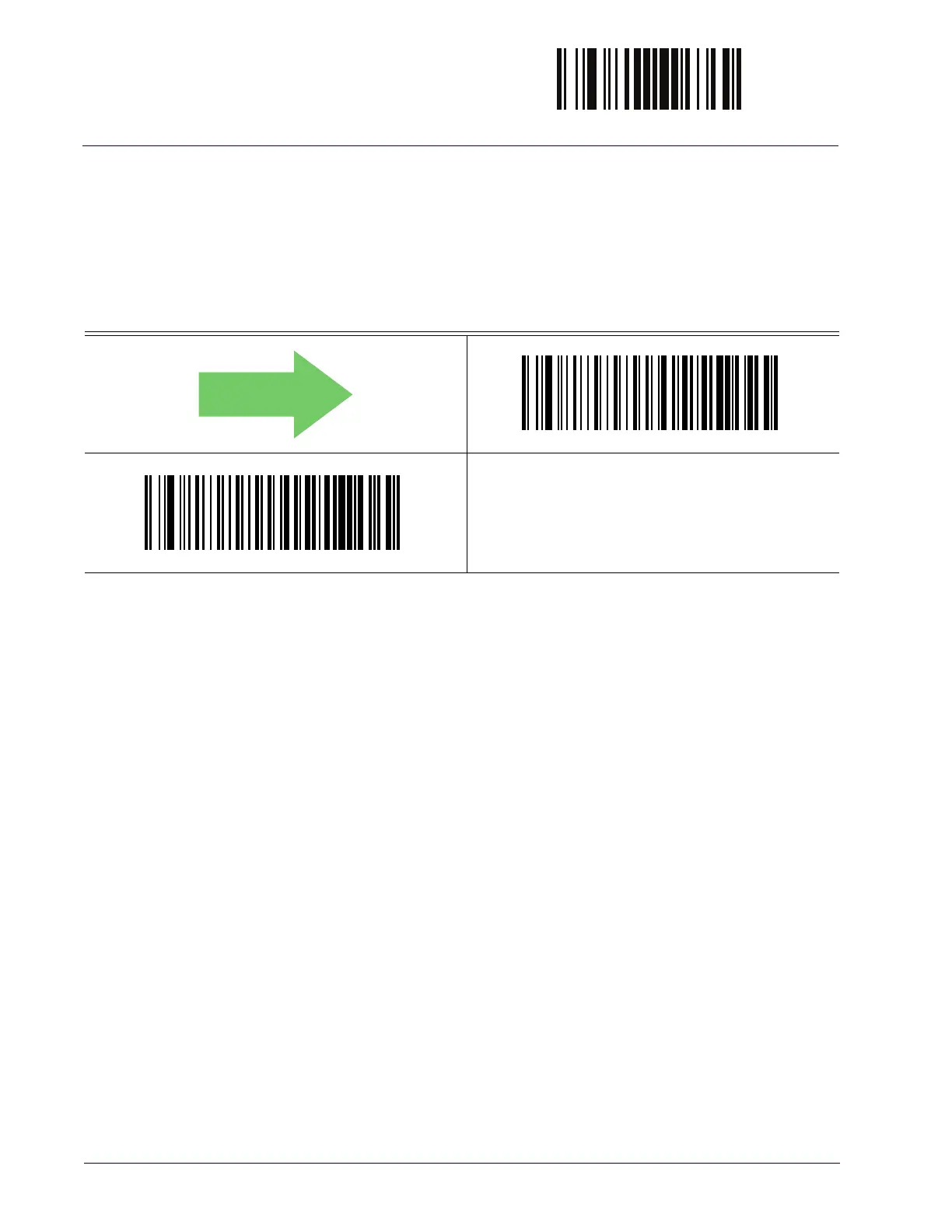

Code 39 CIP (French Pharmaceutical) ENTER/EXIT PROGRAMMING MODE

150

Gryphon™ I GD4100/GM4100/GBT4100/L GD4300

CODE 39 CIP (FRENCH PHARMACEUTICAL)

The following options apply to the Code 39 CIP symbology.

Code 39 CIP Enable/Disable

Enables/Disables ability of the reader to decode Code 39 CIP labels.

DEFAULT

Code 39 CIP = Disable

Code 39 CIP = Enable
