Setup
24 Gryphon™ I GD4100/GM4100/GBT 4100/L GD4300

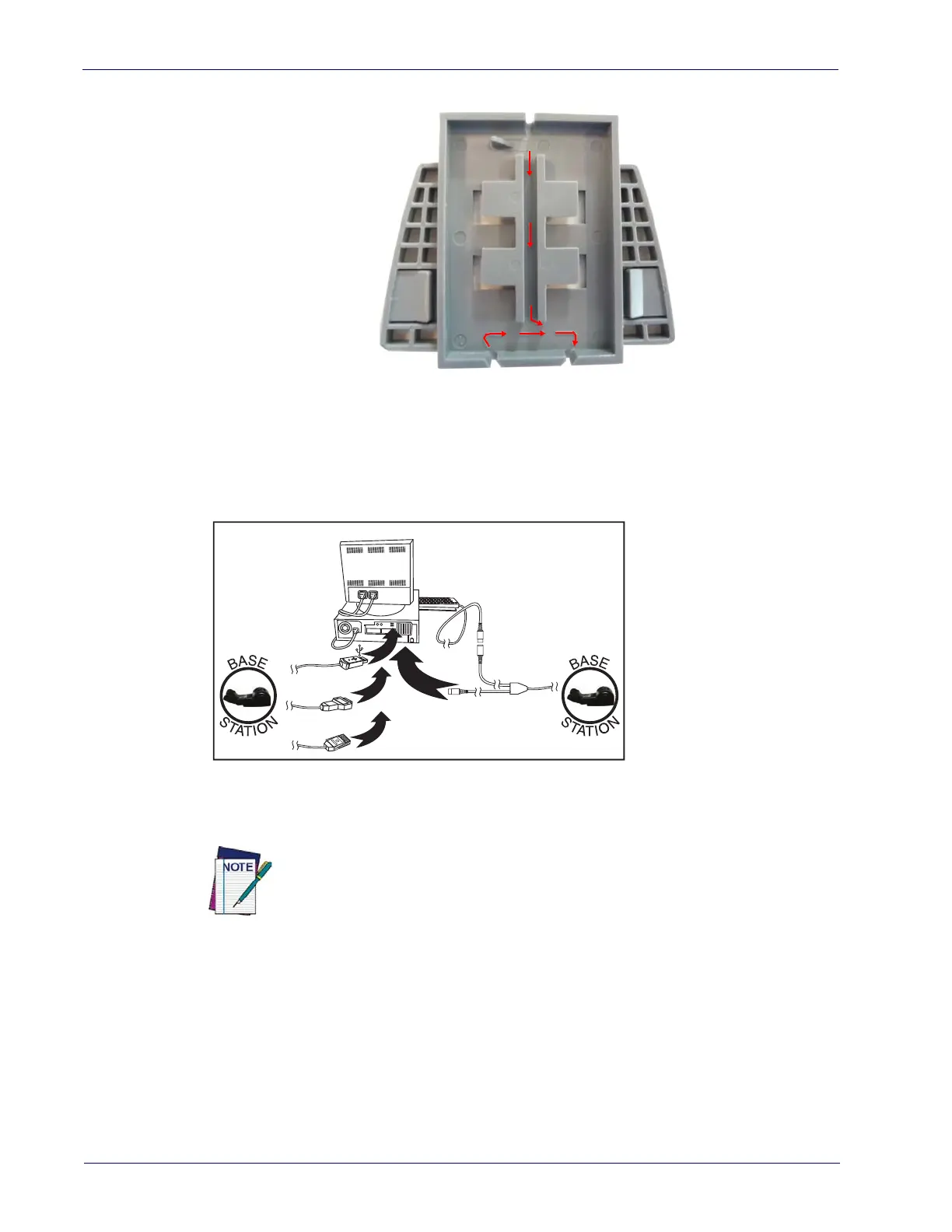

Figure 10. Arrows showing routing
Host Connection: Verify before connection that the reader’s cable type is compatible with your
host equipment. Most connections plug directly into the host device as shown below. Keyboard
Wedge interface cables have a ‘Y’ connection where its female end mates with the male end of
the cable from the keyboard and the remaining end at the keyboard port on the terminal/PC.
Figure 11. Connecting to the Host
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
W
a
n
d
or...
or...
or...
Power Connection : Plug the AC Adapter in to an approved AC wall socket with the cable
facing downwards (as shown in Figure 8) to prevent undue strain on the socket.
Disconnecting the Cable: To detach the cable, insert a paper clip or similar object into the hole
on the base, as shown in Figure 12.
Gryphon Mobile can also be Powered by the Terminal. The external power supply is rec-
ommended but not necessary. When powered by the Terminal, the battery charger is
automatically set as Slow charge.
