Setup

Gryphon™ I GD4100/GM4100/GBT 4100/L GD4300

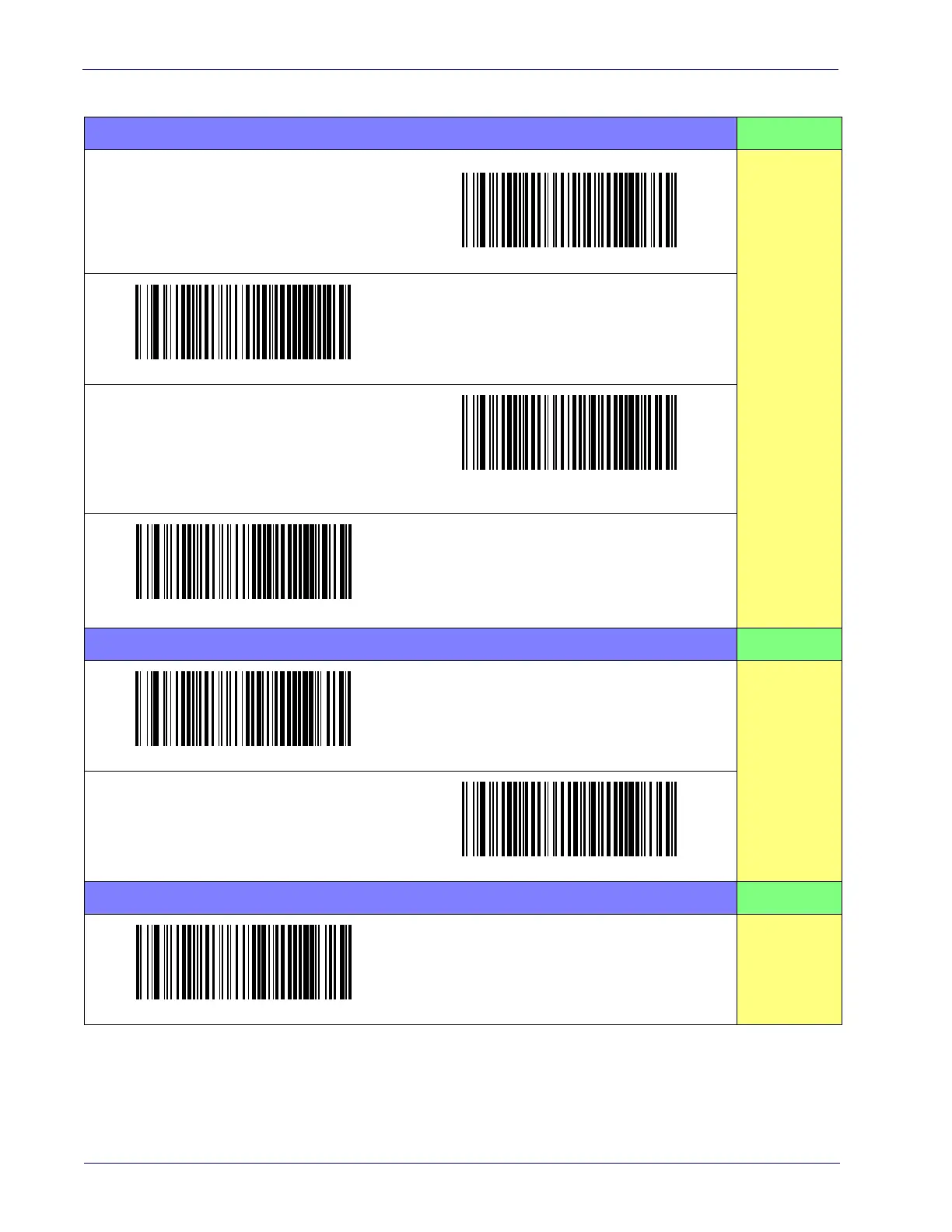

Table 1. Available Interfaces

RS-232

FEATURES

RS-232 standard interface

Select RS232-STD

Set RS-232

Interface

Features

starting on

page 41

Select RS232-WN

RS-232 Wincor-Nixdorf

RS-232 for use with OPOS/UPOS/JavaPOS

Select RS-232 OPOS

Select USB-COM-STD

a.Download the correct USB Com driver from www.datalogic.com

USB Com to simulate RS-232 standard interface

IBM

FEATURES

Select IBM-P5B

IBM-46xx Port 5B reader interface

Set IBM

Interface

Features

starting on

page 69

IBM-46xx Port 9B reader interface

Select IBM-P9B

USB-OEM

FEATURES

Select USB-OEM

USB-OEM

(can be used for OPOS/UPOS/JavaPOS)

Set USB-OEM

Interface

Features

starting on

page 67

Default Chapter3
- Table of Contents3
Introduction11
- About this Manual11
  - Overview11
  - Manual Conventions12
- References12
- Technical Support12
- About the Reader13
- The Bc40Xx™ Radio Base13
  - Base Leds13
  - Base Button14
- BC40XX UV Counterfeit Detection14
- Display16
- Battery Safety16
  - Product Reference Guide17
- Programming the Reader18
  - Configuration Methods18
Setup19
- Unpacking19
- Setting up the Reader19
- Installing the Interface Cable20
- Configuring the Base Station22
- GRYPHON™ I System and Network Layouts29
  - Stand Alone Layouts29
- Interface Selection31
  - Setting the Interface31
- Customizing Configuration Settings35
Configuration Using Barcodes39
- Configuration Parameters39
- Reading Configuration Barcodes40
  - Global Interface Features41
    - Host Commands - Obey/Ignore41
    - USB Suspend Mode41
- ONLY Interface43
- RS-232/USB-Com Interfaces48
- Keyboard Interface57
- USB-OEM Interface69
  - USB-OEM Device Usage70
  - Interface Options70
- IBM 46XX Interface71
- Wand Emulation Interface75
- Data Format79
- Reading Parameters93
- Code Selection109
Code 32 (Ital Pharmaceutical Code)150
- Code 32 Enable/Disable150
- Code 32 Feature Setting Exceptions150
- Code 32 Check Char Transmission151
- Code 32 Start/Stop Character Transmission151
Code 39 Cip (French Pharmaceutical)152
- Code 39 CIP Enable/Disable152
Code 128153
- Code 128 Enable/Disable153
- Expand Code 128 to Code 39153
- Code 128 Check Character Transmission154
- Code 128 Function Character Transmission154
- Code 128 Sub-Code Change Transmission155
- Code 128 Quiet Zones156
- Code 128 Minimum Reads157
- Code 128 Decoding Level158
- Code 128 Length Control159
- Code 128 Set Length 1160
- Code 128 Set Length 2161
- Code 128 Character Correlation162
- Code 128 Stitching162
Gs1-128163
- GS1-128 Enable163
Code Isbt 128164
- ISBT 128 Concatenation164
- ISBT 128 Force Concatenation164
- ISBT 128 Concatenation Mode165
- ISBT 128 Dynamic Concatenation Timeout166
- ISBT 128 Advanced Concatenation Options166
Codablock F167
- Codablock F Enable/Disable167
- Codablock F EAN Enable/Disable167
- Codablock F AIM Check168
- Codablock F Length Control168
- Codablock F Set Length 1169
- Codablock F Set Length 2170
Interleaved 2 of 5 (I 2 of 5)171
- I 2 of 5 Enable/Disable171
- I 2 of 5 Check Character Calculation171
- I 2 of 5 Check Character Transmission172
- I 2 of 5 Minimum Reads173
- Of 5 Decoding Level174
- I 2 of 5 Length Control175
- I 2 of 5 Set Length 1176
- I 2 of 5 Set Length 2177
- I 2 of 5 Character Correlation178
- I 2 of 5 Stitching178
Follett 2 of 5179
- Follett 2 of 5 Enable/Disable179
Interleaved 2 of 5 Cip Hr179
- Interleaved 2 of 5 CIP HR Enable/Disable179
Standard 2 of 5180
- Standard 2 of 5 Enable/Disable180
- Standard 2 of 5 Check Character Calculation180
- Standard 2 of 5 Check Character Transmission181
- Standard 2 of 5 Minimum Reads181
- Standard 2 of 5 Decoding Level182
- Standard 2 of 5 Length Control182
- Standard 2 of 5 Set Length 1183
- Standard 2 of 5 Set Length 2184
- Standard 2 of 5 Character Correlation185
- Standard 2 of 5 Stitching185
Industrial 2 of 5186
- Industrial 2 of 5 Enable/Disable186
- Industrial 2 of 5 Check Character Calculation186
- Industrial 2 of 5 Check Character Transmission187
- Industrial 2 of 5 Length Control187
- Industrial 2 of 5 Set Length 1188
- Industrial 2 of 5 Set Length 2189
- Industrial 2 of 5 Minimum Reads190
- Industrial 2 of 5 Stitching190
- Industrial 2 of 5 Character Correlation191
Code Iata192
- IATA Enable/Disable192
- IATA Check Character Transmission192
Datalogic 2 of 5193
- Datalogic 2 of 5 Enable/Disable193
- Datalogic 2 of 5 Check Character Calculation193
- Datalogic 2 of 5 Minimum Reads194
- Datalogic 2 of 5 Decoding Level194
- Datalogic 2 of 5 Length Control195
- Datalogic 2 of 5 Set Length 1196
- Datalogic 2 of 5 Set Length 2197
- Datalogic 2 of 5 Character Correlation198
- Datalogic 2 of 5 Stitching198
Codabar199
- Codabar Enable/Disable199
- Codabar Check Character Calculation199
- Codabar Check Character Transmission200
- Codabar Start/Stop Character Transmission200
- Codabar Start/Stop Character Set201
- Codabar Start/Stop Character Match201
- Codabar Quiet Zones202
- Codabar Minimum Reads203
- Codabar Decoding Level204
- Codabar Length Control205
- Codabar Set Length 1206
- Codabar Set Length 2207
- Codabar Interdigit Ratio208
- Codabar Character Correlation210
- Codabar Stitching210
Abc Codabar211
- ABC Codabar Enable/Disable211
- ABC Codabar Concatenation Mode211
- ABC Codabar Dynamic Concatenation Timeout212
- ABC Codabar Force Concatenation213
Code 11214
- Code 11 Enable/Disable214
- Code 11 Check Character Calculation214
- Code 11 Check Character Transmission215
- Code 11 Minimum Reads215
- Code 11 Length Control216
- Code 11 Set Length 1217
- Code 11 Set Length 2218
- Code 11 Interdigit Ratio219
- Code 11 Decoding Level221
- Code 11 Character Correlation222
- Code 11 Stitching222
Gs1 Databar™ Omnidirectional223
- GS1 Databar™ Omnidirectional Enable/Disable223
- GS1 Databar™ Omnidirectional GS1-128 Emulation223
- GS1 Databar™ Omnidirectional Minimum Reads224
Gs1 Databar™ Expanded225
- GS1 Databar™ Expanded Enable/Disable225
- GS1 Databar™ Expanded GS1-128 Emulation225
- GS1 Databar™ Expanded Minimum Reads226
- GS1 Databar™ Expanded Length Control226
- GS1 Databar™ Expanded Set Length 1227
- GS1 Databar™ Expanded Set Length 2228
- Gs1 Databar™ Limited229
Wireless Features259
- Wireless Beeper Features261
- Features for Star Models Only274
- Bluetooth-Only Features281
  - Bt Security Features282
Laser Features289
- Laser Scan Angle290
- Laser Idle Mode290
- Bi-Directional Read Decoding291
- Always on Scan Mode Timeout292
References293
- RS-232 Parameters293
  - RS-232 Only293
  - RS-232/USB COM Parameters294
- Keyboard Interface301
- Symbologies304
  - Decoding Level304
  - Set Length304
- Data Editing306
- Reading Parameters314
  - Label Gone Timeout314
  - Good Read LED Duration315
- Scanning Features316
- Display Settings320
  - Display Mode320
- RF Features320
Message Formatting325
- Cursor Control326
- Font Selection326
- Clearing Display327
- LED and Beeper Control327
- Messages from Scanner Command Keys328
Technical Specifications329
- Standard Cable Pinouts332
- LED and Beeper Indications333
- Error Codes334
- Base Station Indications (Cordless Models ONLY)335
  - Base Station Button Indicators335
Standard Defaults337
Sample Bar Codes349
Keypad353
Scancode Tables357
- Control Character Emulation357
  - Single Press and Release Keys357
- Interface Type PC at PS/2, USB-Keyboard or USB-Keyboard for APPLE358
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode360
- Digital Interface362
- Ibm31Xx 102-Key363
- Ibm Xt364
- Microsoft Windows Codepage 1252365
Index367
- Ascii Chart369
