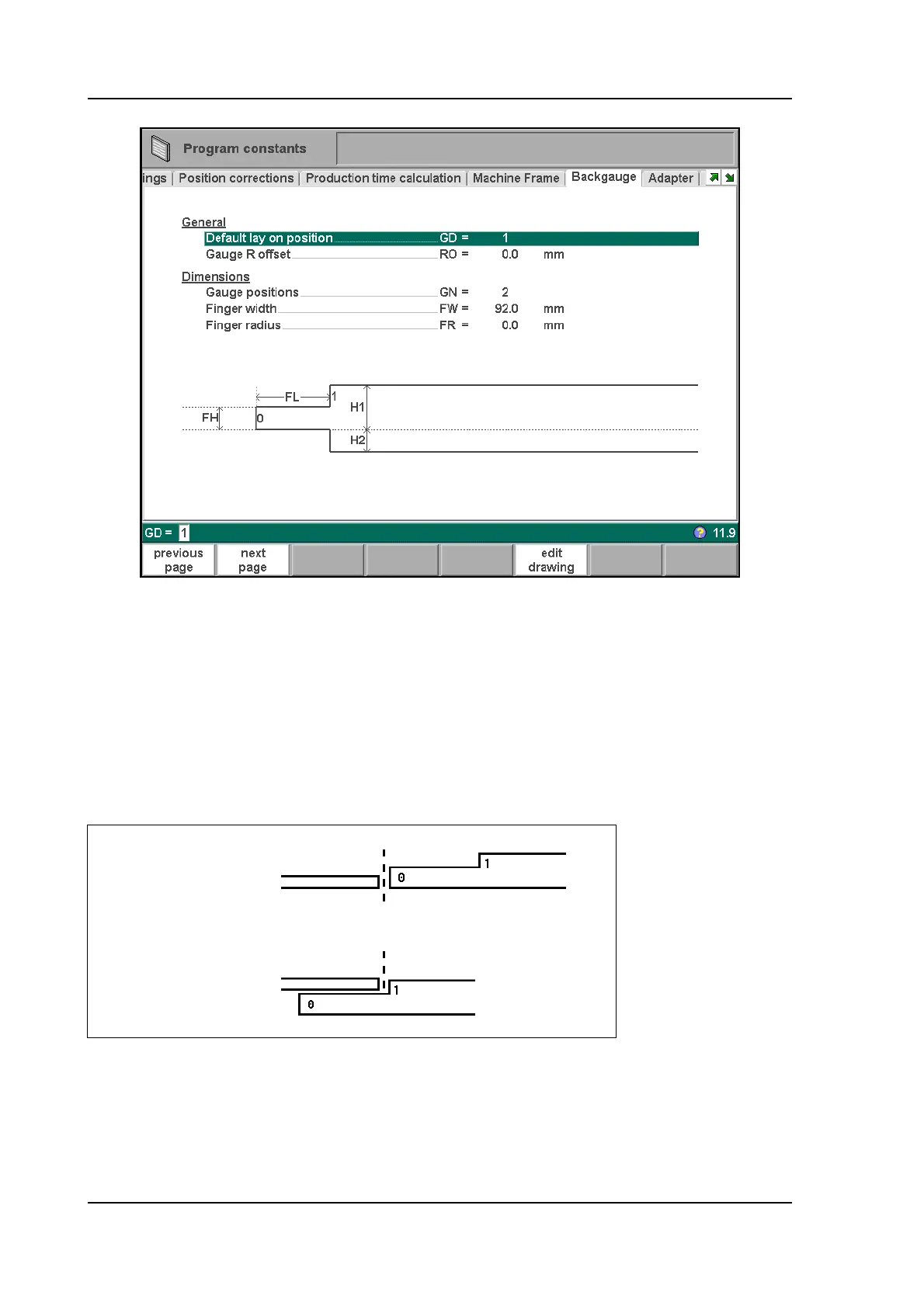

Gauge positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GN
The number of possible gauge positions (max. 4). When this parameter is changed, a
new pop-up window with finger geometry appears. There the finger dimensions can be
programmed.
Default lay on position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GD
This is the default lay-on position in case a lay-on position must be used during
automatic bend sequence computation.
Meaning of different lay-on numbers:
Gauge R offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RO
An offset value for the R-axis can be set if the back gauge is positioned against the
Lay-on = 0
Lay-on = 1
