V1108, 8.19
sheet edge and the X-axis position is outside the die safety zone.
8.q

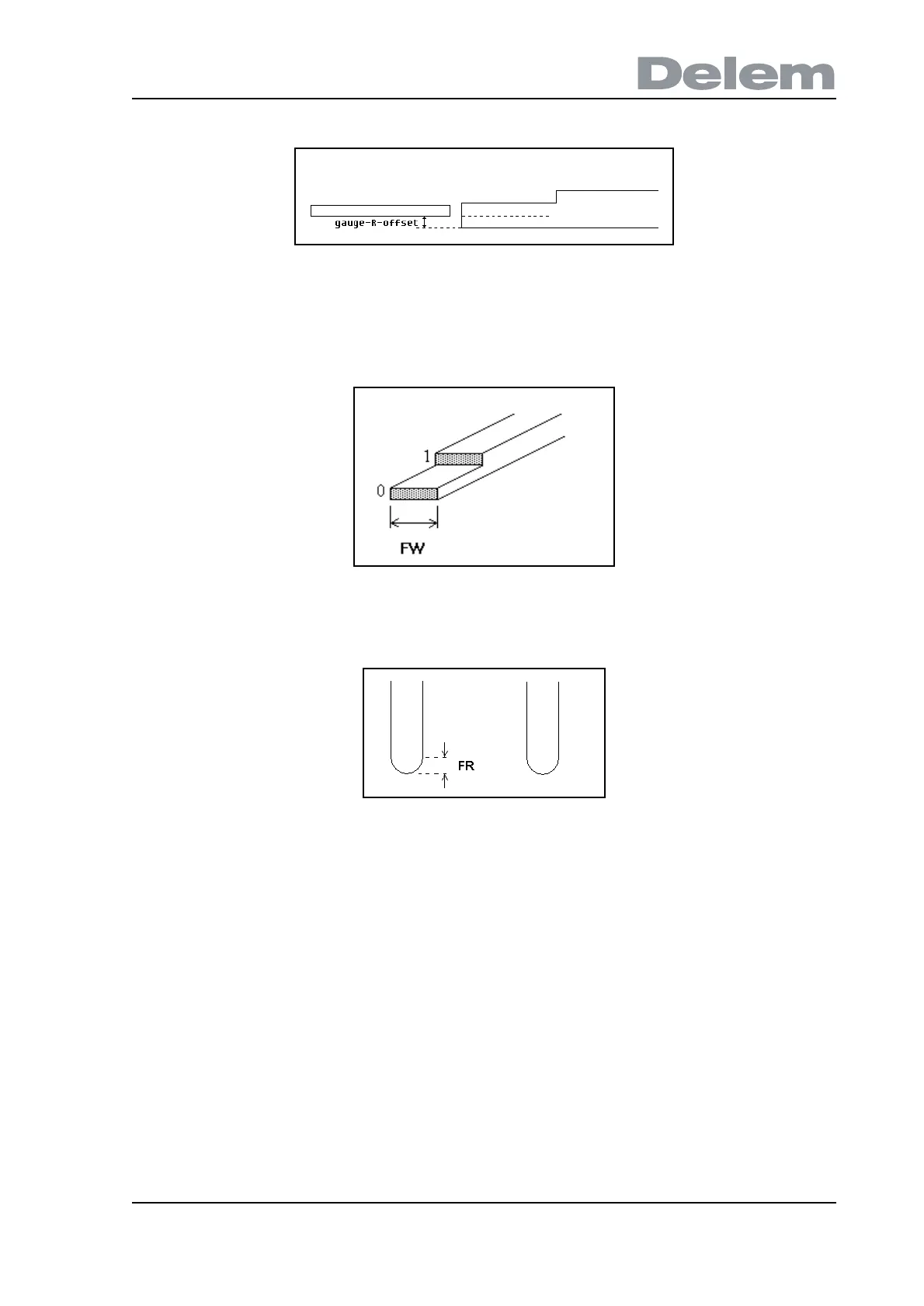

A negative value gives a lower back gauge position. This offset is only valid for gauge
position 0.
Finger width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..FW
The width of the back gauge finger.
8.r
Finger radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..FR
The radius of the back gauge finger.
8.s
When the function key ‘edit drawing’ has been pressed, a new window appears wherein the
dimensions of the back gauge finger can be programmed.
