Chapter 7 Optional AccessoriesMH300

7-36

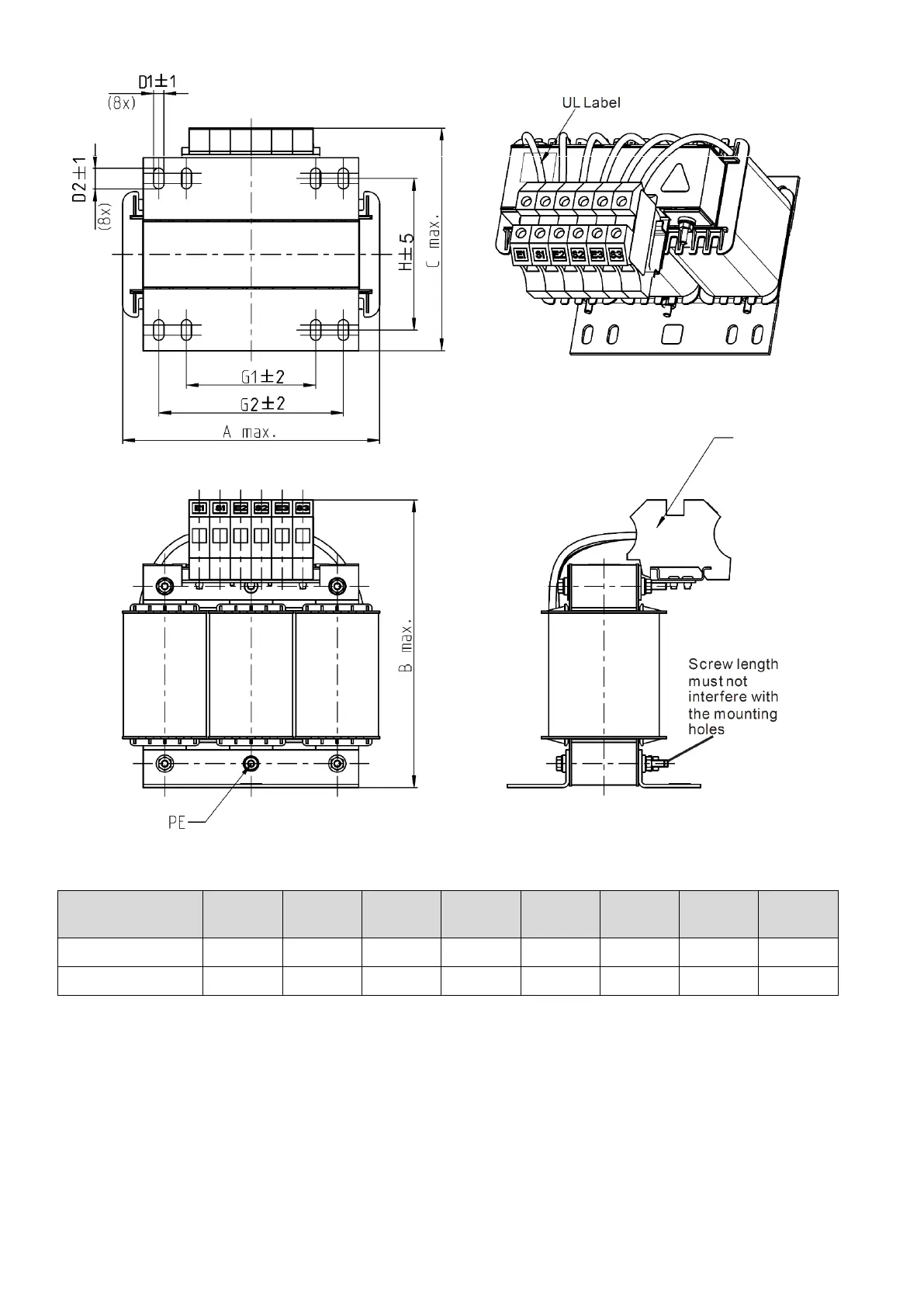

Fig. 7-24

Unit: mm

Delta’s Part No. -

AC Output Reactor

A B C D1*D2 H G1 G2 PE

DR038LP639 180 205 170 6*12 115 85 122 M4

DR045LP541 235 245 150 7*13 85 / 176 M6

Table 7-42

Terminals 16 mm

Torque: 12.2–14.3 kg-cm / [10.6–12.4 lb-in] /

[1.2–1.4 Nm]
