Chapter 8 Option CardsMH300
8-25
8-8 EMM-R3AA -- Relay Output Extension (3-point N.O. Output Terminal)

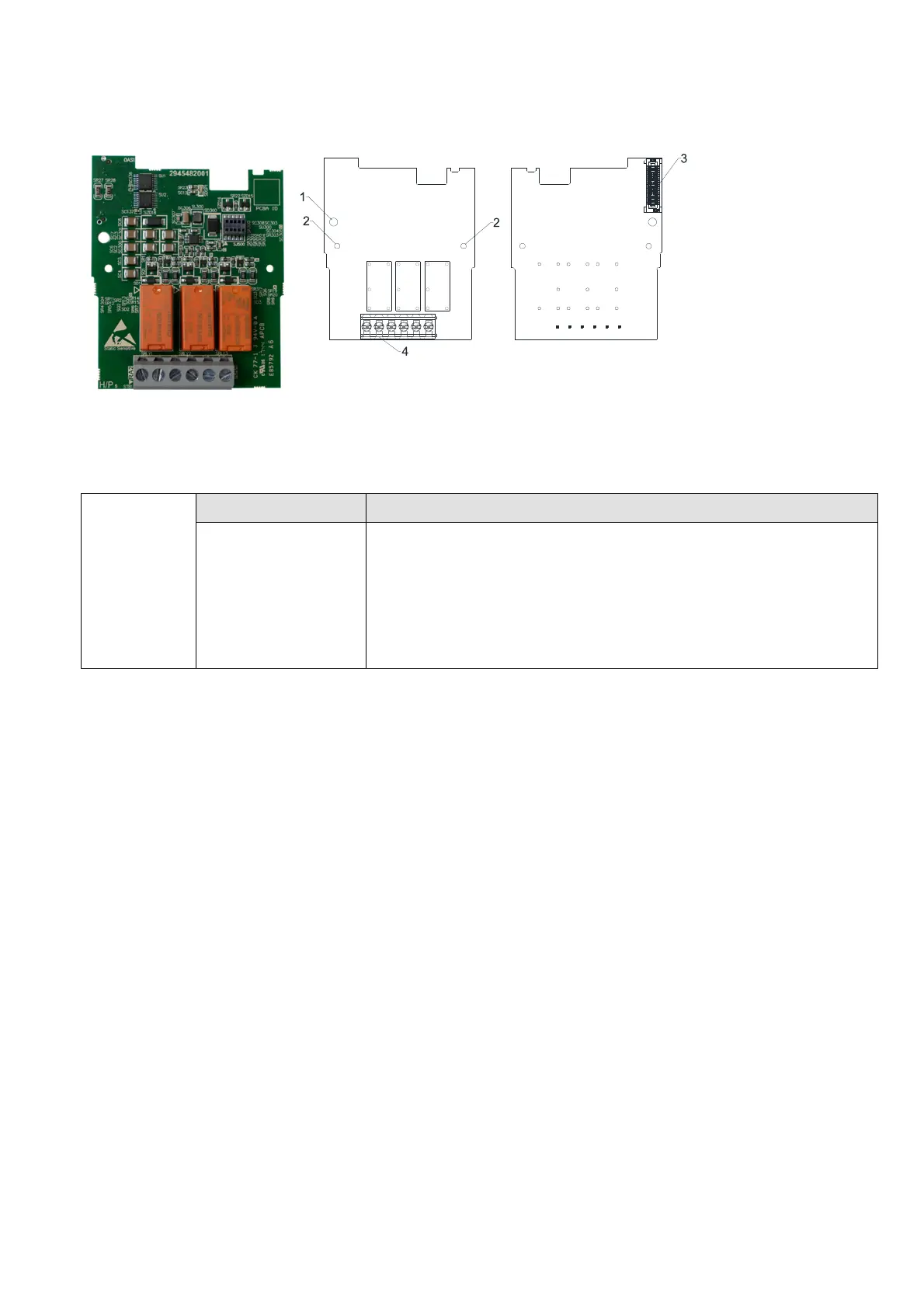

8-8-1 Product Profile
Figure 8-67
Figure 8-68
Wire: 0.25–1.5 mm
2
/ (24–16 AWG)
Stripping length: 6 mm
Torque: 5 kg-cm / (4.3 Ib-in.) / (0.49 Nm)
1. Screw fixing hole
2. Pos
itioning hole
3.
AC motor drive
co
nnection port
4. Terminal block
Relay
Extension
Card
Terminals Descriptions
RA10–RA12
RC10–RC12
Refer to Pr.02-36–Pr.02-38 to program the multi-function.
Resistive load:
6 A (N.O.) / 250
V
AC
Function: outputs the monitor signals, such as drive in operation,
frequency reached, or overload indication.
Table 8-13
