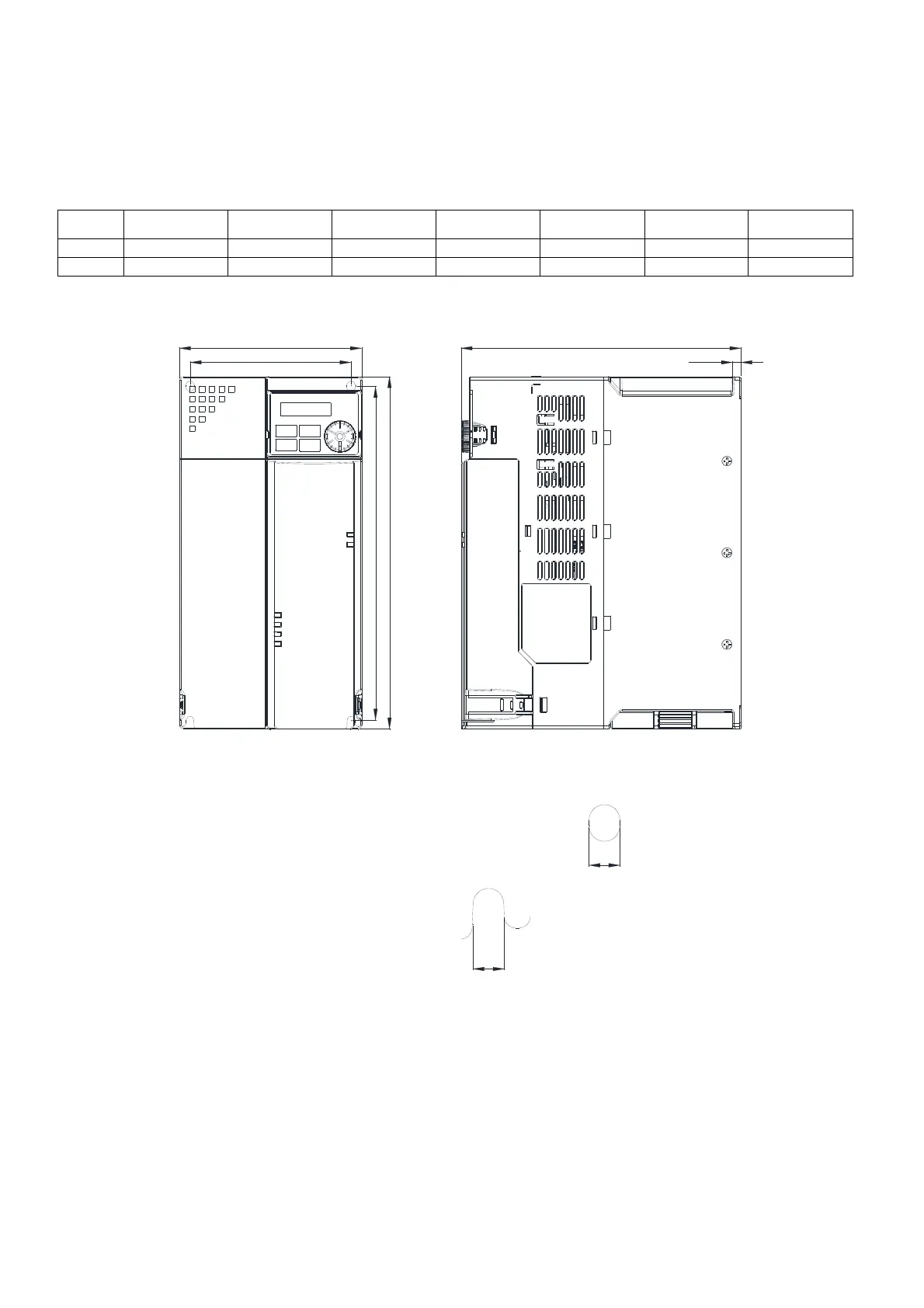

Chapter 2 DimensionsMH300

2-6

2-5 Frame E

E1: VFD33AMH23ANSAA; VFD33AMH23ENSAA; VFD49AMH23ANSAA; VFD49AMH23ENSAA;

VFD25AMH43ANSAA; VFD25AMH43ENSAA; VFD32AMH43ANSAA; VFD32AMH43ENSAA

E2: VFD25AMH43AFSAA; VFD32AMH43AFSAA

Unit: mm (inch)

Frame W H D W1 H1 D1 S1

E1 130.0 (5.12) 250.0 (9.84) 200.0 (7.87) 115.0 (4.53) 236.8 (9.32) 6.0 (0.24) 5.5 (0.22)

E2 130.0 (5.12) 250.0 (9.84) 234.0 (9.21) 115.0 (4.53) 236.8 (9.32) 6.0 (0.24) 5.5 (0.22)

Mounting Hole
