Chapter 8 Option CardsMH300
8-35
8-12 CMM-EIP03 -- Communication Extension Card, (Dual-port) EtherNet/IP, Modbus-TCP

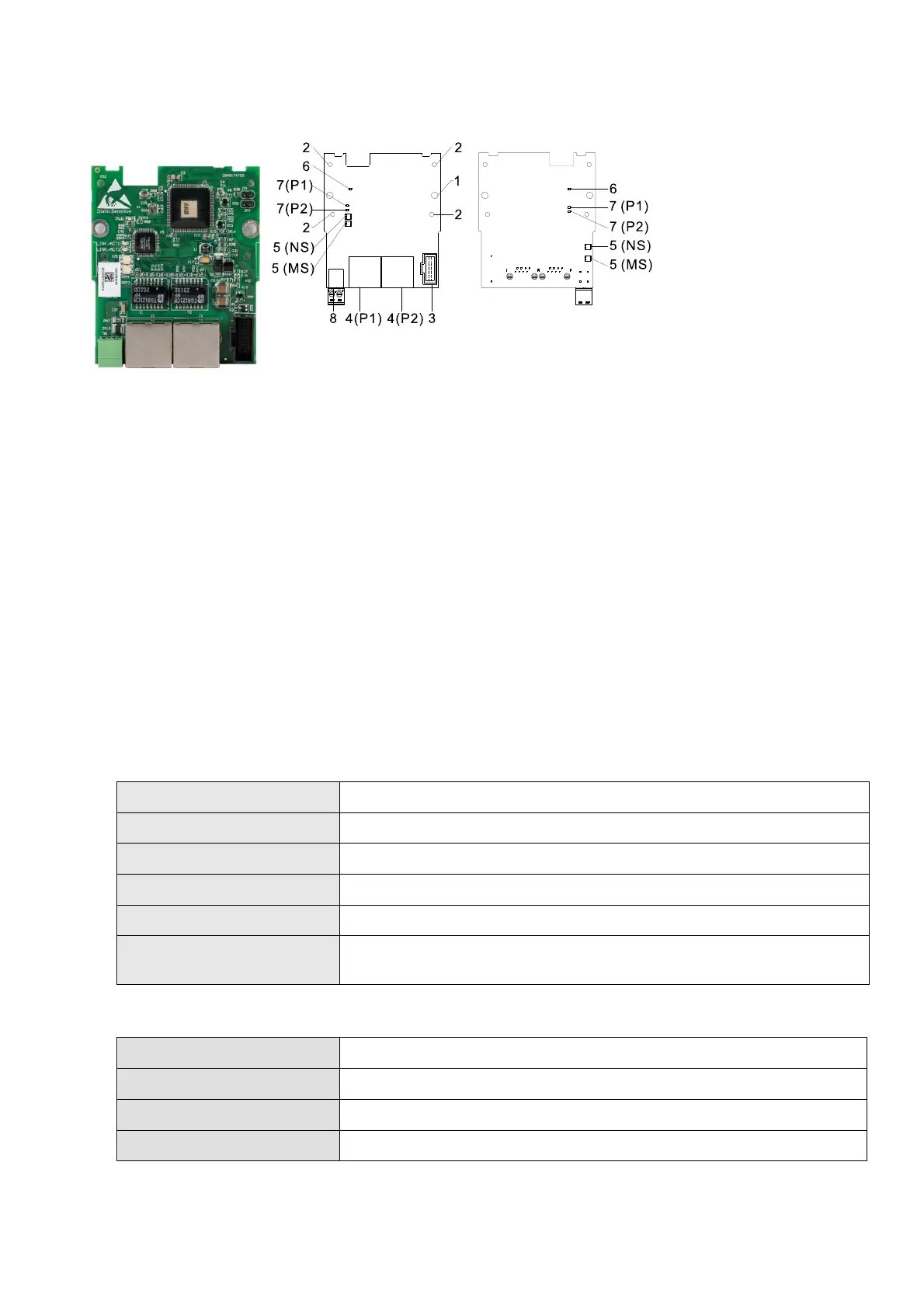

8-12-1 Product Profile
Figure 8-81
Figure 8-82
Wire: 0.25–0.5 mm
2
/ (24–20 AWG)
Stripping length: 7–8 mm
Torque: 2 kg-cm / (1.7 Ib-in.) / (0.2 Nm)
1. Screw fixing hole
2. Positioning hole
3. AC motor drive connection
port
4. Communication Port: P1
(PORT 1), P2 (PORT 2)
5. Indicator lights: NS, MS
6. Indicator light of POWER
7. Indicator light of LINK: P1
(PORT 1), P2 (PORT 2)
8. Ground terminal block
8-12-2 Features
1. Supports Modbus TCP and EtherNet/IP protocol
2. 32 / 32 words read / writ
e parameters correspondence
3. User-defined corresponding parameters
4. MDI / MDI-X auto-detect
5. E-mail alarm
6.
IP Filter simple firewall f
unction
8-12-3 Specifications
Network Interface
Interface
RJ45 with Auto MDI / MDIX
Number of ports
2 Ports
Transmission method
IEEE 802.3, IEEE 802.3u
Transmission cable
Category 5e shielding 100 M
Transmission speed
10/100 Mbps Auto-Detect
Network protocol
ICMP, IP, TCP, UDP, DHCP, HTTP, SMTP, Modbus TCP, EtherNet/IP, Delta
Configuration
Table 8-29
Electrical Specification
Weight
30 g
Insulation voltage
500 V
DC
Power consumption
1.3 W
Power supply voltage
15 V
DC
Table 8-30
