Delta MH300 Series - 12 Tension Control Parameters

Chapter 12 Description of Parameter Settings
MH300
12.1-12-1
12 Tension Control Parameters
 Y
ou can set this parameter during operation.
12-00
Tension Control Selection
Default: 0
Settings
0: Disabled
1: Closed-loop tension, speed mode
2: Closed-loop linear speed, speed mode
3: Closed-loop tension, torque mode
4: Open-loop tension, torque mode
 The table below shows the control modes applicable to each setting value:
Control mode
Setting value
VF SVC FOC TQC
0: Disabled
1: Closed-loop tension, speed mode
○
○
○
2: Closed-loop linear speed, speed mode
○
○
○
3: Closed-loop tension, torque mode
○
4: Open-loop tension, torque mode
○
 See the following pages for the instructions of each setting value:
 Set
ting value 1: Closed-loop tension, speed mode

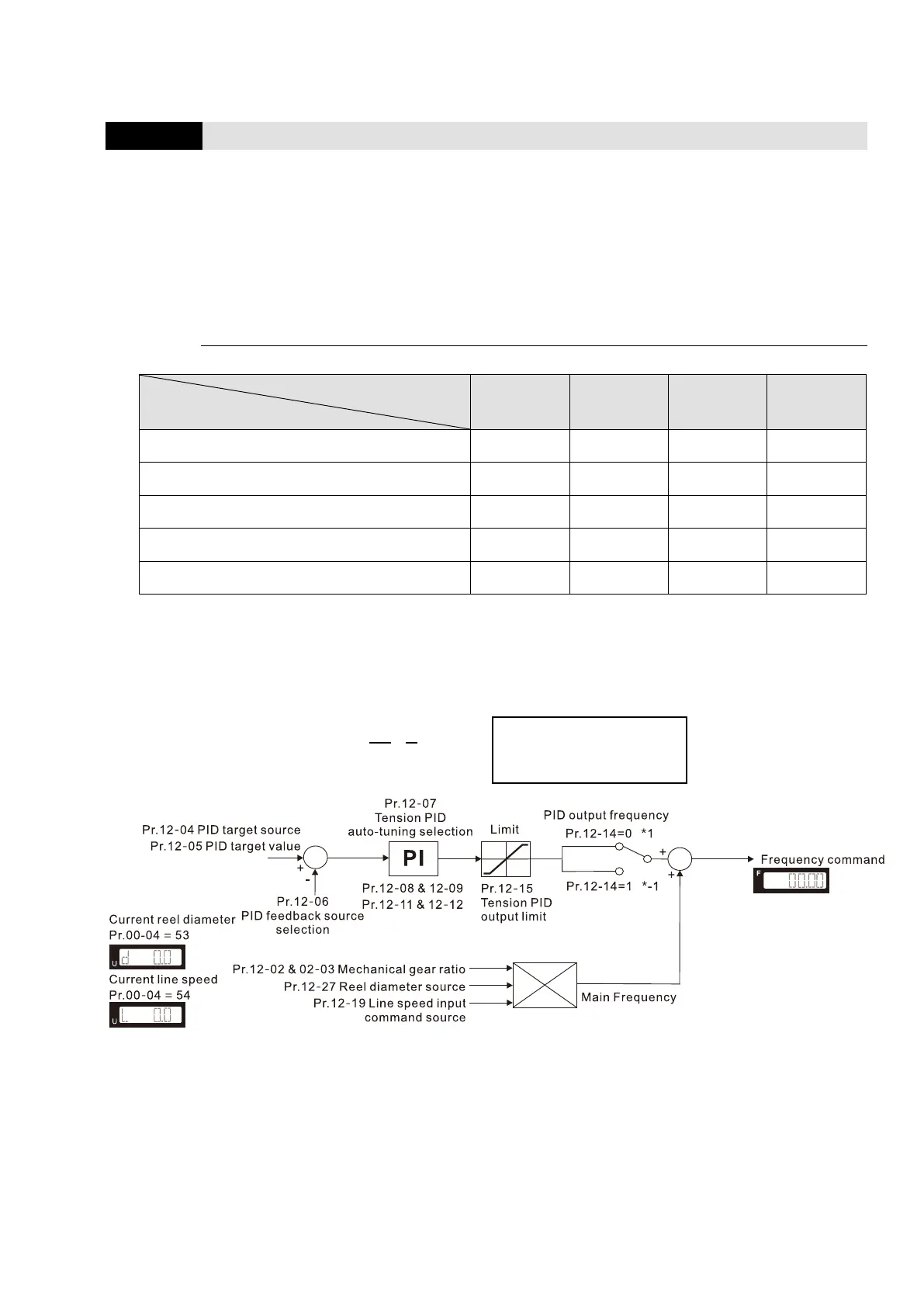

The calculation of the main frequency in tension control:

(

)
=


∙


V
: Linear speed (m/min.)
D: Reel diameter (m)
A/B: Mechanical gear ratio
