Delta MH300 Series - 8-9 EMM-BPS02 - +24 V Power Extension Card

Chapter 8 Option CardsMH300
8-26
8-9 EMM-BPS02 -- +24V Power Extension Card

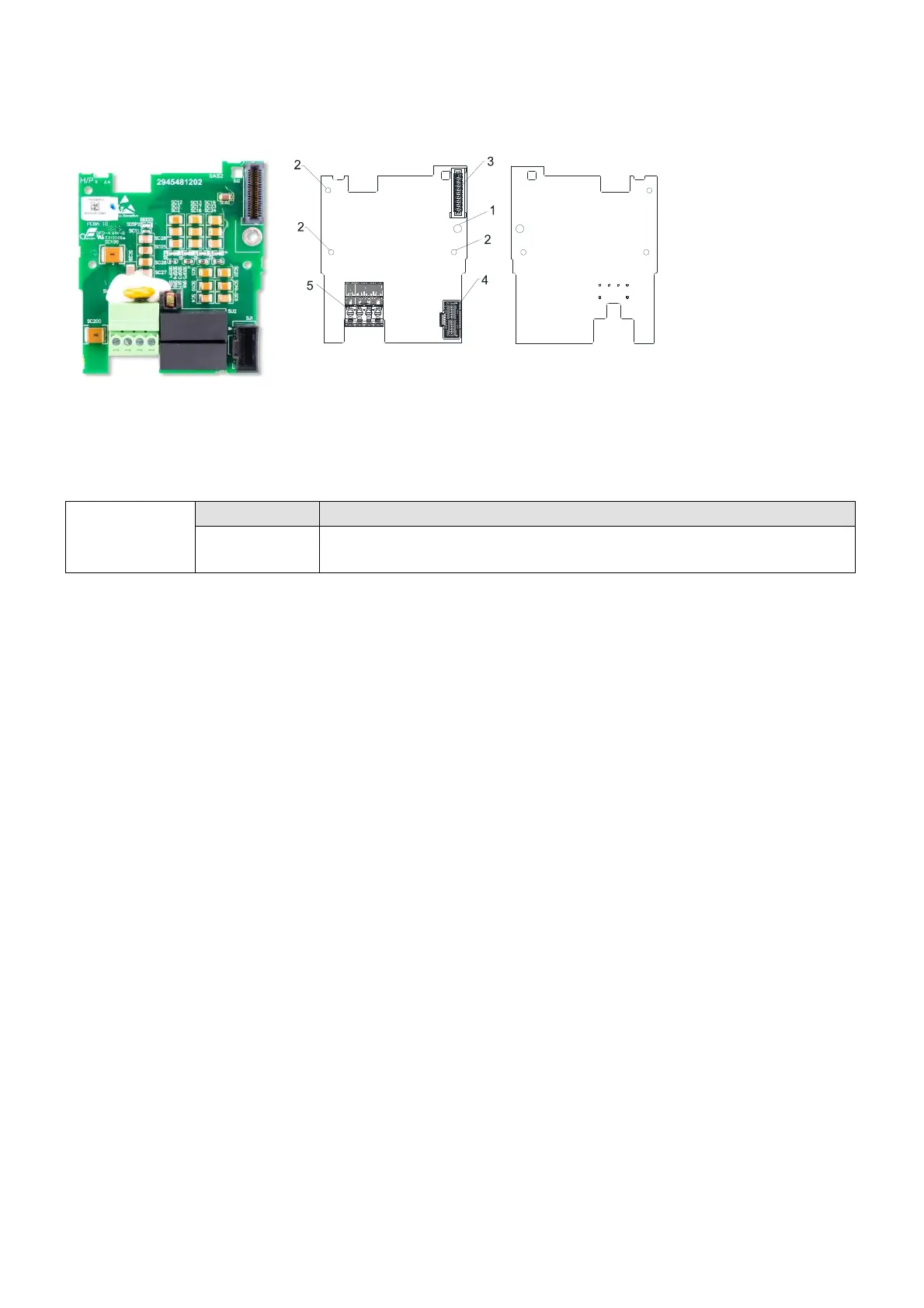

8-9-1 Product Profile
Figure 8-69
Figure 8-70
Wire: 0.25–0.5 mm
2
/ (24–20 AWG)
Stripping length: 7–8 mm
Torque: 2 kg-cm / (1.7 Ib-in.) / (0.2 Nm)
1. Screw fixing hole
2. Positionin
g hole
3. AC motor drive
connection port (Refer
to subsection 8-1-2 for
installation)
4.
AC motor dr
ive
connection port (Refer
to subsection 8-1-4 for
installation)
5.
+24 V terminal block
Extra 24V
Power Card
Terminal Description
24V GND
Input power: 24 V ±5%
Maximum input current: 0.5 A
Table 8-14
8-9-2 Features
1. Provides external power supply.
2. Supports external 24 V
DC
input.
3. Supports reading and writing parameters and status monitoring of the drive.
8-9-3 Specifications
When the drive is only powered by the EMM-BPS02, communication re
mains normal, including
support for all communication cards and the following functions:
 Reading and writing parameters
 Display with keypad
 Keypad buttons (except the RUN button)
 Analog input with +10 V terminal to supply power
 Multi-input (MI1–MI7) with +24 V terminal or external power supply
 Relay output
 Pulse sequence (MI6, MI7) frequency command
The following functions are not supported:
 DFM digital frequency signal output
 AFM multi-function analog voltage output
 PLC functions
