Chapter 2 DimensionsMH300

2-10

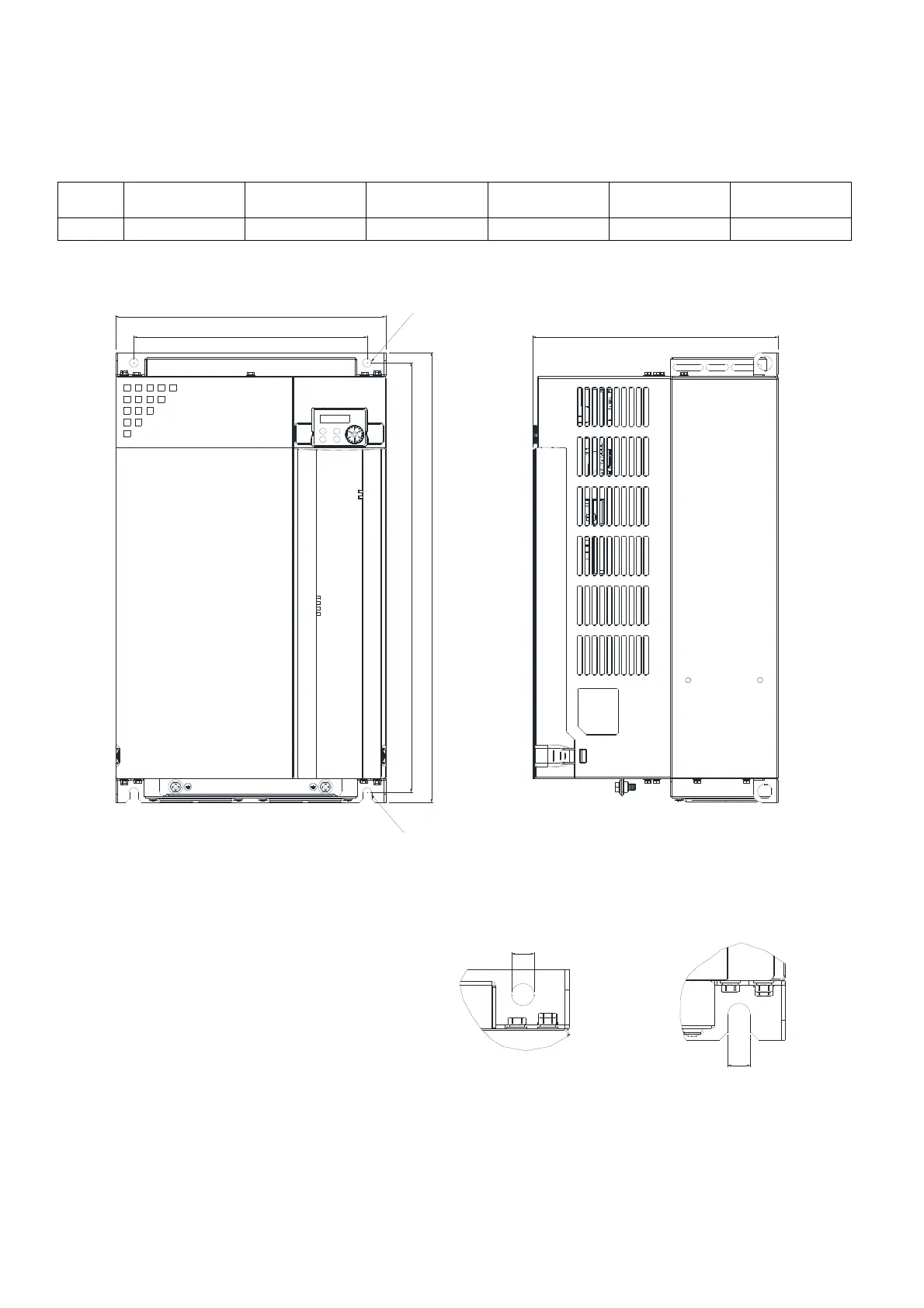

2-9 Frame I

I: VFD112MH43AFSAA; VFD112MH43ANSAA; VFD120MH23ANSAA; VFD146MH23ANSAA;

VFD150MH43AFSAA; VFD150MH43ANSAA

Unit: mm (inch)

ame W H D

W1 H1

I 330.0 (12.99) 550.0 (21.65) 300.0 (11.81) 285.0 (11.22) 525.0 (20.67) 11.0 (0.43)

DETAIL A

(MOUNTING HOLE)

DETAIL B

(MOUNTING HOLE)

SEE DETAIL A

SEE DETAIL B
