Chapter 7 Optional AccessoriesMH300
7-43
7-5 Zero-phase Reactors
You c
an also suppress interference by installing a zero-phase reactor at the main input or the motor
output of the drive, depending on the location of the interference. Delta provides two types of zero-phase
reactors to solve interference problems.

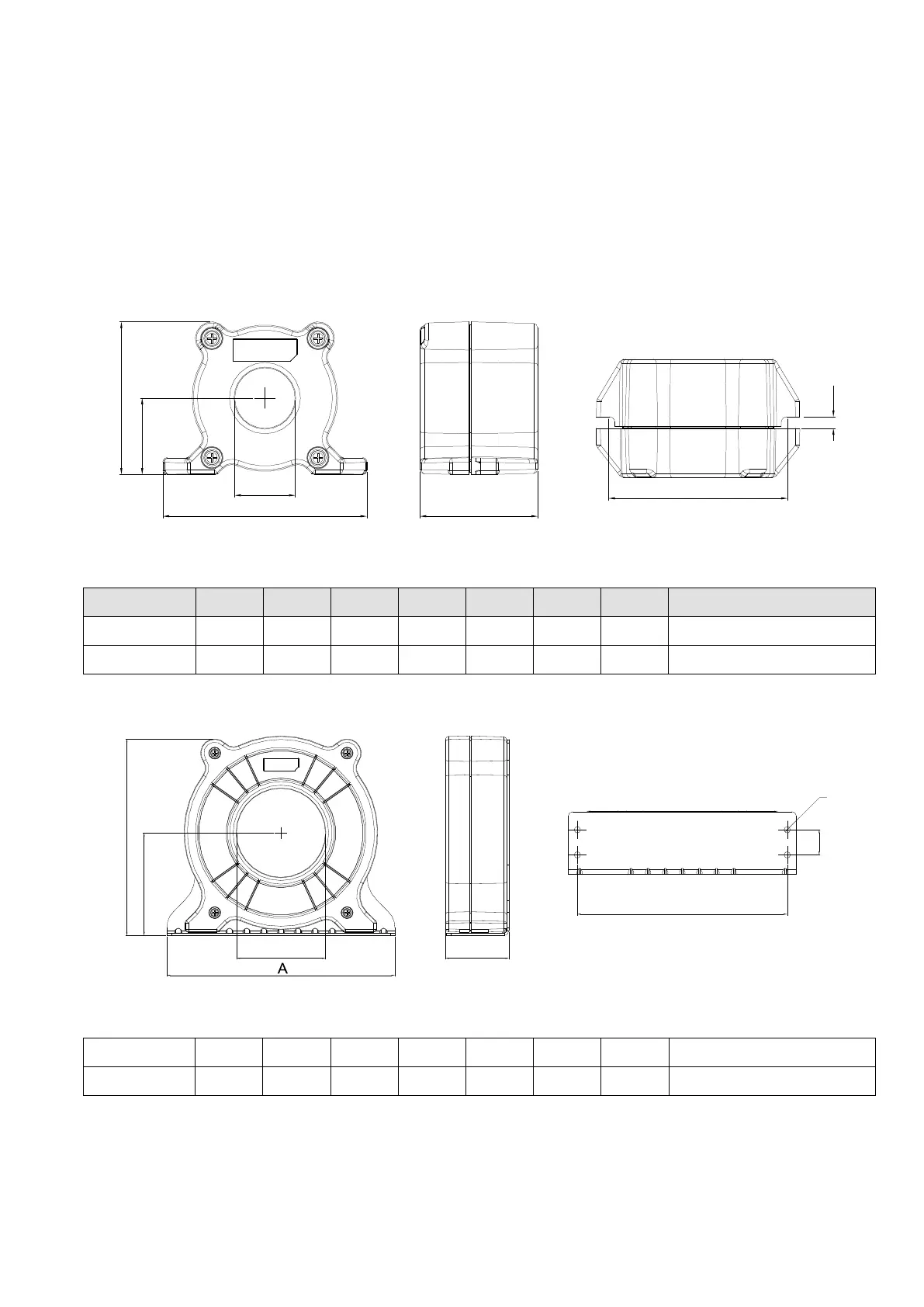

A. Casing with mechanical fixed part
This solution is for the main input / motor output side and can withstand higher loading, and be used
at higher frequencies. You can get higher impedance by increasing the number of turns.
Fig. 7-28
Unit: mm
Model A B C D E F G (Ø) Purpose
RF008X00A 99 73 36.5 29 56.5 86 5.5 To use with motor cable
RF004X00A 110 87.5 43.5 36 53 96 5.5 To use with motor cable
Table 7-50
Fig. 7-29
Unit: mm
Model A B C D E F G (Ø)
Purpose
RF002X00A 200 172.5 90 78 55.5 184 5.5 To use with motor cable
Table 7-51
A
D
C
B
E
G
F
D
B
C
E
F
H
G
