Chapter 2 DimensionsMH300

2-8

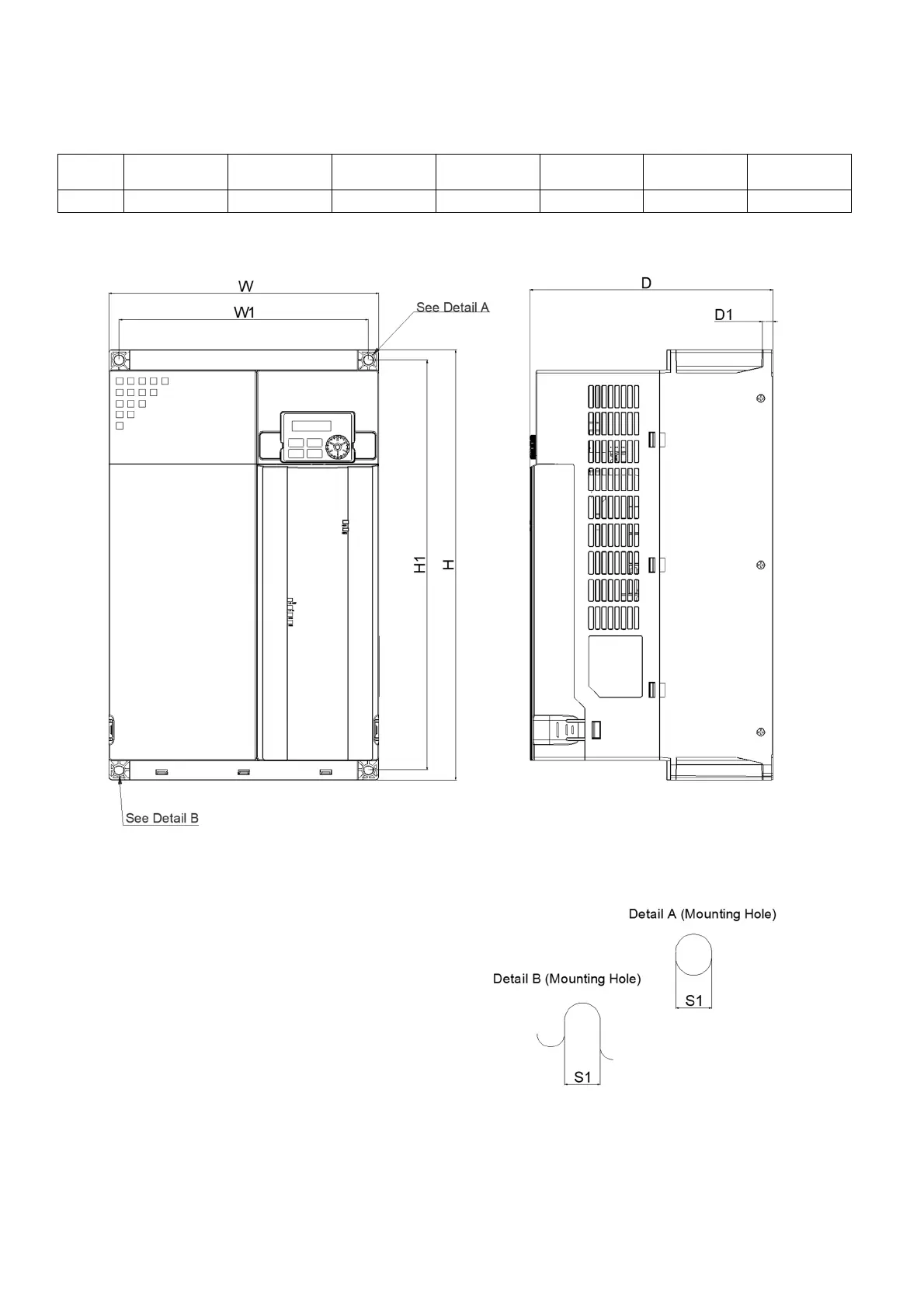

2-7 Frame G

G: VFD60AMH43AFSAA; VFD60AMH43ANSAA; VFD75AMH23ANSAA; VFD90AMH23ANSAA

Unit: mm (inch)

Frame W H D W1 H1 D1 S1

G 250.0 (9.84) 400.0 (15.75) 225.0 (8.86) 231.0 (9.09) 381.0 (15.00) 10.0 (0.39) 8.5 (0.33)
