Delta MH300 Series - 8-7 EMM-R2 CA - Relay Output Extension (2-point N.C. Output Terminal)

Chapter 8 Option CardsMH300
8-24
8-7 EMM-R2CA -- Relay Output Extension (2-point N.C. Output Terminal)

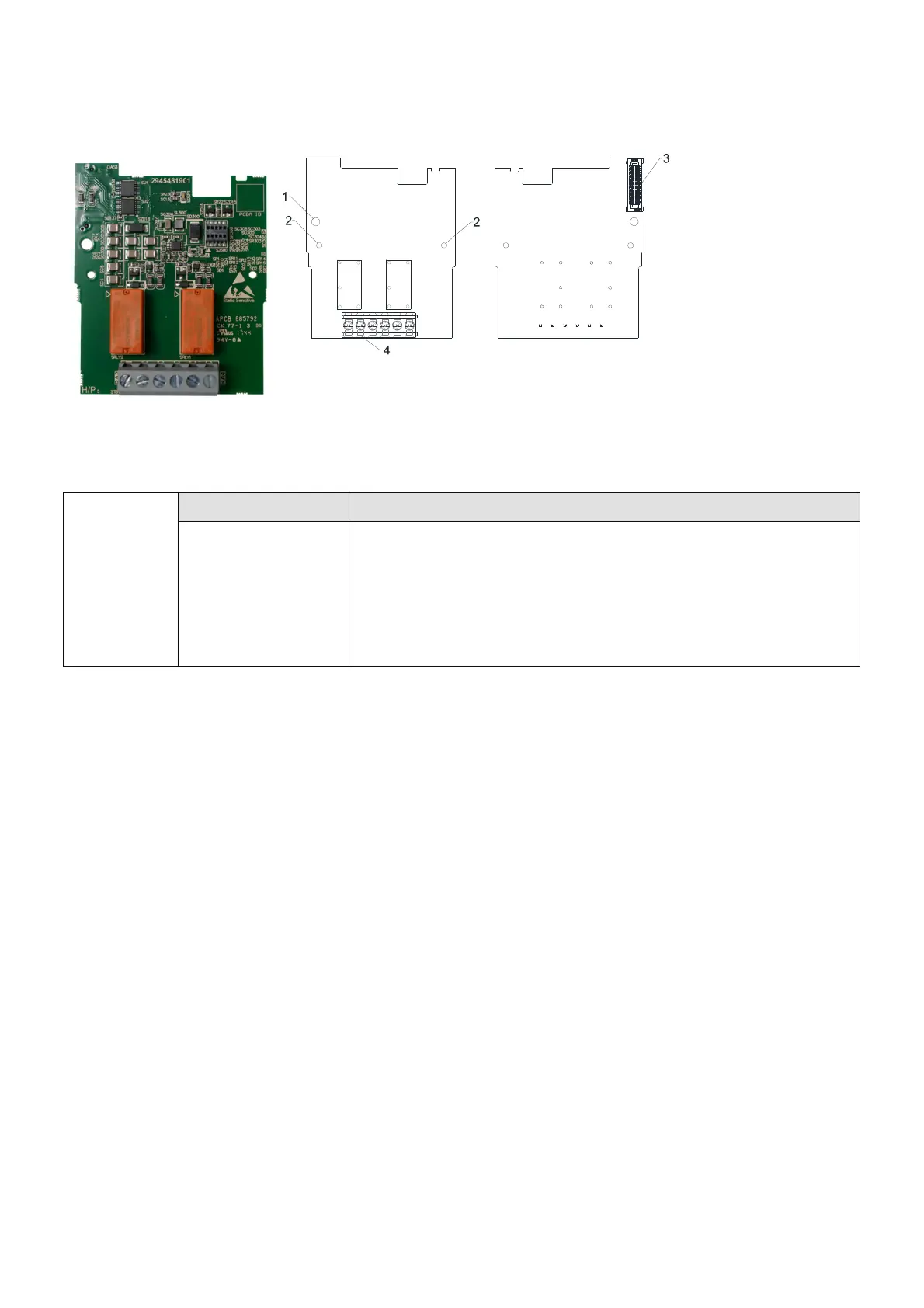

8-7-1 Product Profile
Figure 8-65
Figure 8-66
Wire: 0.25–1.5 mm
2
/ (24–16 AWG)
Stripping length: 6 mm
Torque: 5 kg-cm / (4.3 Ib-in.) / (0.49 Nm)
1. Screw fixing hole
2. Positioning hole
3. AC motor drive
connection port
4. T
e
rminal bloc
k
Relay
Extension
Card
Terminals Descriptions
RA10–RA11
RB10–RB11
RC10–RC11
Refer to Pr.02-36–Pr.02-37 to program the multi-function
Resistive load:
5 A (N.O.) / 240
V
AC
Function: outputs the monitor signals, such as drive in operation,
frequency reached, or overload indication.
Table 8-12
