Chapter 5 Main Circuit TerminalsMH300

5-4

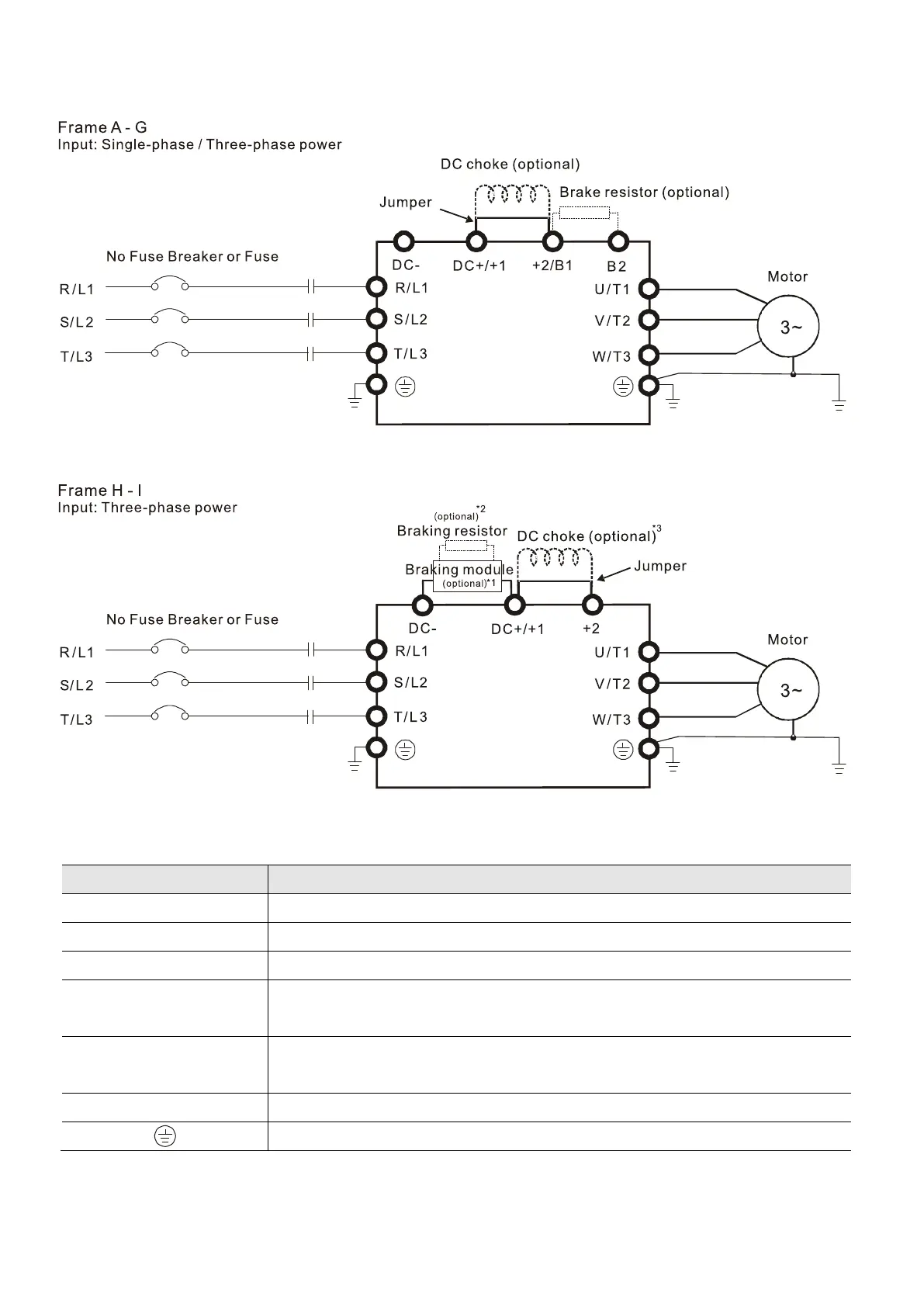

5-1 Main Circuit Diagram

Terminals Descriptions

R/L1, S/L2 Mains input terminals one-phase

R/L1, S/L2, T/L3 Mains input terminals three-phase

U/T1, V/T2, W/T3 Motor output terminals for connecting three-phase

IM and PM motors

+1, +2

Connections for DC reactor to improve the power factor and harmonics.

Remove the jumper when using a DC reactor.

DC+, DC-

Connections for brake unit (VFDB series)

Common DC bus

B1, B2 Connections for brake resistor (optional)

Ground connection, comply with local regulations.
